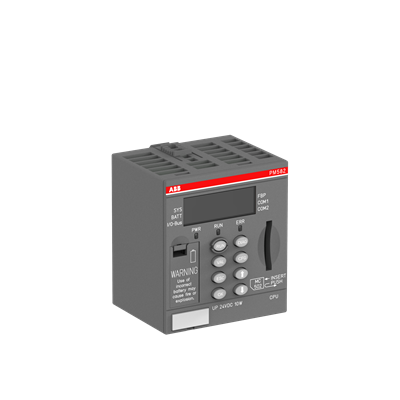

The PM582 is a core processor module within the ABB AC500 platform, engineered for distributed automation tasks requiring robust computation and versatile communication. This CPU combines a 512 kB user program memory with an additional 416 kB user data memory (RAM), delivering exceptional performance for mid-to-large scale control systems. Its dual RS232/485 interfaces and integrated FieldBusPlug (FBP) port enable seamless connection to remote I/O, drives, and legacy serial devices, while the on-board LCD display provides real-time operational feedback. Powered by 24 V DC (20.4–28.8 V range), the PM582 is built for reliable, high-speed execution in industrial environments.
| Parameter |
Value |
| Product Type |
PM582 AC500 Processor Module |
| Function |
Memory 512 kB user program, 416 kB user data (RAM), LCD display, 2x RS232/485, FBP |
| Memory Size – Total |
928 kB |
| Memory Size – User Program |
512 kB |
| Memory Size – User Data |
416 kB |
| Memory Type – User Data |
RAM |
| Controller Processing Time |
0.00005 ms |
| Communication Interfaces |
2x RS232/485 (Serial), 1x FieldBusPlug (FBP) |
| Number of Hardware Interfaces – Industrial Ethernet |
0 |
| Number of Hardware Interfaces – RS-232 |
0 (via serial multi-protocol ports) |
| Number of Hardware Interfaces – RS-485 |
0 (via serial multi-protocol ports) |
| Number of Hardware Interfaces – Other |
2 (serial) |
| Number of Digital Configurable I/Os |
0 (external I/O via FBP) |
| Display Type |
LCD |
| Degree of Protection |
IP20 |
| Rated Voltage (Ur) |
24 V DC |
| Supply Voltage Range |
20.4 … 28.8 V DC |
| Product Net Weight |
0.134 kg |
| Product Net Depth / Length |
62 mm |
| Product Net Height |
76 mm |
| Product Net Width |
67.5 mm |
| Gross Weight (packaged) |
0.158 kg |
| Package Level 1 Dimensions (L x W x H) |
84 mm x 71 mm x 72 mm |
| Package Level 1 Units |
1 carton |
| Minimum Order Quantity |
1 piece |
| Order Multiple |
1 piece |
| Selling Unit of Measure |
piece |
| Made To Order |
No |
| Product Main Type |
PM582 |
| Product Name |
Distributed Automation PLCs |
| eClass |
27-24-22-07 |
| ETIM 8 |
EC000236 – PLC CPU-module |
| UNSPSC |
32151705 |
| SCIP |
db0f0592-ccdc-4b06-a79f-acd6c1b6dad6 Germany (DE) |
| WEEE B2C / B2B |
Business To Business |
| WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
| CN8 Customs Code |
85389091 |
