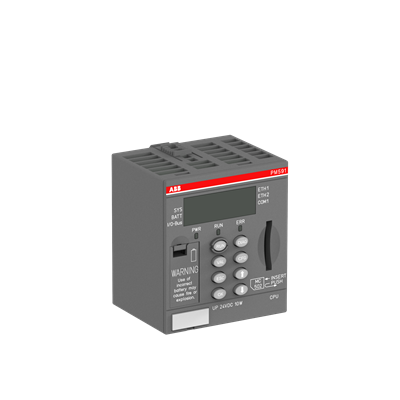

ABB PM591-ARCNET-V14x AC500 Programmable Logic Controller

ABB PM591-ARCNET-V14x AC500 Programmable Logic Controller

Series#: ABB

Product Details

High-Performance PM591-ARCNET-V14X AC500 Programmable Logic Controller for Distributed Automation.
Integrated ARCNET interface for high-speed deterministic network communication.
Large memory capacity: 4096 kB user program & 3584 kB user data on Flash EPROM.
Compact IP20 design, net weight only 0.16 kg, ideal for space-constrained cabinets.
Wide operating temperature range: 0°C to +60°C; storage -40°C to +70°C.
Supports Serial, FBP, and ARCNET communication protocols for flexible integration.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

WhatsApp Inquiry

Specification

Datasheet (PDF)

The PM591-ARCNET-V14X AC500 Programmable Logic Controller is a robust and scalable solution designed for demanding distributed automation applications. Part of the AC500 platform, this controller features an integrated ARCNET interface that enables high-speed, real-time data exchange in ring or star topologies, making it ideal for complex manufacturing lines and process control systems. With a generous 4096 kB program memory and 3584 kB data memory stored in reliable Flash EPROM, it can handle sophisticated control algorithms and extensive data logging without external expansion. The unit operates on a 24 V DC supply, ensuring compatibility with standard industrial power systems. Its IP20-rated housing and compact dimensions (67.5 x 76 x 62 mm) allow for easy mounting in control panels. The PM591-ARCNET-V14X is engineered for long-term reliability and seamless integration with I/O modules and fieldbus devices, supported by a wide ambient temperature range from 0°C to +60°C during operation.

Parameter	Specification
Product Type	PM591-ARCNET-V14X AC500 Programmable Logic Controller
Product Main Type	PM591
Product Name	Distributed Automation PLCs
Supply Voltage	24 V DC
Display Type	LCD
Communication Interface	Serial / FBP / ARCNET
Memory Size User Program	4096 kB
Memory Size User Data	3584 kB
Memory Type User Data	Flash EPROM
Degree of Protection	IP20
Operating Ambient Air Temperature	0°C ... +60°C
Storage Ambient Air Temperature	-40°C ... +70°C
Product Net Weight	0.16 kg
Product Net Depth / Length	62 mm
Product Net Height	76 mm
Product Net Width	67.5 mm
Gross Weight	0.22 kg
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece
Made To Order	No
CN8 Code	85389091
eClass (V11)	27-24-22-07
UNSPSC	32151705
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
