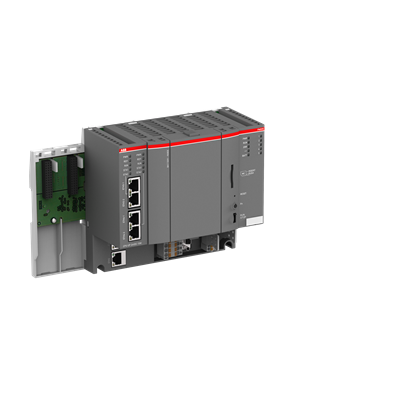

The ABB PM595-4ETH-F AC500 Processor Module is a flagship CPU in the AC500 platform, engineered for demanding distributed automation systems. This module combines substantial memory—16 MB for program and 16 MB for data—with an exceptional processing speed of 0.0000006 ms per binary instruction, enabling high-speed logic and motion control. Its versatile connectivity includes four Industrial Ethernet ports (two of which feature an integrated switch for line/tree topologies) and two RS232/485 serial ports, plus two expansion slots for CM couplers to integrate PROFIBUS, CANopen, or other fieldbus networks. Operating on a 24 V DC supply (20.4–28.8 V DC), the PM595-4ETH-F is built for reliability in harsh conditions with IP20 protection. It is classified as a PLC CPU module (ETIM EC000236) and supports the full AC500 I/O ecosystem.
| Specification |
Details |
| Product Type |
AC500 Processor Module |
| Model |
PM595-4ETH-F |
| Program Memory |
16 MB (RAM) |
| Data Memory |
16 MB (RAM) |
| Total Memory Size |
32,768 kB |
| Memory Type (User Data) |
RAM |
| Processing Time (Binary) |
0.0000006 ms |
| Ethernet Interfaces |
4 x Industrial Ethernet (2 with integrated switch) |
| Serial Interfaces |
2 x RS232/485 |
| Coupler Slots (CM) |
2 |
| Digital Configurable I/Os |
0 (via expansion modules) |
| Rated Voltage (Ur) |
24 V DC |
| Supply Voltage Range |
20.4 … 28.8 V DC |
| Degree of Protection |
IP20 |
| Product Net Weight |
1.045 kg |
| Dimensions (W x H x D) |
228 mm x 152 mm x 92 mm |
| Package Level 1 Dimensions (L x W x H) |
273 mm x 123 mm x 173 mm |
| Gross Weight |
1.23 kg |
| Minimum Order Quantity |
1 piece |
| Selling Unit |
Piece |
| eClass (V11) |
27-24-22-07 |
| ETIM 8 Class |
EC000236 - PLC CPU-module |
| UNSPSC |
32151705 |
| SCIP Number |
1877dff4-e387-4145-b0b3-1849a87cdf2a (DE) |
| WEEE Category |
5. Small Equipment (≤50 cm) |
| Country of Origin |
Germany (DE) |
