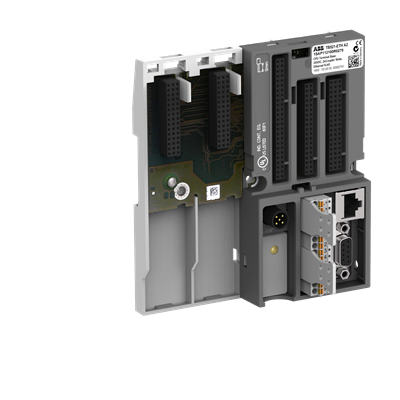

The TB521-ETH AC500 Terminal Base is a foundational component for building high-performance distributed automation systems with the ABB AC500 V2 platform. Designed to host a controller and provide dedicated slots for communication modules, this terminal base integrates an Ethernet interface alongside two serial ports (RS232/RS485), making it an essential hub for connecting field devices, drives, and higher-level networks. Its rugged construction and IP20 rating ensure reliable operation in demanding industrial environments, while its compact footprint simplifies panel layout and wiring. Whether used as a standalone base or as part of a pre-configured controller kit, the TB521-ETH delivers the flexibility and performance required for modern automation tasks.
| Specification |
Details |
| Product Type |
Terminal Base for AC500 V2 |
| Model |
TB521-ETH |
| Function |
2 slots for communication modules; Ethernet interface; 2 serial interfaces RS232/RS485 |
| Communication Interfaces |
D-SUB (RS232/RS485), RJ45 (Ethernet), Terminals |
| Input Voltage Type |
DC |
| Supply Voltage |
24 V DC |
| Degree of Protection |
IP20 |
| Ambient Air Temperature (Operation) |
0 °C ... +60 °C |
| Ambient Air Temperature (Storage) |
-40 °C ... +70 °C |
| Product Net Weight |
0.186 kg |
| Product Net Depth / Length |
28 mm |
| Product Net Height |
135 mm |
| Product Net Width |
123.5 mm |
| Gross Weight (Packed) |
0.245 kg |
| Package Level 1 Dimensions (L x W x H) |
147 mm x 131 mm x 40 mm |
| Package Level 1 Units |
1 carton |
| Minimum Order Quantity |
1 piece |
| Order Multiple |
1 piece |
| Selling Unit of Measure |
piece |
| Made To Order |
No |
| eClass |
27-24-22-92 |
| ETIM 8 |
EC000810 - PLC mounting rack |
| UNSPSC |
32151703 |
| WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
| SCIP Number |
5cc74e83-4e52-47b0-abb9-88510df47788 Germany (DE) |
