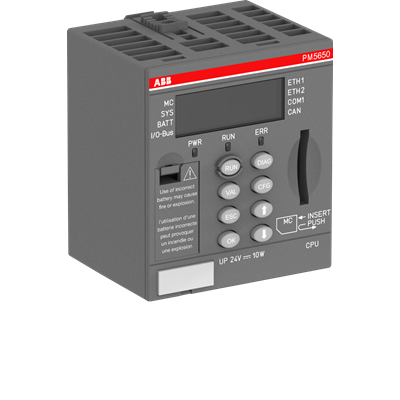

The ABB AC500 processor module PM5650-2ETH is a powerful, fully-featured CPU designed for distributed automation systems requiring high-speed logic and multi-protocol communication. With its 80 MB memory, dual Ethernet ports, and integrated RS232/485 and CAN interfaces, this module excels in complex machine control, process automation, and motion control applications. The built-in display provides real-time status and diagnostic information, simplifying troubleshooting and commissioning. Engineered for 24 V DC operation with a wide input range and IP20 protection, the PM5650-2ETH is the ideal choice for engineers seeking a reliable, scalable, and future-proof controller core.
| Parameter |
Specification |
| Product Type |
Processor Module – AC500 Series |
| Model |
PM5650-2ETH |
| Memory |
80 MB (User Data RAM: 369256 kB) |
| Processing Time |
0.00001 ms |
| Interfaces |
2 x Industrial Ethernet, 1 x RS232/485, 1 x CAN |
| Display |
Integrated LCD for status and diagnostics |
| Digital Configurable I/Os |
0 (I/O expansion via bus couplers) |
| Degree of Protection |
IP20 |
| Rated Voltage (Ur) |
24 V DC |
| Supply Voltage Range |
20.4 … 28.8 V DC |
| Product Net Weight |
0.133 kg |
| Product Net Depth / Length |
62 mm |
| Product Net Height |
76 mm |
| Product Net Width |
67.5 mm |
| Gross Weight (packaged) |
0.158 kg |
| Package Level 1 Dimensions (L x W x H) |
84 mm x 71 mm x 72 mm |
| Package Level 1 Units |
1 carton |
| Minimum Order Quantity |
1 piece |
| Selling Unit of Measure |
piece |
| Made To Order |
No (stock item) |
| CN8 Code |
85389091 |
| eClass |
27-24-22-07 |
| ETIM 8 |
EC000236 – PLC CPU-module |
| UNSPSC |
32151705 |
| WEEE Category |
5 – Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B |
Business To Business |
