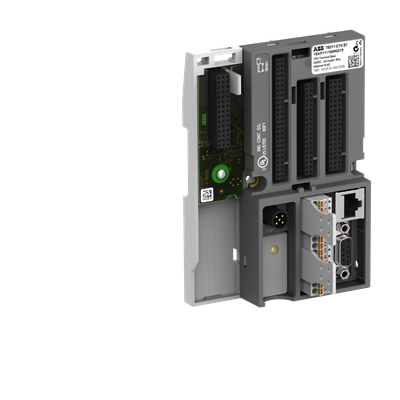

The TB511-ETH AC500 Terminal Base is a high-performance communication interface module designed specifically for ABB's AC500 V2 programmable logic controllers. This terminal base provides a single expansion slot for communication modules, enabling robust Ethernet connectivity alongside dual-channel RS232/RS485 serial communication. Engineered for reliability in distributed automation architectures, the TB511-ETH ensures seamless data exchange between controllers and field devices, making it an essential component for modern industrial control systems requiring flexible networking.
| Attribute |
Specification |
| Product Type |
Terminal Base for AC500 V2 |
| Model |
TB511-ETH |
| Function |
1 slot for communication module; Ethernet interface; 2 serial interfaces (RS232/RS485) |
| Communication Interface |
D-SUB / RJ45 / Terminals |
| Input Voltage Type |
DC |
| Supply Voltage |
24 V DC |
| Degree of Protection |
IP20 |
| Ambient Air Temperature (Operation) |
0 ... +60 °C |
| Ambient Air Temperature (Storage) |
-40 ... +70 °C |
| Product Net Weight |
0.159 kg |
| Product Net Depth / Length |
28 mm |
| Product Net Height |
135 mm |
| Product Net Width |
95.5 mm |
| Gross Weight |
0.215 kg |
| Package Level 1 Dimensions (L x W x H) |
147 mm x 131 mm x 40 mm |
| Package Level 1 Units |
1 carton |
| Minimum Order Quantity |
1 piece |
| Order Multiple |
1 piece |
| Selling Unit of Measure |
piece |
| Made To Order |
No |
| CN8 Code |
85389091 |
| eClass |
27-24-22-92 |
| ETIM 8 |
EC000810 - PLC mounting rack |
| UNSPSC |
32151703 |
| WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
| SCIP Number |
a6c04b4a-b9a6-4a06-910c-402defa687f6 Germany (DE) |
| Product Name (Application) |
Distributed Automation PLCs |
