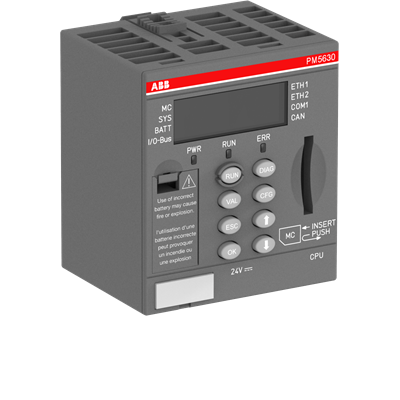

ABB PM5630-2ETH AC500 Processor Module

Series#: ABB

Product Details

High-performance ABB PM5630-2ETH AC500 Processor Module for distributed automation.
8 MB memory and blazing 0.00002 ms processing speed for demanding control tasks.
Integrated dual Ethernet ports, RS232/485, and CAN interface for versatile connectivity.
Compact IP20 design with on-board display for local diagnostics.
Rated for 24 V DC supply with wide operating range (20.4…28.8 V DC).
Lightweight (0.133 kg) and space-saving form factor for panel installations.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The ABB PM5630-2ETH is a powerful and compact processor module belonging to the renowned AC500 product family, engineered for sophisticated distributed control applications. This CPU module integrates an 8 MB memory, a high-speed processing core delivering a cycle time of just 0.00002 ms, and a comprehensive set of communication interfaces including two Industrial Ethernet ports, one RS232/485 serial channel, and one CAN bus port. The built-in alphanumeric display provides immediate on-site status and diagnostic information, simplifying commissioning and troubleshooting. Designed for reliable 24 V DC operation and protected to IP20, the PM5630-2ETH is the ideal brain for mid-range to complex automation architectures in manufacturing, process, and infrastructure sectors.

Attribute	Specification
Product Type	Processor Module (CPU)
Model	PM5630-2ETH
Product Family	AC500
Memory Size	8 MB (39256 kB user data RAM)
Processing Time (Bit Operation)	0.00002 ms
Number of Digital Configurable I/Os	0 (I/O expansion via bus modules)
Hardware Interfaces	2 x Industrial Ethernet (RJ45) 1 x RS232/485 (serial) 1 x CAN (CANopen)
Display	Integrated alphanumeric display
Rated Supply Voltage	24 V DC
Supply Voltage Range	20.4 … 28.8 V DC
Degree of Protection	IP20
Product Net Weight	0.133 kg
Product Net Depth / Length	62 mm
Product Net Height	76 mm
Product Net Width	67.5 mm
Package Level 1 Weight (Gross)	0.157 kg
Package Level 1 Dimensions (L x W x H)	84 mm x 71 mm x 72 mm
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit	Piece
Made To Order	No
eClass	27-24-22-07
ETIM 8.0	EC000236 - PLC CPU-module
UNSPSC	32151705
SCIP Number	a56d49ca-ab4e-436a-8781-4b9e968efb44 Germany (DE)
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
WEEE B2C / B2B	Business To Business
Country of Origin (SCIP)	Germany (DE)
