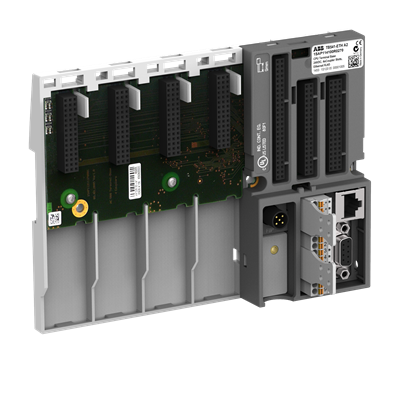

ABB TB541-ETH AC500 Terminal Base

Series#: ABB

Product Details

TB541-ETH AC500 Terminal Base – a high-performance expansion base for AC500 V2 PLC systems.
Features 4 slots for communication modules, enabling flexible system expansion.
Integrated Ethernet interface plus 2 serial interfaces (RS232/RS485) for versatile connectivity.
Compact and rugged design with IP20 protection, ideal for industrial cabinets.
Lightweight at 0.24 kg net weight, easy to mount and integrate.
Supports 24 V DC supply voltage, operating from 0 to +60 °C.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The TB541-ETH AC500 Terminal Base is a critical component for building scalable and high-performance distributed automation systems within the AC500 V2 platform. Designed to serve as the backbone for communication module integration, this terminal base provides four dedicated slots, allowing engineers to customize their PLC architecture with additional Ethernet, serial, or specialized communication modules. Its built-in Ethernet interface and dual RS232/RS485 serial ports ensure seamless connectivity to field devices, drives, and higher-level control networks. Engineered for industrial environments, the TB541-ETH delivers reliable operation in temperatures ranging from 0 to +60 °C and is protected to IP20 standards. With a net weight of only 0.24 kg and compact dimensions, it is ideally suited for space-constrained control panels. This unit is 100% original and new, available for prompt worldwide shipping.

Specification	Details
Product Type	TB541-ETH AC500 Terminal Base
Product Main Type	TB541
Product Name	Distributed Automation PLCs
Function	For AC500 V2; 4 slots for communication modules; Ethernet interface; 2 serial interfaces RS232/RS485
Communication Interface	D-SUB / RJ45 / Terminals
Input Voltage Type	DC
Supply Voltage	24 V DC
Degree of Protection	IP20
Ambient Air Temperature (Operation)	0 ... +60 °C
Ambient Air Temperature (Storage)	-40 ... +70 °C
Product Net Weight	0.24 kg
Product Net Depth / Length	28 mm
Product Net Height	135 mm
Product Net Width	179.5 mm
Gross Weight	0.311 kg
Package Level 1 Depth / Length	147 mm
Package Level 1 Height	40 mm
Package Level 1 Width	189 mm
Package Level 1 Units	1 carton
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece
Made To Order	No
CN8 (Customs Tariff)	85389091
eClass	27-24-22-92
ETIM 8	EC000810 - PLC mounting rack
UNSPSC	32151703
SCIP	0af38f44-ebb9-41bc-85b8-14a405e35442 Germany (DE)
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
