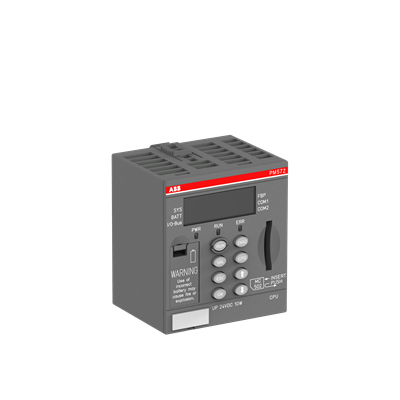

ABB PM572 AC500 Processor Module

Series#: ABB

Product Details

ABB PM572 AC500 Processor Module – High-performance CPU for distributed automation PLC systems.
128 kB user program memory and 128 kB user data memory (RAM) for robust control applications.
Dual serial ports (RS232/485) plus FieldBusPlug (FBP) interface for flexible communication.
Integrated LCD display for on-device diagnostics and status monitoring.
Compact IP20 design with 24 V DC supply, ideal for cabinet mounting.
Ultra-fast processing time of 0.00006 ms per instruction ensures real-time performance.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The ABB PM572 AC500 Processor Module is a core component of the AC500 distributed automation platform, designed to deliver reliable and scalable control for mid-range industrial applications. Featuring 128 kB of user program memory and 128 kB of user data memory, this CPU module provides ample capacity for complex logic sequences and data handling. Its dual RS232/485 serial ports, combined with a FieldBusPlug (FBP) connector, enable seamless integration with various field devices and higher-level networks. The built-in LCD display offers convenient local diagnostics, while the compact dimensions (67.5 mm x 76 mm x 62 mm) and low weight (0.134 kg net) make it easy to install in tight control panels. With an operating temperature range of 0 to +60 °C and IP20 protection, the PM572 is suited for demanding industrial environments. The module operates on 20.4 to 28.8 V DC and boasts an instruction processing time of just 0.00006 ms, ensuring high-speed control loops. Each unit is supplied as a 100% original and new product, with prompt global shipping available.

Parameter	Specification
Product Type	AC500 Processor Module
Model	PM572
Memory (User Program)	128 kB
Memory (User Data)	128 kB (RAM)
Total Memory	256 kB
Communication Interfaces	2x RS232/485 (Serial), 1x FieldBusPlug (FBP)
Display Type	LCD
Processing Time	0.00006 ms per instruction
Digital Configurable I/Os	0 (requires expansion modules)
Rated Voltage	24 V DC
Supply Voltage Range	20.4 … 28.8 V DC
Degree of Protection	IP20
Operating Temperature	0 … +60 °C
Storage Temperature	-40 … +70 °C
Product Net Weight	0.134 kg
Product Net Depth / Length	62 mm
Product Net Height	76 mm
Product Net Width	67.5 mm
Gross Weight (packaged)	0.158 kg
Package Dimensions (L x W x H)	84 mm x 71 mm x 72 mm
Packaging Unit	1 carton
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Customs Tariff (CN8)	85389091
eClass	27-24-22-07
ETIM 8	EC000236 - PLC CPU-module
UNSPSC	32151705
WEEE Category	5. Small Equipment (≤50 cm)
