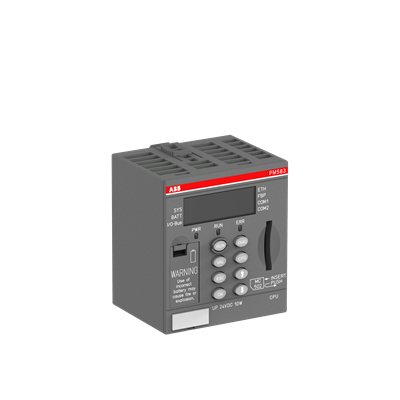

The ABB PM583-ETH AC500 Processor Module is a powerful and flexible CPU designed for the AC500 platform, delivering robust performance for mid-range distributed automation applications. Equipped with a 1 MB memory split equally between user program and user data, this module handles logic, motion, and communication tasks with ease. Its built-in Ethernet port, dual RS232/485 serial interfaces, and FBP (Fieldbus Plug) support enable seamless integration into a wide range of industrial networks, including PROFIBUS, CANopen, and DeviceNet via optional modules. The integrated LCD display provides real-time diagnostics, simplifying troubleshooting and reducing downtime. With a processing speed of just 0.00005 ms per bit instruction, the PM583-ETH ensures high-speed control for demanding processes. The module operates on a 24 V DC supply (20.4 to 28.8 V DC range) and is rated IP20 for use in clean, controlled environments. Its compact footprint (67.5 mm x 76 mm x 62 mm) and lightweight design (0.134 kg net) make it easy to install in crowded cabinets. Whether deployed in standalone or networked configurations, the PM583-ETH offers exceptional reliability and scalability for modern industrial systems.
| Parameter |
Specification |
| Product Type |
PM583-ETH AC500 Processor Module |
| Memory Size (Total) |
2048 kB |
| Memory Size (User Program) |
1024 kB |
| Memory Size (User Data) |
1024 kB |
| Memory Type (User Data) |
RAM |
| Controller Processing Time |
0.00005 ms (bit instruction) |
| Communication Interfaces |
Industrial Ethernet (1), RS232/485 (2), FBP (1) |
| Number of Digital Configurable I/Os |
0 (via expansion modules) |
| Display Type |
LCD |
| Rated Voltage (Ur) |
24 V DC |
| Supply Voltage Range |
20.4 … 28.8 V DC |
| Degree of Protection |
IP20 |
| Ambient Air Temperature (Operation) |
0 … +60 °C |
| Ambient Air Temperature (Storage) |
-40 … +70 °C |
| Product Net Weight |
0.134 kg |
| Product Net Depth / Length |
62 mm |
| Product Net Height |
76 mm |
| Product Net Width |
67.5 mm |
| Gross Weight |
0.158 kg |
| Package Level 1 Dimensions (L x W x H) |
84 mm x 71 mm x 72 mm |
| Package Level 1 Units |
1 carton |
| HS Code (CN8) |
85389091 |
| eClass |
27-24-22-07 |
| ETIM 8 |
EC000236 - PLC CPU-module |
| UNSPSC |
32151705 |
| WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B |
Business To Business |
| SCIP Number |
4daec228-b88f-4f13-8533-c38f3c942985 Germany (DE) |
| Minimum Order Quantity |
1 piece |
| Order Multiple |
1 piece |
| Selling Unit of Measure |
piece |
| Made To Order |
No |
