ABB PM5670-2ETH AC500 Processor Module

Series#: ABB

Product Details

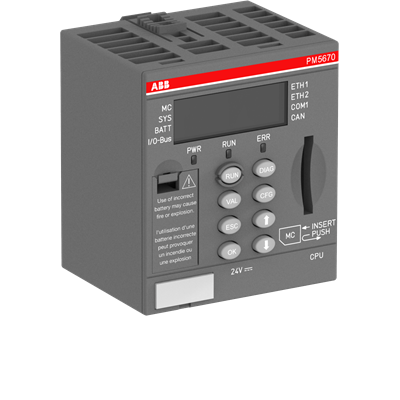

ABB AC500 V3 PM5670-2ETH processor module with 1 GHz processor clock.
160 MB maximum downloadable application: 32 MB program/data and 128 MB user web data.
1.5 MB buffered SRAM for data retention functions defined by the system.
Dual onboard 10/100 Mbit/s RJ45 Ethernet connections.
COM1 RS-232 / RS-485 serial interface and CAN connection.
24 V DC supply through a suitable TB56xx-2ETH terminal base.
Select this precise PM5670-2ETH order code; do not assume PM5675 onboard flash features.

WhatsApp Inquiry

Specification

Installation Manual

Overview

The ABB PM5670-2ETH is an AC500 V3 CPU module with 160 MB maximum downloadable application memory. It has two Ethernet ports, COM1 serial and CAN; the PM5675 variant differs by including an integrated 8 GB flash disk.

Technical specifications

Specification	Value
Product family	ABB AC500 V3
Processor module	PM5670-2ETH
CPU clock	1 GHz
Maximum downloadable application	160 MB
Program and data portion	32 MB
User web data portion	128 MB
Buffered SRAM	1.5 MB
Onboard Ethernet	2 × RJ45, 10/100 Mbit/s
Serial interface	COM1, RS-232 / RS-485
Fieldbus interface	CAN
Supply	24 V DC via terminal base
Matching terminal base	TB56xx-2ETH family
Typical current, CPU alone	140 mA
Approximate module weight	135 g
Flash-disk distinction	Integrated 8 GB flash is specified for PM5675-2ETH

Integration and replacement notes

Check the existing terminal base, configured I/O expansion and Automation Builder project before substitution. The 160 MB figure describes the maximum downloadable application allocation and should not be described as 160 MB of freely interchangeable user RAM.
