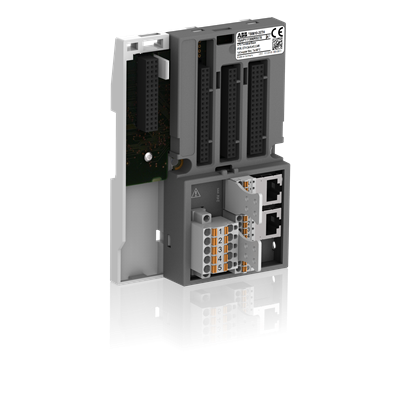

ABB TB5610-2ETH AC500 Terminal Base

Series#: ABB

Product Details

ABB TB5610-2ETH: AC500 V3 Terminal Base with dual Ethernet interfaces for advanced communication.
Supports 1 communication module slot, plus 1 serial and 1 CAN interface for versatile connectivity.
Compact, space-saving design: 95.5 mm width, 135 mm height, 28 mm depth.
IP20 protection rating, ideal for industrial control cabinet environments.
Lightweight at 0.157 kg net weight, easy to install and integrate.
Compliant with global standards: eClass 27-24-22-92, ETIM EC000810, UNSPSC 32151703.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The ABB TB5610-2ETH is a high-performance terminal base specifically engineered for the AC500 V3 distributed automation PLC system. This module serves as the foundation for expanding communication capabilities, offering a single slot for a communication module alongside two built-in Ethernet interfaces, one serial interface, and one CAN interface. Designed for demanding industrial automation applications, the TB5610-2ETH ensures seamless data exchange and robust connectivity in a compact footprint. Its 24 V DC input voltage and IP20 protection make it suitable for standard control panel installations, while the lightweight construction simplifies mounting on DIN rails. Whether used in manufacturing, process control, or building automation, this terminal base delivers reliable performance and easy integration with ABB's AC500 ecosystem.

Attribute	Specification
Product Model	ABB TB5610-2ETH
Product Name	AC500 Terminal Base
Function	For AC500 V3; 1 slot for communication module; 2 Ethernet interfaces; 1 serial interface; 1 CAN interface
Input Voltage Type	DC
Degree of Protection	IP20
Product Net Weight	0.157 kg
Product Net Depth / Length	28 mm
Product Net Height	135 mm
Product Net Width	95.5 mm
Gross Weight	0.228 kg
Package Level 1 Depth / Length	147 mm
Package Level 1 Height	40 mm
Package Level 1 Width	131 mm
Package Level 1 Units	1 carton
Product Main Type	TB5610
Product Category	Distributed Automation PLCs
eClass	27-24-22-92
ETIM 8	EC000810 - PLC mounting rack
UNSPSC	32151703
SCIP	23f2500a-ab49-451f-ba70-5bbf3d79824d Germany (DE)
WEEE B2C / B2B	Business To Business
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
CN8	85389091
Made To Order	No
Minimum Order Quantity	1 piece
Order Multiple	1 piece
Selling Unit of Measure	piece
