ABB PM5675-2ETH AC500 Processor Module

Series#: ABB

Product Details

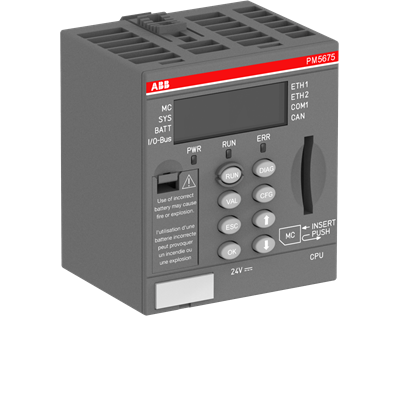

ABB AC500 V3 PM5675-2ETH processor module with a 1 GHz processor.
160 MB maximum downloadable application area: 32 MB program/data plus 128 MB user web data.
Integrated 8 GB flash disk for this PM5675 variant.
Two onboard 10/100 Mbit/s Ethernet RJ45 interfaces.
COM1 serial interface supports RS-232 / RS-485; CAN is also available.
24 V DC power supplied through the matching TB56xx-2ETH terminal base.
Verify terminal base, firmware and Automation Builder project before exchange.

WhatsApp Inquiry

Specification

Installation Manual

Overview

The ABB PM5675-2ETH is an AC500 V3 processor module with dual Ethernet, serial and CAN connectivity. It provides 160 MB application-related memory plus an integrated 8 GB flash disk, distinguishing it from the PM5670-2ETH.

Technical specifications

Specification	Value
Product family	ABB AC500 V3
Processor module	PM5675-2ETH
CPU clock	1 GHz
Maximum downloadable application	160 MB
Program and data portion	32 MB
User web data portion	128 MB
Buffered SRAM	1.5 MB
Integrated flash disk	8 GB
Onboard Ethernet	2 × RJ45, 10/100 Mbit/s
Serial interface	COM1, RS-232 / RS-485
Fieldbus interface	CAN
Supply	24 V DC via terminal base
Matching terminal base	TB56xx-2ETH family
Typical current, CPU alone	140 mA
Approximate module weight	135 g

Integration and replacement notes

The processor module depends on a compatible terminal base and the selected I/O/communication expansion. The two Ethernet ports, COM1 and CAN are onboard; other fieldbus functions require the appropriate external communication module. Confirm application size, firmware and installed flash-media use before replacement.
