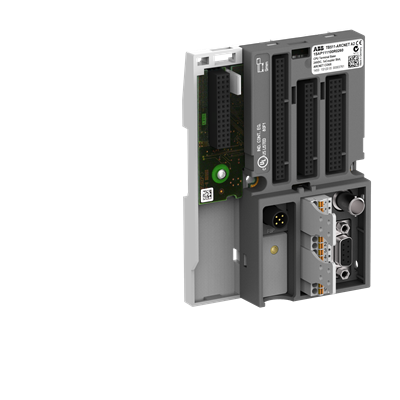

The ABB TB511-ARCNET terminal base is a critical component for the AC500 V2 distributed automation platform, providing a robust foundation for integrating ARCNET communication into your control architecture. This TB511-ARCNET unit features a single communication module slot and two serial ports (RS232/RS485), enabling seamless connectivity with legacy and modern field devices. Engineered for industrial environments, it supports 24 V DC input and delivers reliable performance within a 0°C to +60°C operating range, all housed in a space-saving IP20 enclosure.
| Parameter |
Value |
| Product Model |
ABB TB511-ARCNET |
| Product Type |
Terminal Base for AC500 V2 |
| Function |
1 slot for communication module; ARCNET interface; 2 serial interfaces RS232/RS485 |
| Communication Interface |
D-SUB / Coax / Terminals |
| Input Voltage Type |
DC |
| Supply Voltage |
24 V DC |
| Degree of Protection |
IP20 |
| Ambient Air Temperature (Operation) |
0 ... +60 °C |
| Ambient Air Temperature (Storage) |
-40 ... +70 °C |
| Product Net Weight |
0.161 kg |
| Product Net Depth / Length |
28 mm |
| Product Net Height |
135 mm |
| Product Net Width |
95.5 mm |
| Gross Weight |
0.217 kg |
| Package Level 1 Dimensions (L x W x H) |
147 mm x 131 mm x 40 mm |
| Package Level 1 Units |
1 carton |
| CN8 Code |
85389091 |
| Minimum Order Quantity |
1 piece |
| Order Multiple |
1 piece |
| Selling Unit of Measure |
piece |
| Made To Order |
No |
| Product Main Type |
TB511 |
| Product Name |
Distributed Automation PLCs |
| eClass |
27-24-22-92 |
| ETIM 8 |
EC000810 - PLC mounting rack |
| UNSPSC |
32151703 |
| SCIP |
8ef0f9f0-3853-47e5-83ea-80ad621b80c9 Germany (DE) |
| WEEE B2C / B2B |
Business To Business |
| WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
