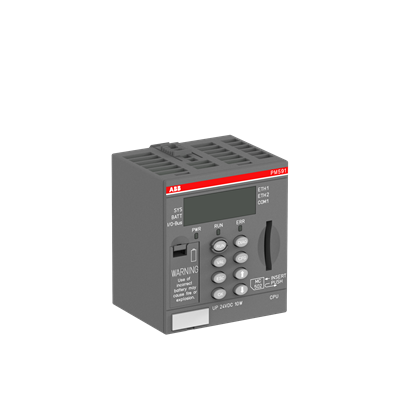

The ABB PM591-2ETH processor module is a core component of the AC500 platform, engineered for demanding distributed automation tasks. This unit combines a powerful CPU with 4 MB of memory and 9,728 kB of user data RAM, ensuring seamless execution of complex control logic. It provides two industrial Ethernet interfaces and one RS232/485 port, enabling reliable connectivity with field devices and higher-level systems. The integrated display allows operators to quickly access status information without additional tools. With a net weight of just 0.137 kg and compact dimensions of 76 mm x 67.5 mm x 62 mm, the PM591-2ETH fits easily into space-constrained panels. It operates on a 24 V DC supply with a wide tolerance range (20.4–28.8 V DC) and boasts an IP20 rating for safe use in industrial environments. This module is designed for high-speed processing, with a controller processing time of only 0.000002 ms, making it suitable for real-time applications. As a standard AC500 model, it supports up to 0 digital configurable I/Os directly but can be expanded via bus modules. The PM591-2ETH is classified under eClass 27-24-22-07 and ETIM EC000236, confirming its role as a PLC CPU module. It is available as a standard piece with a minimum order quantity of 1, and each unit is shipped in a carton with dimensions 84 mm x 72 mm x 71 mm.
| Attribute |
Specification |
| Product Model |
PM591-2ETH |
| Product Type |
AC500 Processor Module |
| Function |
Memory 4 MB; Interfaces: 2x Ethernet, RS232/485; Display |
| Memory Size |
9,728 kB (User Data RAM) |
| Number of Hardware Interfaces |
Industrial Ethernet: 1; Other: 1; RS-232: 0; RS-485: 0 |
| Controller Processing Time |
0.000002 ms |
| Digital Configurable I/Os |
0 |
| Degree of Protection |
IP20 |
| Rated Voltage (Ur) |
24 V DC |
| Supply Voltage Range |
20.4 … 28.8 V DC |
| Product Net Weight |
0.137 kg |
| Product Net Depth / Length |
62 mm |
| Product Net Height |
76 mm |
| Product Net Width |
67.5 mm |
| Gross Weight |
0.161 kg |
| Package Level 1 Dimensions (L x H x W) |
84 mm x 72 mm x 71 mm |
| Package Level 1 Units |
1 carton |
| Minimum Order Quantity |
1 piece |
| Order Multiple |
1 piece |
| Selling Unit of Measure |
piece |
| Made To Order |
No |
| Product Main Type |
PM591 |
| Product Name |
Distributed Automation PLCs |
| CN8 Code |
85389091 |
| eClass |
27-24-22-07 |
| ETIM 8 |
EC000236 - PLC CPU-module |
| UNSPSC |
32151705 |
| SCIP |
33127340-6b39-44ac-a7c5-a3dcb2794d1b Germany (DE) |
| WEEE B2C / B2B |
Business To Business |
| WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
