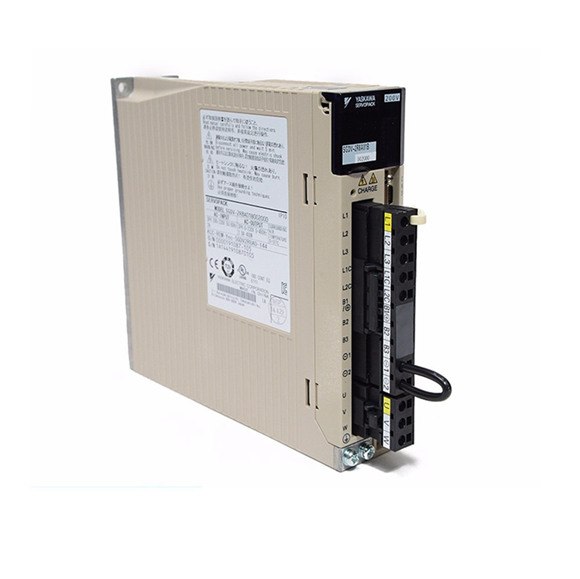

Yaskawa SERVOPACK 50W SGDV-R70A11B

Series#: Yaskawa

Product Details

High-performance YASKAWA SERVOPACKS 50W SGDV-R70A11B/11A for precise motion control.
Compact design with base-mounted configuration for easy integration into servo systems.
Supports single-phase 200-230 VAC input, ideal for Sigma-5 motor families.
Equipped with serial encoder feedback for incremental or absolute position control.
Rated continuous output current of 0.66 Arms and max output current of 2.1 Arms.
Robust environmental tolerance: 0 to +55°C operating temperature and 90%RH non-condensing humidity.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The YASKAWA SERVOPACKS 50W SGDV-R70A11B/11A is a state-of-the-art servo drive from the renowned Sigma-5 series, engineered to deliver exceptional performance for low-power motion control applications. This model, designed for 50W motor capacity, provides seamless compatibility with a wide range of Yaskawa servo motors, including SGMAH, SGMPH, SGMJV, SGMAV, and SGMEV types. With its single-phase 200-230 VAC input and advanced IGBT/PWM sine-wave current drive method, the SGDV-R70A11B/11A ensures smooth, efficient, and reliable operation in demanding industrial environments. Whether used in packaging, robotics, or CNC machinery, this drive offers precise feedback via serial encoders and robust protection against vibration and shock, making it a trusted choice for OEMs and system integrators worldwide.

Parameter	Specification for SGDV-R70A11B/11A	Notes
Model	YASKAWA SERVOPACKS 50W SGDV-R70A11B/11A	Sigma-5 Series, 50W rated
Applicable Motor Capacity	50 W	For SGMAH, SGMPH, SGMJV, SGMAV, SGMEV models
Continuous Output Current	0.66 Arms	RMS value
Maximum Output Current	2.1 Arms	For peak torque demand
Main Circuit Input Power	Single-phase, 200 to 230 VAC +10% to -15% (50/60 Hz)	Standard industrial supply
Control Circuit Input Power	Single-phase, 200 to 230 VAC +10% to -15% (50/60 Hz)	Shared with main circuit
Control Method	Single-phase full-wave rectification, IGBT, PWM, sine-wave current drive	High-efficiency drive
Feedback	Serial encoder (incremental or absolute)	Supports high-resolution position control
Operating Temperature	0 to +55 °C	Ambient, non-condensing
Storage Temperature	-20 to +85 °C	For long-term storage
Operating Humidity	90% RH or less (non-condensing)	High humidity tolerance
Altitude	1000 m or less above sea level	Standard installation
Vibration Resistance	4.9 m/s²	During operation
Shock Resistance	19.6 m/s²	Non-operating
Configuration	Base mounted	Panel or cabinet installation
Approximate Weight	0.9 kg	Lightweight for easy handling
