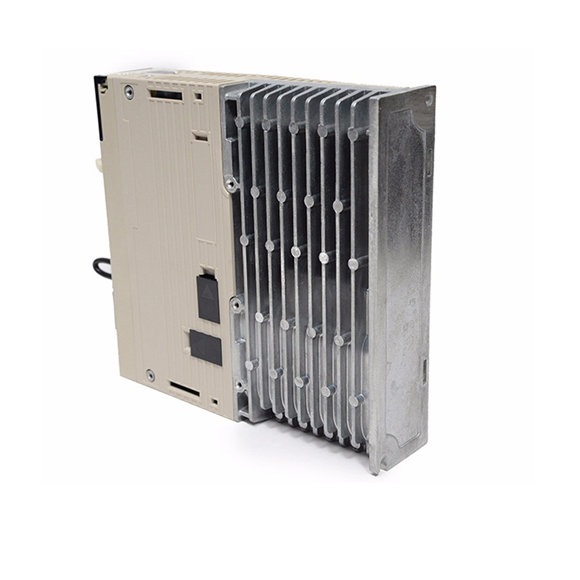

Yaskawa SGDV-2R8A01B002000 Servo Drive

Series#: Yaskawa

Product Details

YASKAWA SERVOPACKS 400W SGDV-2R8A01B002000 – High-performance Sigma-5 servo drive for precision motion control.
Rated continuous output current of 2.8 Arms, delivering robust torque for 400W AC servo motors.
Supports single-phase 200-230 VAC input, ideal for compact automation systems.
Equipped with serial encoder feedback (incremental/absolute) for high-resolution positioning.
Base-mounted design with wide operating temperature range (0 to +55°C) for industrial environments.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The YASKAWA SERVOPACKS 400W SGDV-2R8A01B002000 is a state-of-the-art Sigma-5 servo drive engineered for demanding motion control tasks. This model, specifically the 2R8A variant, delivers 400W rated capacity with a continuous output current of 2.8 Arms and a maximum output current of 9.3 Arms, ensuring smooth and responsive operation for applications like pick-and-place, packaging, and CNC machinery. Its single-phase 200-230 VAC input simplifies integration into existing control panels, while the IGBT-based PWM control method guarantees high efficiency and low harmonic distortion. The drive supports a range of compatible motors (e.g., SGMAH, SGMPH, SGMJV, SGMAV, SGMEV) with serial encoder feedback for both incremental and absolute positioning, achieving precise speed and torque control. With a base-mounted configuration, it withstands vibrations up to 4.9 m/s² and shocks up to 19.6 m/s², operating reliably in temperatures from 0 to +55°C and humidity up to 90% RH non-condensing. Weighing approximately 1.0 kg, this unit is ideal for space-constrained setups.

Parameter	Specification (SGDV-2R8A01B002000)
Servo Drive Type	YASKAWA Sigma-5 SERVOPACK
Model Number	SGDV-2R8A01B002000
Rated Motor Capacity	400 W
Continuous Output Current	2.8 Arms
Maximum Output Current	9.3 Arms
Main Circuit Input Power	Single-phase, 200 to 230 VAC +10% to -15% (50/60 Hz)
Control Circuit Input Power	Single-phase, 200 to 230 VAC +10% to -15% (50/60 Hz)
Control Method	IGBT / PWM / Sine-wave current drive (single-phase full-wave rectification)
Feedback	Serial encoder (incremental/absolute)
Usage Temperature	0 to +55 °C
Storage Temperature	-20 to +85 °C
Usage/Storage Humidity	90% RH or less (non-condensing)
Altitude	1000 m or less above sea level
Vibration Resistance	4.9 m/s²
Shock Resistance	19.6 m/s²
Configuration	Base mounted
Approximate Weight	1.0 kg
