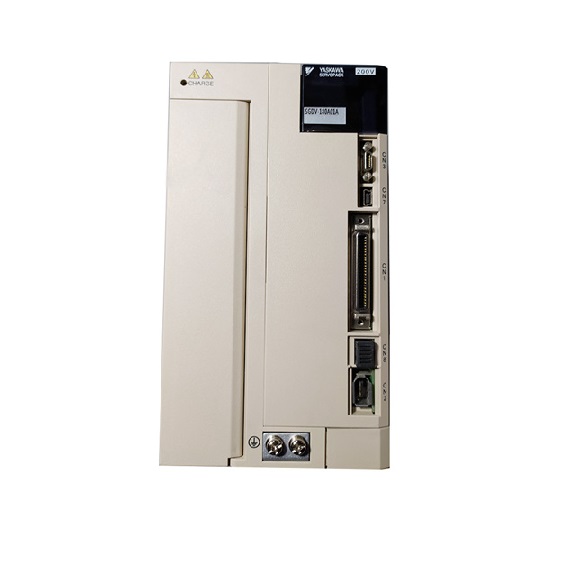

The YASKAWA SERVOPACKS 2KW SGDV-180A01A002000 is a state-of-the-art servo drive from the renowned Sigma-5 series, engineered for high-speed, high-precision motion control in automation systems. This model delivers a continuous output current of 11.6 Arms and a maximum output current of 28 Arms, ensuring robust torque and speed regulation for demanding applications. It integrates seamlessly with Yaskawa’s SGMAH, SGMPH, SGMJV, SGMAV, and SGMEV motor families, supporting capacities up to 1500W. The drive employs a single-phase full-wave rectification control method with IGBT/PWM and sine-wave current drive for smooth, efficient operation. Feedback is provided via a serial encoder (incremental or absolute), guaranteeing accurate position tracking. Designed for durability, it operates in temperatures from 0 to +55°C, with storage from -20 to 85°C, and withstands humidity up to 90% RH (non-condensing). The base-mounted configuration weighs approximately 2.8 kg and is suitable for altitudes up to 1000m, with vibration resistance of 4.9 m/s² and shock resistance of 19.6 m/s².
| Parameter |
Value (SGDV-180A01A002000) |
Notes |
| Model |
YASKAWA SGDV-180A01A002000 |
Sigma-5 SERVOPACK, 2.0 kW |
| Max. Applicable Motor Capacity |
2.0 kW (2000 W) |
For motors up to 1500W continuous |
| Continuous Output Current |
11.6 Arms |
At rated conditions |
| Max. Output Current |
28 Arms |
Peak for acceleration/deceleration |
| Input Power (Main Circuit) |
Single-phase, 200 to 230 VAC +10% to -15% (50/60 Hz) |
Standard AC supply |
| Input Power (Control Circuit) |
Single-phase, 200 to 230 VAC +10% to -15% (50/60 Hz) |
Shared with main circuit |
| Control Method |
Single-phase full-wave rectification / IGBT / PWM / sine-wave current drive |
High-efficiency switching |
| Feedback |
Serial encoder (incremental or absolute) |
High-resolution position feedback |
| Usage Temperature |
0 to +55 °C |
Operating range |
| Storage Temperature |
-20 to +85 °C |
Non-operating |
| Usage Humidity |
90% RH or less (non-condensing) |
High humidity tolerance |
| Altitude |
1000m or less above sea level |
Standard installation |
| Vibration Resistance |
4.9 m/s² |
10 to 55 Hz |
| Shock Resistance |
19.6 m/s² |
Peak impact |
| Configuration |
Base mounted |
Panel or chassis installation |
| Approx. Weight |
2.8 kg |
Unit only |
| Compatible Motor Series |
SGMAH, SGMPH, SGMJV, SGMAV, SGMEV |
Various capacities (A5A, 01A, 04A, 10A, 15A) |
