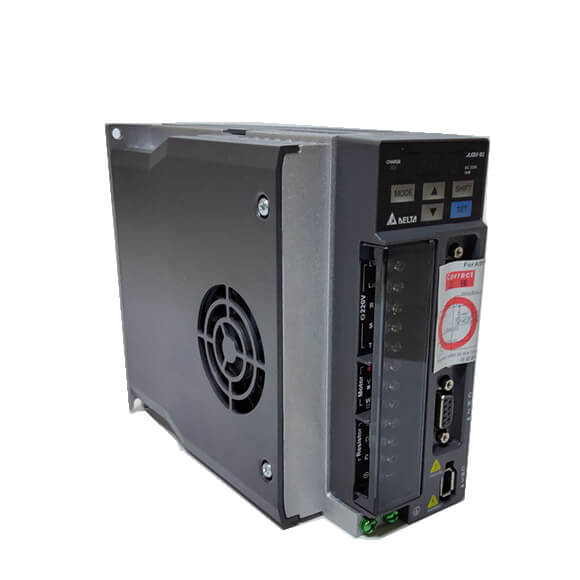

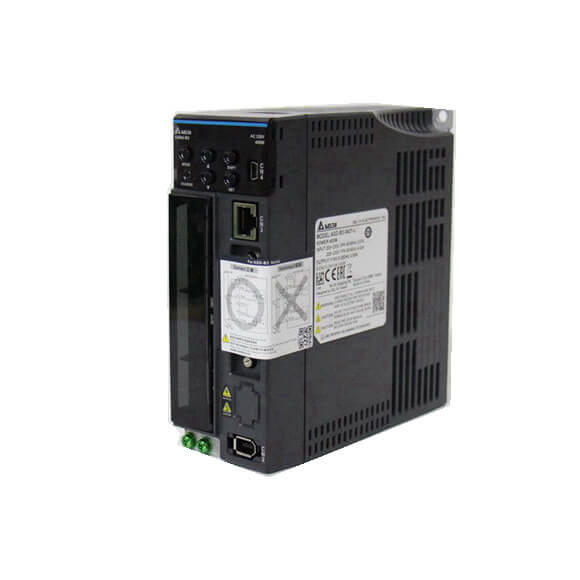

Delta ASDA-B2 Servo Drive 100W ASD-B2-0121

Series#: Delta

Product Details

Model: DELTA ASDA-B2 SERVO DRIVE 100W ASD-B2-0121 – precise positioning for compact automation tasks.
17-bit absolute encoder feedback (160,000 p/rev) for ultra-smooth, high-resolution motion control.
Advanced SVPWM control with auto/manual tuning modes for quick, stable setup.
Versatile command support: pulse train, analog signal, or internal parameters for flexible integration.
Built-in dynamic brake on 750W and above models; natural air convection cooling up to 400W.
Wide input voltage range: single/three-phase 200–255VAC, 50/60Hz ±5%.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The DELTA ASDA-B2 SERVO DRIVE 100W ASD-B2-0121 is a high-performance, cost-effective servo drive designed for precise speed, position, and torque control in demanding industrial applications. With a 100W output and a 17-bit encoder resolution, this drive ensures exceptional accuracy and smoothness for tasks such as packaging, labeling, pick-and-place, and small-scale CNC machinery. It supports both pulse train and analog command inputs, features auto-tuning for quick commissioning, and includes robust protection functions. Whether used standalone or integrated into a multi-axis system, the ASD-B2-0121 delivers reliable, repeatable motion control with minimal maintenance. All units are 100% original and new, sourced directly from authorized channels, and available for immediate shipment.

Parameter	ASD-B2-0121 (100W)	200W Models	400W Models	750W Models	1kW Models	1.5kW Models	2kW Models	3kW Models
Phase / Voltage	Three-phase: 170–255VAC, 50/60Hz ±5% Single-phase: 200–255VAC, 50/60Hz ±5%	Three-phase: 170–255VAC, 50/60Hz ±5%
Continuous Output Current	0.9 Arms	1.55 Arms	2.6 Arms	5.1 Arms	7.3 Arms	8.3 Arms	13.4 Arms	19.4 Arms
Cooling System	Natural Air Circulation	Fan Cooling
Encoder Resolution / Feedback Resolution	17-bit (160,000 p/rev)
Control of Main Circuit	SVPWM Control
Tuning Modes	Auto / Manual
Dynamic Brake	–	Built-in
Max. Input Pulse Frequency	Line driver: Max. 500 Kpps (low speed) / Max. 4 Mpps (high speed) Open collector: Max. 200 Kpps
Pulse Type	Pulse + Direction, A phase + B phase, CCW pulse + CW pulse
Command Source (Position)	External pulse train / Internal parameters
Smoothing Strategy (Position)	Low-pass filter
Electronic Gear	Electronic gear N/M multiple N: 1–(2^26-1) / M: 1–(2^31-1) 1/50 < N/M < 25600
Torque Limit Operation	Set by parameters
Feed Forward Compensation	Set by parameters
Analog Input Command Voltage Range	0–±10 VDC
Input Resistance	10 kΩ
Time Constant	2.2 µs
Speed Control Range*1	1:5000
Command Source (Speed)	External analog signal / Internal parameters
Smoothing Strategy (Speed)	Low-pass and S-curve filter
Torque Limit Operation (Speed)	Set by parameters or via Analog input
Responsiveness Characteristic	Maximum 550 Hz
