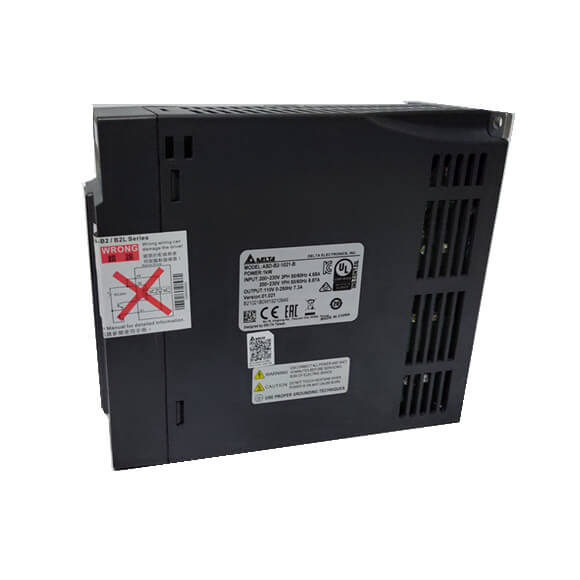

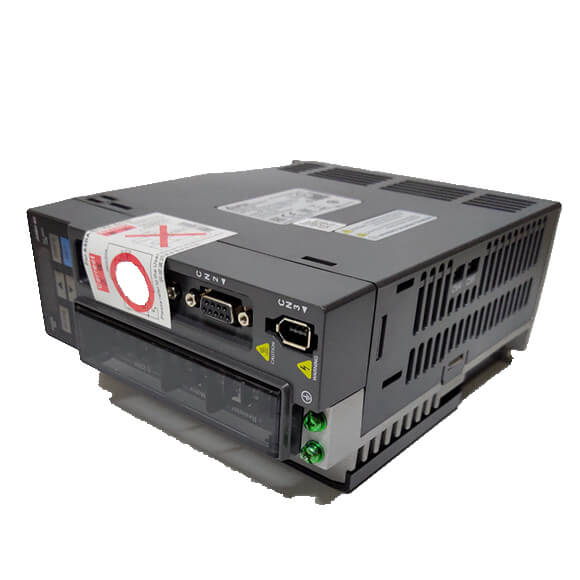

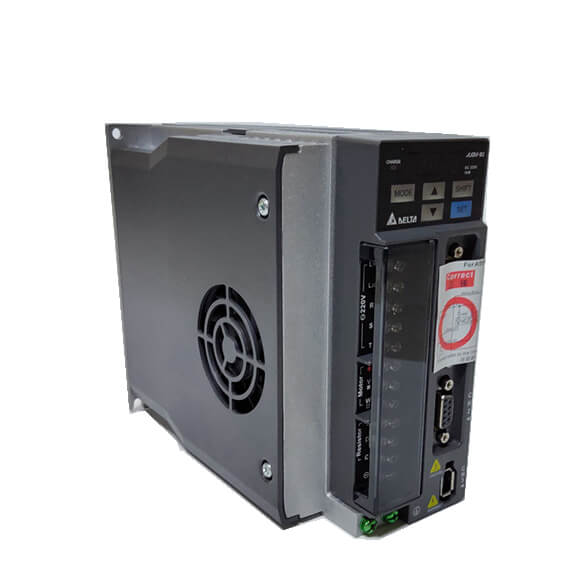

Delta ASDA-B2 Servo Drive 1.5kW ASD-B2-1521-B

Series#: Delta

Product Details

High-performance DELTA ASDA-B2 Servo Drive 1.5kW, model ASD-B2-1521-B, engineered for precision motion control.
Equipped with 17-bit (160,000 p/rev) encoder resolution for superior feedback accuracy and smooth operation.
Supports multiple control modes: position, speed, and torque, with auto/manual tuning for optimized performance.
Built-in dynamic brake for 1.5kW models ensures safe and rapid deceleration in critical applications.
Wide input voltage range: three-phase 170–255 VAC, 50/60 Hz, with fan cooling for reliable thermal management.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The DELTA ASDA-B2 Servo Drive 1.5kW, specifically the ASD-B2-1521-B, represents a robust solution for industrial automation systems requiring precise motion control. This drive integrates advanced SVPWM control with a 17-bit absolute encoder feedback, delivering exceptional positioning accuracy and speed stability. Designed for demanding applications such as packaging, labeling, and CNC machinery, the ASD-B2-1521-B offers flexible command sources (pulse train, analog signal, or internal parameters) and supports both position and speed/torque loops. Its built-in dynamic brake for the 1.5kW variant enhances safety during emergency stops, while the fan cooling system ensures consistent performance under continuous load. With a maximum input pulse frequency of 4 Mbps in high-speed mode and an electronic gear ratio range of 1/50 to 25600, this drive is optimized for high-throughput environments.

Specification	ASD-B2-1521-B (1.5kW)	Other Models (100W–3kW)
Continuous Output Current	8.3 Arms	0.9 – 19.4 Arms
Phase / Voltage	Three-phase: 170–255 VAC, 50/60 Hz ±5%	100W–1kW: Single/Three-phase; 1.5kW–3kW: Three-phase only
Cooling System	Fan Cooling	100W–400W: Natural Air Circulation; 750W–3kW: Fan Cooling
Encoder Resolution	17-bit (160,000 p/rev)	Same for all models
Control Method	SVPWM Control	Same for all models
Tuning Modes	Auto / Manual	Same for all models
Dynamic Brake	Built-in	100W–400W: Not available; 750W–3kW: Built-in
Max. Input Pulse Frequency	Line driver: 500 Kpps (low speed) / 4 Mbps (high speed); Open collector: 200 Kpps	Same for all models
Pulse Type	Pulse + Direction, A phase + B phase, CCW pulse + CW pulse	Same for all models
Command Source (Position)	External pulse train / Internal parameters	Same for all models
Smoothing Strategy (Position)	Low-pass filter	Same for all models
Electronic Gear	N/M multiple: N: 1 to (2^26-1); M: 1 to (2^31-1); 1/50 < N/M < 25600	Same for all models
Torque Limit Operation	Set by parameters	Same for all models
Feed Forward Compensation	Set by parameters	Same for all models
Analog Input Command Voltage Range	0 to ±10 VDC	Same for all models
Input Resistance	10 kΩ	Same for all models
Time Constant	2.2 µs	Same for all models
Speed Control Range	1:5000 (typical)	Same for all models
Command Source (Speed)	External analog signal / Internal parameters	Same for all models
Smoothing Strategy (Speed)	Low-pass and S-curve filter	Same for all models
Torque Limit Operation (Speed/Torque)	Set by parameters or via Analog input	Same for all models
Responsiveness Characteristic	Maximum 550 Hz	Same for all models
