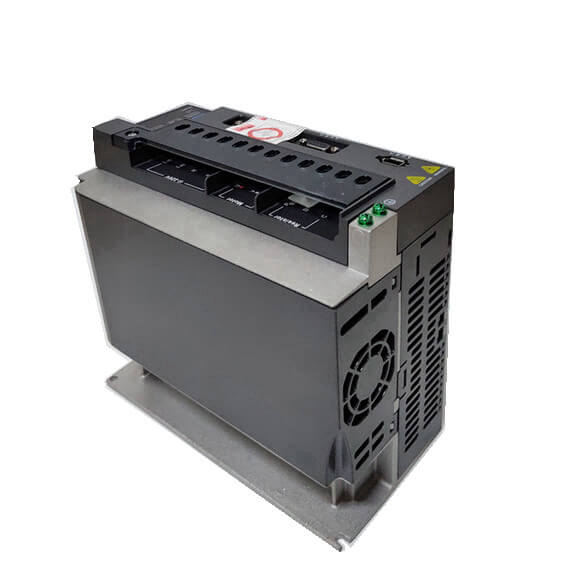

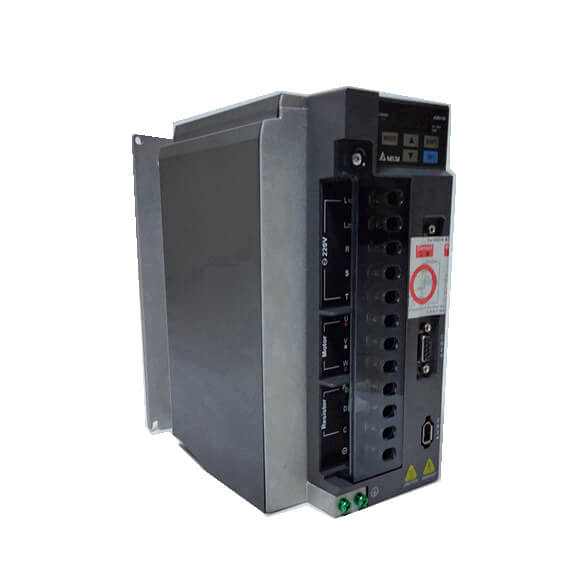

Delta ASDA-B2 Servo Drive 3kW ASD-B2-3023-B

Series#: Delta

Product Details

Delta ASDA-B2 Servo Drive ASD-B2-3023-B – A high-performance 3kW AC servo drive engineered for precision motion control in demanding industrial automation.
17-bit (160,000 p/rev) encoder resolution delivers ultra-smooth, high-accuracy positioning for CNC and robotics applications.
Advanced SVPWM control with auto/manual tuning modes ensures optimal torque and speed regulation across all load conditions.
Built-in dynamic brake (for 750W and above) and fan cooling system guarantee reliable performance under continuous heavy loads.
Wide input voltage range: Three-phase 170–255 VAC, 50/60 Hz ±5% – compatible with global power grids.
Versatile command sources: external pulse train, analog signals, or internal parameters, with up to 4 MHz pulse input for high-speed operations.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Delta ASDA-B2 Servo Drive ASD-B2-3023-B is a robust 3kW AC servo drive designed to meet the rigorous demands of modern industrial automation. Featuring a 17-bit absolute encoder feedback system, this drive ensures exceptional positioning accuracy and smooth motion control for applications such as CNC machinery, packaging equipment, and robotic arms. With support for both pulse train and analog command inputs, along with advanced tuning algorithms, the ASD-B2-3023-B offers unparalleled flexibility and performance in high-speed, high-torque environments.

Specification	100W	200W	400W	750W	1kW	1.5kW	2kW	3kW (ASD-B2-3023-B)
Continuous Output Current	0.9 Arms	1.55 Arms	2.6 Arms	5.1 Arms	7.3 Arms	8.3 Arms	13.4 Arms	19.4 Arms
Phase / Voltage	Three-phase: 170–255 VAC, 50/60 Hz ±5% Single-phase: 200–255 VAC, 50/60 Hz ±5%	Three-phase: 170–255 VAC, 50/60 Hz ±5%
Cooling System	Natural Air Circulation	Fan Cooling
Encoder Resolution / Feedback Resolution	17-bit (160,000 p/rev)
Control of Main Circuit	SVPWM Control
Tuning Modes	Auto / Manual
Dynamic Brake	–	Built-in
Max. Input Pulse Frequency	Line driver: Max. 500 Kpps (low speed) / Max. 4 Mpps (high speed) Open collector: Max. 200 Kpps
Pulse Type	Pulse + Direction, A phase + B phase, CCW pulse + CW pulse
Command Source	External pulse train / Internal parameters
Smoothing Strategy (Position)	Low-pass filter
Electronic Gear	N/M multiple: N: 1 to (2^26 – 1), M: 1 to (2^31 – 1) Ratio range: 1/50 < N/M < 25600
Torque Limit Operation	Set by parameters
Feed Forward Compensation	Set by parameters
Analog Input Command Voltage Range	0 to ±10 VDC
Input Resistance	10 kΩ
Time Constant	2.2 µs
Speed Control Range	3.5:1
Command Source (Speed)	External analog signal / Internal parameters
Smoothing Strategy (Speed)	Low-pass and S-curve filter
Torque Limit Operation (Speed)	Set by parameters or via analog input
Responsiveness Characteristic	Maximum 550 Hz
