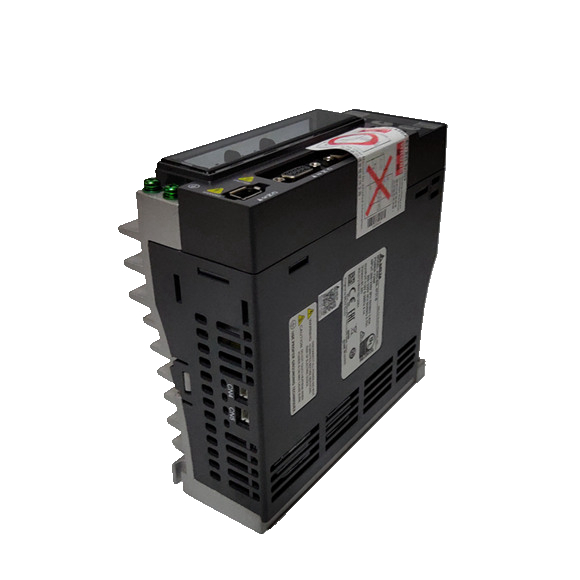

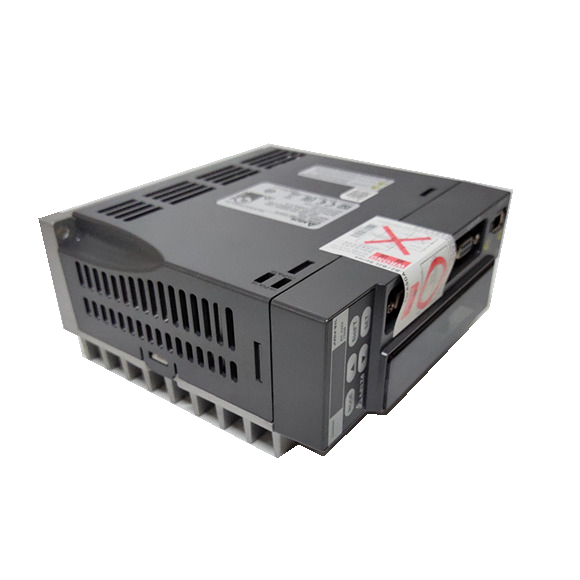

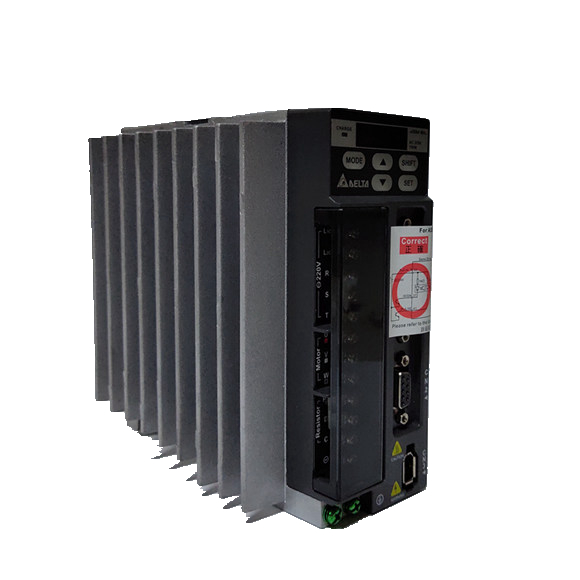

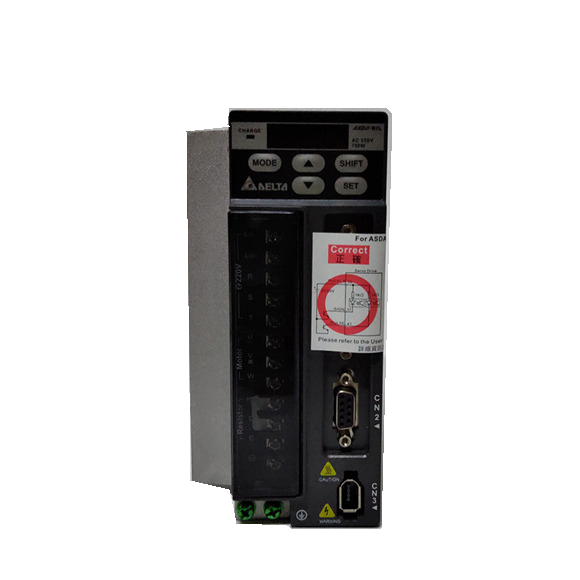

Delta ASDA-B2 Servo Drive 750W ASD-B2L-0721-B

Series#: Delta

Product Details

Delta ASDA-B2 Servo Drive 750W model ASD-B2L-0721-B delivers precise motion control for industrial automation.
Equipped with 17-bit (160,000 p/rev) encoder for high-resolution feedback and accurate positioning.
Supports SVPWM control with auto/manual tuning modes for optimized system response.
Built-in dynamic brake on 750W and above models enhances safety and deceleration control.
Wide input pulse frequency range up to 4Mpps line driver for high-speed applications.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Delta ASDA-B2L-0721-B is a 750W servo drive from the renowned ASDA-B2 series, engineered for demanding motion control tasks in packaging, textile, and CNC machinery. This drive combines advanced SVPWM control with a 17-bit encoder to deliver smooth torque and speed regulation. Its versatile command inputs—external pulse train, analog signals, or internal parameters—allow seamless integration into diverse systems. With a maximum responsiveness of 550Hz and multiple smoothing filters (low-pass and S-curve), the ASD-B2L-0721-B ensures stable operation even under dynamic loads. The built-in dynamic brake on 750W models provides reliable stopping, while the electronic gear ratio (1/50 < N/M < 25600) simplifies axis scaling. This unit is ideal for applications requiring high-speed precision, such as pick-and-place, cutting, and indexing.

Parameter	Specification
Model	ASD-B2L-0721-B (750W)
Rated Power	750W
Continuous Output Current	5.1 Arms
Phase / Voltage	Three-phase: 170 ~ 255 VAC, 50/60 Hz ±5%; Single-phase: 200 ~ 255 VAC, 50/60 Hz ±5%
Cooling System	Fan Cooling
Encoder Resolution	17-bit (160,000 p/rev)
Control Method	SVPWM Control
Tuning Modes	Auto / Manual
Dynamic Brake	Built-in
Max. Input Pulse Frequency	Line driver: 500 Kpps (low speed) / 4 Mpps (high speed); Open collector: 200 Kpps
Pulse Type	Pulse + Direction, A phase + B phase, CCW pulse + CW pulse
Command Source	External pulse train / Internal parameters
Electronic Gear	N/M multiple; N: 1 ~ (2^26-1), M: 1 ~ (2^31-1); 1/50 < N/M < 25600
Analog Input Voltage Range	0 ~ ±10 VDC
Input Resistance	10 kΩ
Time Constant	2.2 μs
Speed Control Range	1:5000 (typical)
Torque Limit Operation	Set by parameters or via analog input
Feed Forward Compensation	Set by parameters
Responsiveness	Maximum 550 Hz
Smoothing Strategy	Low-pass and S-curve filter
Protection	Overcurrent, overvoltage, undervoltage, overload, encoder error, etc.
Weight	Approx. 1.5 kg
