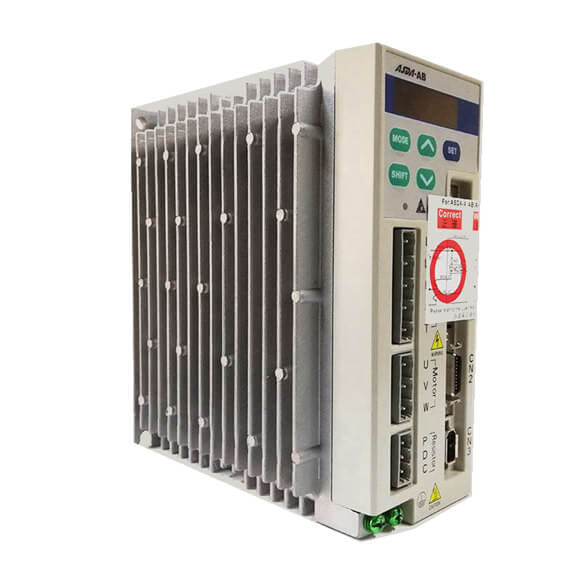

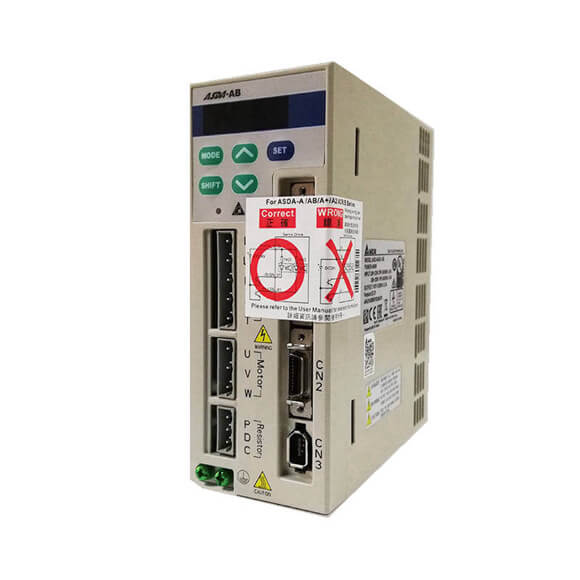

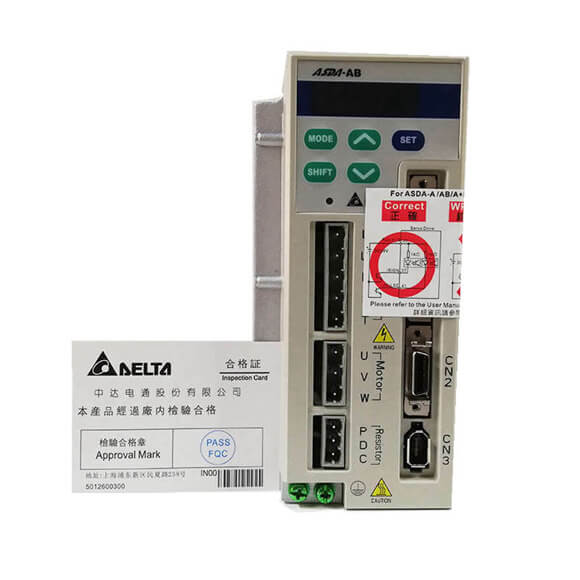

Delta ASDA-AB Servo Drive 400W ASD-A0411-AB

Series#: Delta

Product Details

The DELTA ASDA-AB SERVO DRIVE 400W ASD-A0411-AB delivers precision motion control for industrial automation applications.
Rated at 400W output power with a continuous current rating of 2.8A and peak current of 8.4A.
Supports high-speed encoder feedback (20-bit incremental) for accurate positioning and smooth operation.
Compact design with built-in brake control and emergency stop functionality for safety-critical systems.
Compatible with Delta’s ASDA-A series motors and controllers for seamless integration.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The DELTA ASDA-AB SERVO DRIVE 400W ASD-A0411-AB is a high-performance servo drive engineered for precise torque, speed, and position control in demanding industrial environments. This model features advanced digital signal processing for real-time tuning and low vibration, making it ideal for applications such as packaging, textile machinery, and robotic arms. With a robust design and comprehensive protection features, it ensures reliable operation under continuous duty cycles.

Parameter	Specification
Model	ASD-A0411-AB
Rated Power	400 W
Rated Output Current	2.8 A (RMS)
Peak Output Current	8.4 A (RMS)
Input Voltage	Single-phase or Three-phase AC 200–230 V, 50/60 Hz
Control Mode	Position, Speed, Torque
Encoder Feedback	20-bit Incremental Encoder (2500 ppr x 4)
Communication Interface	Pulse Train, Analog Input, Digital I/O
Protection Features	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Encoder Error
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 70°C
Dimensions (W x H x D)	60 mm x 170 mm x 155 mm (approx.)
Weight	Approx. 1.2 kg
Compatible Motor Series	Delta ECMA series (400W frame)
Certifications	CE, UL (pending)
