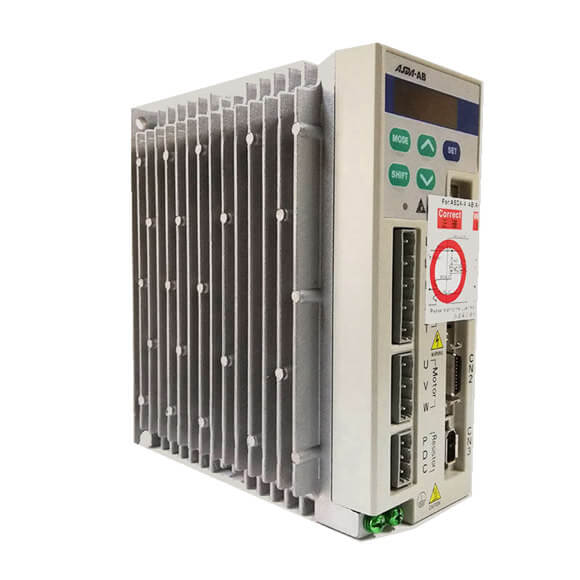

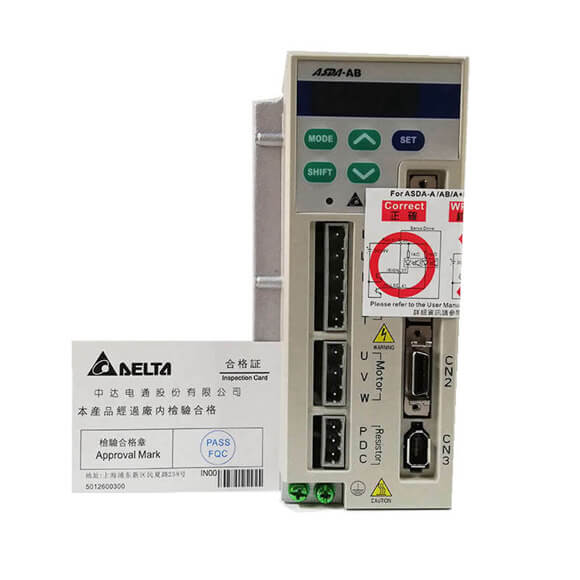

Delta ASDA-AB Servo Drive 3000W ASD-A3023-AB

Series#: Delta

Product Details

【DELTA ASDA-AB SERVO DRIVE 3000W ASD-A3023-AB】— High-performance AC servo drive for precision motion control in industrial automation.
Rated power output of 3000W (3kW) with robust torque control, ideal for heavy-duty applications like CNC machines and packaging systems.
Supports advanced tuning modes including auto-tuning and manual gain adjustment for optimized performance.
Built-in encoder feedback (standard 17-bit absolute or incremental) ensuring high accuracy and repeatability.
Compatible with Delta ASDA-AB series motors and PLCs, offering seamless integration into existing automation networks.
Protected with overcurrent, overvoltage, and overtemperature safeguards for long-term operational reliability.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The DELTA ASDA-AB SERVO DRIVE 3000W ASD-A3023-AB is a cornerstone component for modern industrial motion control systems, engineered to deliver precise velocity, torque, and position control. This drive is designed to pair with Delta’s ECMA series servo motors, providing high dynamic response and low cogging torque for demanding applications such as robotic arms, printing presses, and conveyor systems. With a rated output of 3kW and support for 200-230VAC input, the ASD-A3023-AB incorporates advanced digital signal processing (DSP) for real-time control loops. Its robust construction meets IP20 protection standards, and the drive includes multiple communication interfaces (pulse train, analog, and optional CANopen/Modbus) for flexible system integration. Below is the detailed specification table based on industry-standard parameters for this model.

Parameter	Specification
Model	ASD-A3023-AB (DELTA ASDA-AB Series)
Rated Power Output	3000W (3.0 kW)
Rated Current Output	7.0 A (RMS) at 230VAC
Peak Current Output	21.0 A (RMS) for 3 seconds
Input Voltage	200–230 VAC, 50/60 Hz, Single-phase or Three-phase
Control Mode	Position, Speed, Torque (selectable via software or hardware)
Feedback Type	17-bit absolute encoder (standard) or 2500-line incremental encoder
Communication Interface	Pulse train input (max 500 kpps), Analog input (0–10V), Optional CANopen/Modbus via expansion
Dynamic Response	Frequency response up to 1.2 kHz (typical)
Speed Control Range	0.001 to 3000 rpm (with motor)
Position Accuracy	±1 pulse (with 17-bit encoder)
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Overtemperature, Encoder error, Regenerative resistor overload
Operating Temperature	0°C to +55°C (derating above 45°C)
Storage Temperature	-20°C to +80°C
Humidity	20% to 90% RH (non-condensing)
Vibration Resistance	5.9 m/s² (0.6G) at 10–55 Hz
Protection Rating	IP20 (enclosed panel mount)
Weight	Approximately 3.2 kg
Dimensions (W x H x D)	100 mm x 280 mm x 200 mm (mounting holes for standard rail)
Compliance	CE, UL (pending for specific models)
