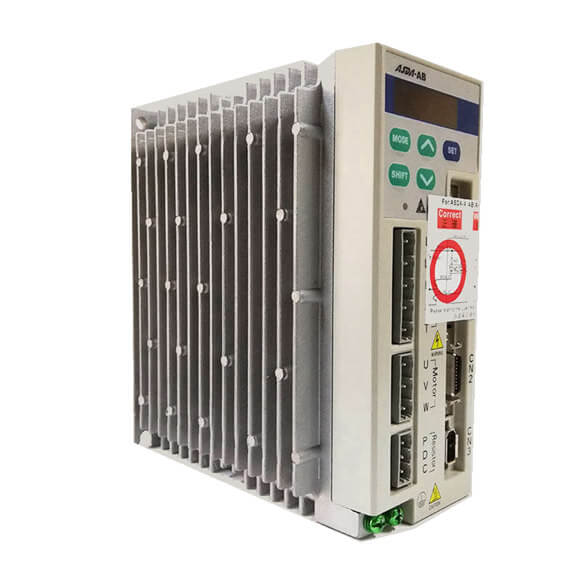

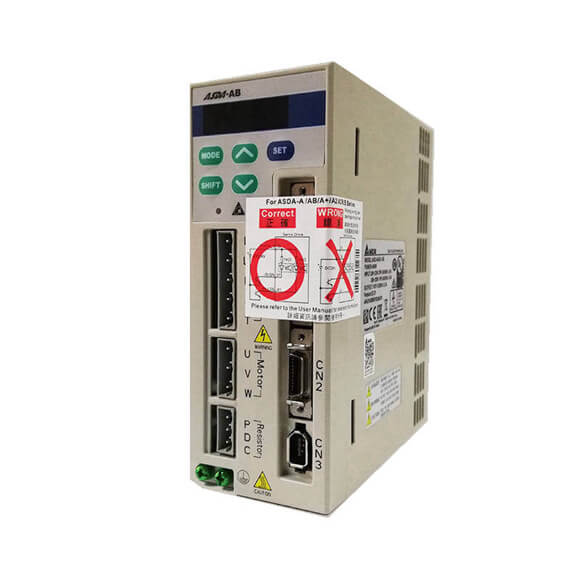

Delta ASDA-AB Servo Drive 200W ASD-A0221-AB

Series#: Delta

Product Details

Model: DELTA ASDA-AB SERVO DRIVE 200W ASD-A0221-AB – High-performance servo drive for precision motion control applications.
Rated output power of 200W (0.2 kW) – Ideal for small-to-medium automation tasks like indexing, positioning, and speed control.
Advanced ASDA-AB series architecture – Supports position, speed, and torque control modes with high-resolution encoder feedback.
Built-in dynamic braking and overcurrent protection – Ensures reliable operation in harsh industrial environments.
Compact footprint with easy DIN-rail or panel mounting – Simplifies integration into existing control cabinets.
Comprehensive diagnostic LEDs and communication interface – Enables quick setup and real-time monitoring via standard pulse train or analog inputs.

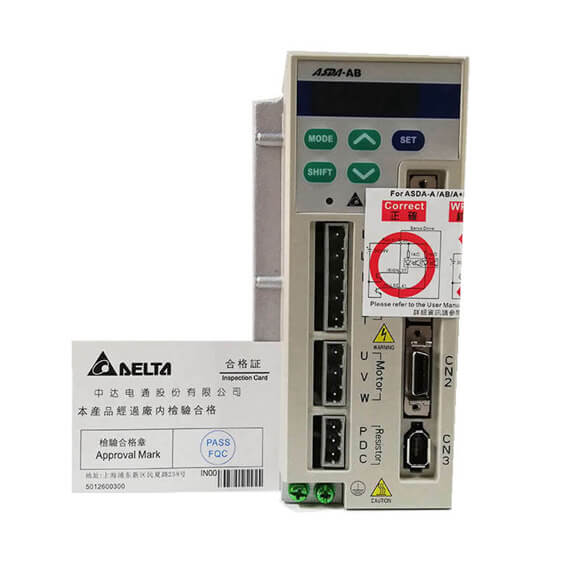

100% Genuine and New, rigorously inspected before international dispatch.

Specification

The DELTA ASDA-AB SERVO DRIVE 200W ASD-A0221-AB is a robust and precise servo drive engineered for demanding automation systems. Designed as part of the ASDA-AB series, this 200-watt drive delivers exceptional torque and speed control for applications such as pick-and-place machines, conveyor indexing, and packaging equipment. Its modular construction and high-resolution encoder compatibility ensure seamless integration with PLCs and motion controllers, while the built-in protection features safeguard against electrical faults. Whether you are upgrading a legacy system or building a new production line, the ASD-A0221-AB offers reliable performance with minimal maintenance requirements.

Parameter	Specification
Model Number	DELTA ASD-A0221-AB (ASDA-AB Series)
Rated Output Power	200 W (0.2 kW)
Rated Output Current	1.2 A (RMS)
Peak Output Current	3.6 A (RMS, for 3 seconds)
Input Power Supply	Single-phase or three-phase AC 200–240 V, 50/60 Hz
Control Mode	Position, Speed, Torque (selectable via software or hardware)
Encoder Feedback	Incremental encoder (20-bit resolution, standard)
Communication Interface	Pulse train (CW/CCW, P/D), analog command (±10 V), RS-232/RS-485 (optional)
Protection Functions	Overcurrent, overvoltage, undervoltage, overload, overheating, encoder error
Dynamic Braking	Built-in, activated on fault or stop
Operating Temperature	0°C to +50°C (32°F to 122°F)
Storage Temperature	-20°C to +70°C (-4°F to 158°F)
Humidity Range	20% to 90% RH (non-condensing)
Vibration Resistance	5.9 m/s² (0.6 G) at 10–55 Hz
Mounting Method	Panel mounting (screw type) or DIN-rail (optional adapter)
Dimensions (W x H x D)	Approx. 60 mm x 170 mm x 140 mm (2.36 in x 6.69 in x 5.51 in)
Weight	Approx. 0.9 kg (1.98 lbs)
Compliance	CE, UL (pending), RoHS
