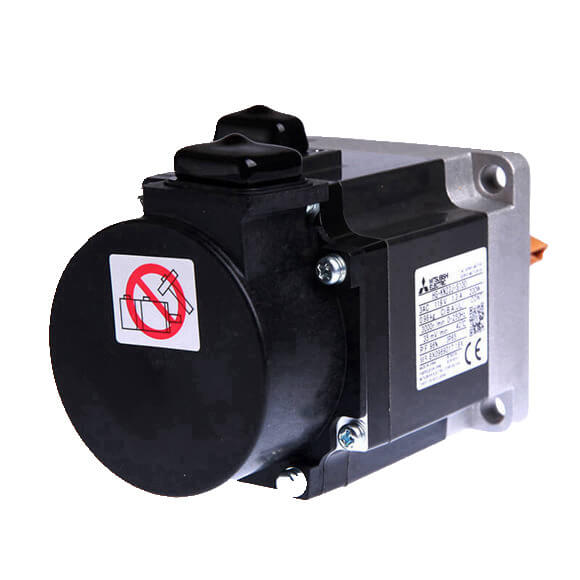

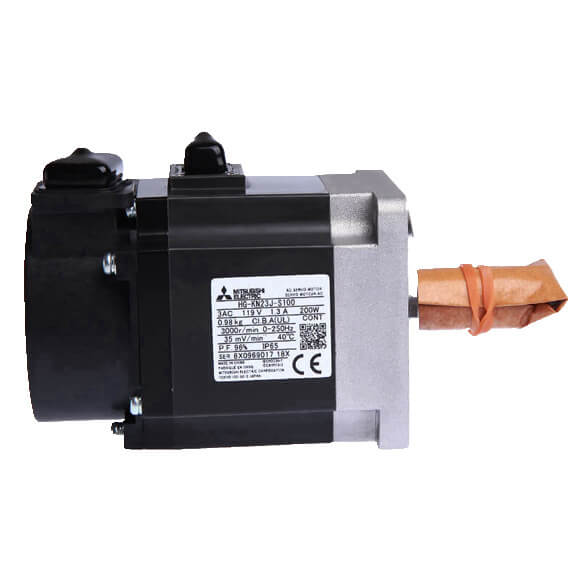

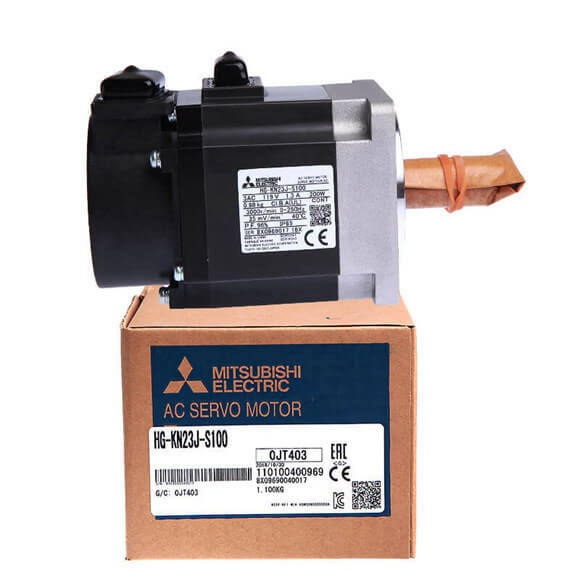

Mitsubishi HG-KN23BJ-S100 Servomotor With Brake 200W

Series#: Mitsubishi

Product Details

Model: MITSUBISHI MELSERVO-JE SERVOMOTOR WITH BRAKE 200W HG-KN23BJ-S100 – precision motion control solution.
Rated output of 200W with high torque density: 0.64 Nm rated, 1.9 Nm peak for demanding applications.
High-speed performance: 3000 r/min rated, 5000 r/min maximum, 5750 r/min permissible instantaneous speed.
Integrated 17-bit absolute/incremental encoder (131,072 pulses/rev) for precise feedback and positioning.
IP65 totally enclosed, natural cooling structure with oil seal – ideal for harsh industrial environments.
Equipped with electromagnetic brake for safety and holding torque in vertical or emergency stop scenarios.
100% Genuine and New, rigorously inspected before international dispatch.

Specification

The MITSUBISHI MELSERVO-JE SERVOMOTOR WITH BRAKE 200W HG-KN23BJ-S100 is a high-performance servo motor engineered for precision automation in packaging, robotics, and machine tool applications. This 200W model delivers exceptional torque density with a rated torque of 0.64 N·m and a maximum torque of 1.9 N·m, enabling rapid acceleration and deceleration. Its 17-bit absolute encoder supports both incremental and absolute feedback modes, ensuring accurate positioning and smooth operation at speeds up to 5000 r/min. The integrated electromagnetic brake provides reliable holding torque, making it suitable for vertical axes and safety-critical systems. Built with an IP65-rated totally enclosed structure and oil seal, the HG-KN23BJ-S100 withstands dust, moisture, and vibration in demanding factory floors. With a recommended load-to-motor inertia ratio of 15 times or less, this motor pairs seamlessly with MR-JE-B or MR-JE-A amplifiers for optimized system performance.

Parameter	HG-KN13(B)J (100W)	HG-KN23(B)J (200W)	HG-KN43(B)J (400W)	HG-KN73(B)J (750W)
Power supply capacity [kVA]	0.3	0.5	0.9	1.3
Rated output [W]	100	200	400	750
Rated torque [N·m]	0.32	0.64	1.3	2.4
Maximum torque [N·m]	0.95	1.9	3.8	7.2
Rated speed [r/min]	3000
Maximum speed [r/min]	5000
Permissible instantaneous speed [r/min]	5750
Rated current [A]	0.8	1.3	2.6	4.8
Maximum current [A]	2.4	3.9	7.8	14
Regenerative braking frequency [times/min]	Note 4	Note 5	276	159
Recommended load to motor inertia ratio	15 times or less
Combination with MR-JE-B	Absolute/incremental 17-bit encoder (resolution: 131072 pulses/rev)
Combination with MR-JE-A	Incremental 17-bit encoder (resolution: 131072 pulses/rev)
Oil seal	Installed (without oil seal also available)	Installed
Insulation class	130 (B)
Structure	Totally enclosed, natural cooling (IP65)
Ambient temperature	Operation: 0°C to 40°C (non-freezing); Storage: -15°C to 70°C (non-freezing)
Ambient humidity	Operation: 80%RH max (non-condensing); Storage: 90%RH max (non-condensing)
Ambience	Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Altitude	1000 m or less above sea level
Vibration resistance	X: 49 m/s²; Y: 49 m/s²
Vibration rank	V10
Standard weight [kg]	0.6	0.98	1.5	3
With electromagnetic brake weight [kg]	0.8	1.4	1.9	4
