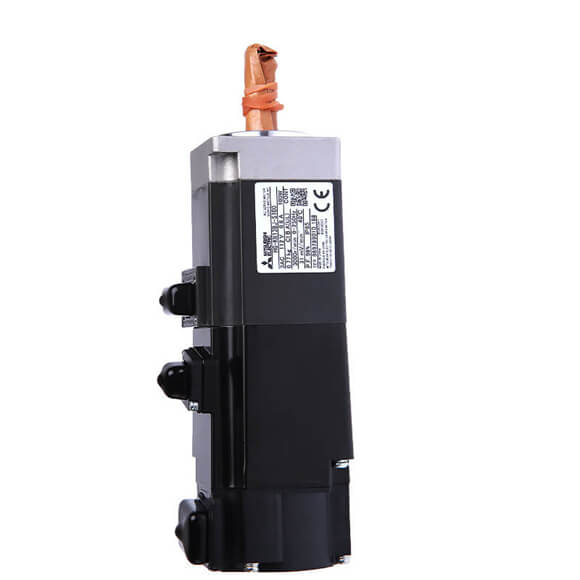

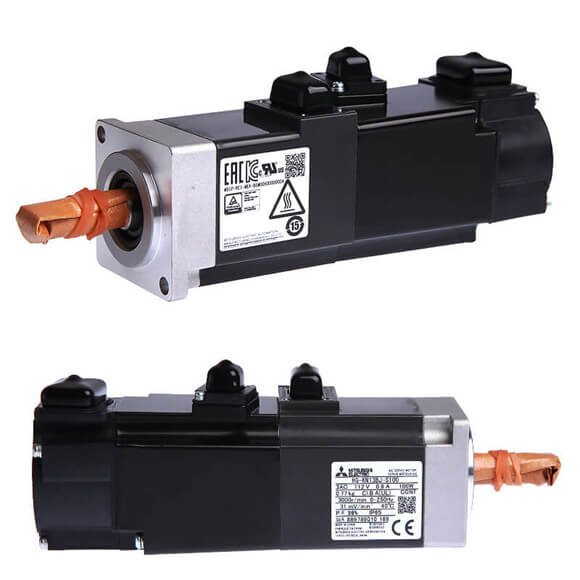

Mitsubishi HG-KN13BJ-S100 Servomotor With Brake 100W

Series#: Mitsubishi

Product Details

MITSUBISHI HG-KN13BJ-S100 – High-performance 100W MELSERVO-JE servo motor with integrated electromagnetic brake for precision holding.
Rated torque of 0.32 Nm and maximum torque of 0.95 Nm for dynamic motion control.
Equipped with a 17-bit absolute/incremental encoder (131,072 pulses/rev) for ultra-fine positioning.
IP65 protection rating – Totally enclosed, natural cooling design for harsh industrial environments.
Compact and lightweight at only 0.8 kg with brake, ideal for space-constrained applications.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The MITSUBISHI HG-KN13BJ-S100 is a 100W servo motor from the renowned MELSERVO-JE series, specifically designed with an electromagnetic brake to ensure safe and reliable holding torque in vertical or high-inertia applications. This motor delivers a rated speed of 3000 r/min and a maximum speed of 5000 r/min, making it an excellent choice for precision automation tasks such as pick-and-place, packaging, and assembly lines. Its robust construction includes an IP65 rating for dust and water resistance, and it operates seamlessly with MR-JE-B or MR-JE-A servo amplifiers for absolute or incremental feedback. Below are the detailed technical specifications for the HG-KN13BJ-S100 and related models:

Parameter	HG-KN13BJ-S100	HG-KN23BJ-S100	HG-KN43BJ-S100	HG-KN73BJ-S100
Rated Output [W]	100	200	400	750
Power Supply Capacity [kVA]	0.3	0.5	0.9	1.3
Rated Torque [N·m]	0.32	0.64	1.3	2.4
Maximum Torque [N·m]	0.95	1.9	3.8	7.2
Rated Speed [r/min]	3000
Maximum Speed [r/min]	5000
Permissible Instantaneous Speed [r/min]	5750
Rated Current [A]	0.8	1.3	2.6	4.8
Maximum Current [A]	2.4	3.9	7.8	14
Regenerative Braking Frequency [times/min]	Note 4	Note 5	276	159
Recommended Load to Motor Inertia Ratio	15 times or less
Encoder Type (with MR-JE-B)	Absolute/Incremental 17-bit (131072 pulses/rev)
Encoder Type (with MR-JE-A)	Incremental 17-bit (131072 pulses/rev)
Oil Seal	Installed (without oil seal also available)	Installed
Insulation Class	130 (B)
Structure	Totally enclosed, natural cooling (IP65)
Ambient Temperature	Operation: 0°C to 40°C (non-freezing); Storage: -15°C to 70°C (non-freezing)
Ambient Humidity	Operation: 80% RH max (non-condensing); Storage: 90% RH max (non-condensing)
Ambience	Indoors (no direct sunlight); no corrosive gas, inflammable gas, oil mist or dust
Altitude	1000 m or less above sea level
Vibration Resistance	X: 49 m/s²; Y: 49 m/s²
Vibration Rank	V10
Standard Weight [kg]	0.6	0.98	1.5	3
Weight with Brake [kg]	0.8	1.4	1.9	4
