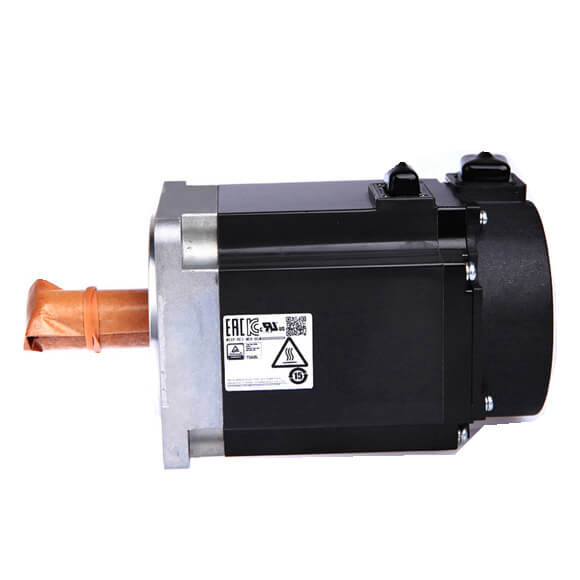

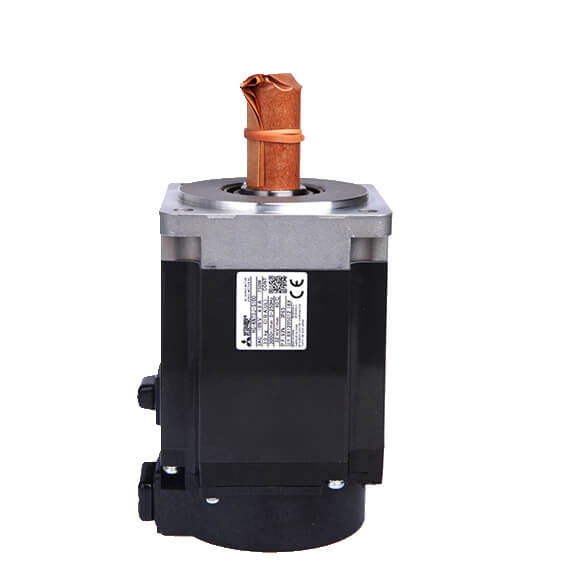

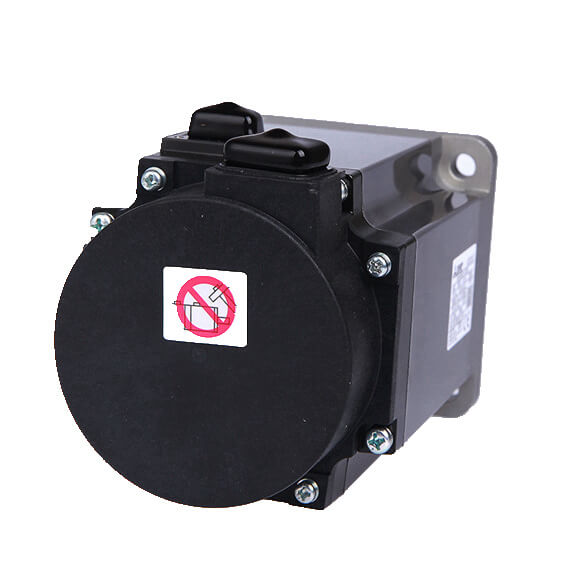

The MITSUBISHI MELSERVO-JE SERVOMOTOR WITH BREAK 700W HG-KN73BJ-S100 is a robust and reliable AC servo motor designed for demanding motion control applications. This model features a built-in electromagnetic brake that ensures secure holding torque during power-off conditions, making it ideal for vertical axes, robotic arms, and other safety-critical systems. With a rated output of 700W and a high-resolution 22-bit incremental encoder, it delivers precise speed, position, and torque control across a wide operating range. The motor is factory-tested and comes with a standard IP65 protection rating (excluding shaft and connector), ensuring durability in dusty or wet environments. It is fully compatible with MITSUBISHI MELSERVO-JE series amplifiers, enabling seamless integration and advanced performance tuning. Below is the detailed technical specification table for this model.
| Parameter |
Specification |
| Model Number |
HG-KN73BJ-S100 |
| Series |
MELSERVO-JE |
| Motor Type |
AC Servo Motor with Brake |
| Rated Output Power |
700 W (0.7 kW) |
| Rated Torque |
2.39 N·m |
| Maximum Torque |
7.17 N·m (300% rated) |
| Rated Speed |
3000 r/min |
| Maximum Speed |
6000 r/min |
| Encoder Type |
22-bit Incremental Encoder (resolution: 4,194,304 pulses/rev) |
| Brake Specification |
Electromagnetic Brake, Holding Torque: 2.0 N·m (minimum) |
| Brake Voltage |
24 VDC ±10% |
| Brake Current |
0.5 A (at 24 VDC) |
| Shaft Type |
Straight Shaft with Keyway (D-cut optional) |
| Shaft Diameter |
14 mm (h6 tolerance) |
| Flange Size |
60 mm square (IEC standard) |
| Overall Length (without connector) |
Approx. 120 mm |
| Weight |
Approx. 3.5 kg (including brake) |
| Protection Class |
IP65 (excluding shaft and connector) |
| Insulation Class |
Class F (155°C) |
| Ambient Temperature Range |
0°C to +40°C (operation), -15°C to +70°C (storage) |
| Ambient Humidity Range |
20% to 80% RH (non-condensing) |
| Vibration Resistance |
5.9 m/s² (0.6 G) at 10-55 Hz (during operation) |
| Compatible Amplifier |
MELSERVO-JE Series (e.g., MR-JE-70A, MR-JE-70B) |
| Connection Type |
Standard connector kit (included) |
| Standards Compliance |
CE, UL, RoHS |
