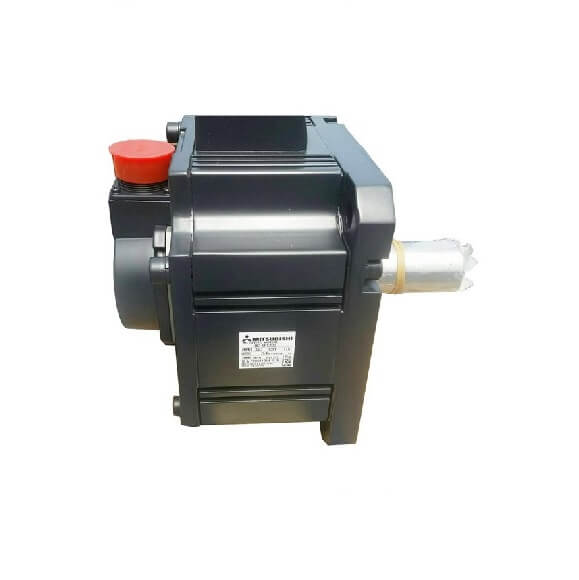

The MITSUBISHI MELSERVO-J2S SERVOMOTOR 2KW HC-SFS202 is a cornerstone of the MELSERVO-J2S series, engineered for industries requiring precise speed, torque, and position control. This 2.0 kW servo motor delivers reliable performance in applications such as CNC machinery, robotic arms, packaging systems, and material handling equipment. Its advanced 17-bit absolute encoder provides high-resolution feedback, while the optimized magnetic circuit design ensures smooth operation even at low speeds. Backed by Mitsubishi's proven reliability, the HC-SFS202 is a direct replacement for legacy J2S systems, offering easy retrofitting and minimal downtime. Below is the detailed technical specification table.
| Specification |
Details |
| Model Number |
HC-SFS202 |
| Series |
MELSERVO-J2S |
| Rated Output Power |
2.0 kW (2.0 HP) |
| Rated Torque |
9.55 N·m |
| Maximum Torque |
28.6 N·m (300% overload) |
| Rated Speed |
2000 RPM |
| Maximum Speed |
3000 RPM |
| Encoder Type |
17-bit absolute encoder (131072 pulses/rev) |
| Encoder Resolution |
131,072 ppr |
| Rotor Inertia |
0.00067 kg·m² |
| Permissible Load Inertia Ratio |
Up to 10:1 (standard models) |
| Insulation Class |
Class B (130°C) |
| Voltage Type |
AC Servo (3-phase, 200-230 VAC) |
| Rated Current |
8.0 A |
| Protection Rating |
IP65 (excluding shaft and connector) |
| Ambient Temperature |
0°C to 40°C (operating) |
| Ambient Humidity |
20% to 80% RH (non-condensing) |
| Vibration Resistance |
5.9 m/s² (0.6 G) max |
| Brake Option |
Optional (with electromagnetic brake models) |
| Shaft Type |
Straight shaft with keyway (standard models) |
| Weight |
Approx. 6.5 kg |
| Connector Type |
Standard round connector (MIL-spec compatible) |
| Compatible Amplifier |
MELSERVO-J2S series (e.g., MR-J2S-200A or similar) |
| Certifications |
CE, UL, cUL (varies by model) |
| Warranty |
12 months from date of shipment |
