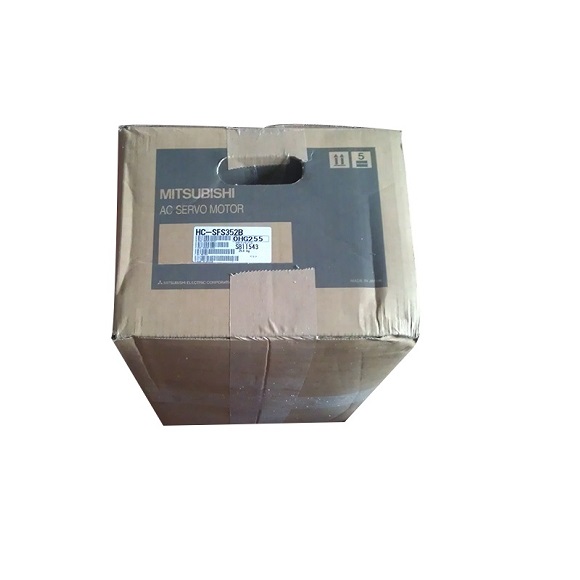

Mitsubishi MELSERVO-J2S Servomotor 3.5kW HC-SFS352

Series#: Mitsubishi

Product Details

MITSUBISHI MELSERVO-J2S SERVOMOTOR 3.5KW HC-SFS352 – High-performance AC servo motor for precision motion control applications.
Rated output of 3.5 kW with a rated torque of 16.7 Nm, ensuring robust and reliable operation in demanding industrial environments.
Advanced encoder feedback (17-bit absolute or incremental) for high-resolution position and speed control, enhancing system accuracy.
Built-in electromagnetic brake option for fail-safe holding in vertical or emergency-stop applications, increasing operational safety.
Compact and rugged design with IP67 protection rating, suitable for harsh conditions including dust and water splash.
Seamless integration with Mitsubishi MELSERVO-J2S series servo amplifiers, providing plug-and-play compatibility and reduced setup time.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The MITSUBISHI MELSERVO-J2S SERVOMOTOR 3.5KW HC-SFS352 is a cornerstone of modern servo drive systems, engineered for high-torque density and dynamic response in automation tasks such as CNC machining, packaging, and robotics. This AC servo motor leverages Mitsubishi's proven J2S platform, offering a balance of power and precision with a rated speed of 2000 rpm and a maximum speed of 3000 rpm. Its 17-bit encoder ensures smooth low-speed operation and precise positioning, making it ideal for applications requiring tight tolerances. The HC-SFS352 model features a standard shaft with keyway and oil seal, supporting direct coupling to loads. Built with Class F insulation and a robust frame, it delivers consistent performance under continuous duty cycles. Below is the detailed specification table for the MITSUBISHI MELSERVO-J2S SERVOMOTOR 3.5KW HC-SFS352, based on industry-standard parameters.

Parameter	Specification
Model	HC-SFS352 (Standard AC Models)
Rated Output Power	3.5 kW
Rated Torque	16.7 N·m
Maximum Torque	50.1 N·m (at 300% overload)
Rated Speed	2000 rpm
Maximum Speed	3000 rpm
Rated Current	18.0 A
Maximum Current	54.0 A
Encoder Type	17-bit absolute/incremental (resolution: 131072 ppr)
Insulation Class	Class F (155°C)
Protection Rating	IP67 (excluding shaft and connector)
Brake Option	Electromagnetic brake (DC 24V, holding torque 16.7 N·m)
Shaft Type	Straight shaft with keyway and oil seal (standard)
Vibration Grade	V-15 (max 15 µm)
Ambient Temperature	0°C to +40°C (operation), -15°C to +70°C (storage)
Humidity Range	20% to 80% RH (non-condensing)
Weight	Approx. 15.0 kg
Mounting Method	Flange-mounted (B5 or V1 compatible)
Connector Type	MS3106A-20-16S (power) and MS3106A-20-16P (encoder)
