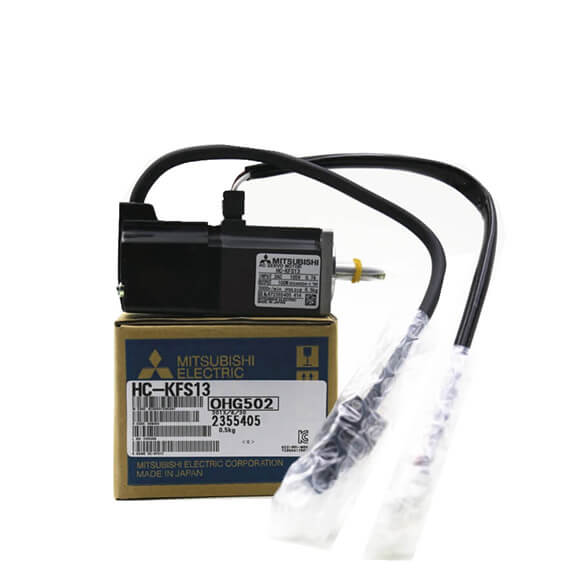

The MITSUBISHI MELSERVO-J2S SERVOMOTOR 100W HC-KFS13 is a robust and precise AC servo motor engineered for demanding industrial automation environments. Designed as part of the renowned MELSERVO-J2S series, this 100W motor delivers exceptional torque and speed control, making it suitable for applications such as small pick-and-place machines, conveyor drives, and packaging equipment. Its advanced 17-bit encoder ensures high-resolution feedback, while the compact form factor allows easy installation in tight spaces. For optimal performance, pair the HC-KFS13 with a compatible MELSERVO-J2S amplifier, such as the MR-J2S-10A or MR-J2S-20A, depending on your system requirements.
| Parameter |
Specification |
| Model |
MITSUBISHI MELSERVO-J2S HC-KFS13 |
| Rated Output |
100 W (0.1 kW) |
| Rated Torque |
0.32 N·m |
| Maximum Torque |
0.96 N·m (300% overload) |
| Rated Speed |
3000 r/min |
| Maximum Speed |
5000 r/min |
| Encoder Type |
17-bit incremental encoder (131,072 pulses/rev) |
| Power Supply |
AC 200 V (3-phase or single-phase, depending on amplifier) |
| Insulation Class |
Class B (130°C) |
| Protection Rating |
IP55 (excluding shaft and connector) |
| Shaft Type |
Straight shaft with keyway (standard) |
| Flange Size |
60 mm square (IEC standard) |
| Weight |
Approx. 1.0 kg |
| Ambient Temperature |
0 to 40°C (operation) |
| Ambient Humidity |
20% to 80% RH (non-condensing) |
| Vibration Resistance |
≤ 49 m/s² (5 G) |
| Compatible Amplifiers |
MR-J2S-10A, MR-J2S-20A, MR-J2S-40A (for 100W models) |
| Brake Option |
Available as HC-KFS13B (with electromagnetic brake) |
| Application |
Assembly robots, labeling machines, CNC feeders, small conveyors |
