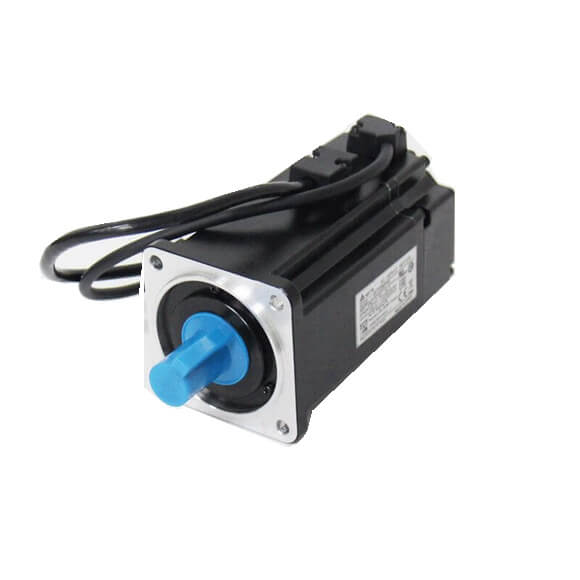

Delta ECMA-C20602RS Servo Motor

Series#: Delta

Product Details

DELTA ECMA-C20602RS 200W Servo Motor – precisely engineered for high-performance motion control applications.
Rated power: 200W, rated torque: 0.64 N.m, and rated speed: 3000 rpm for reliable operation.
Equipped with a 20-bit incremental encoder for exceptional positioning accuracy and smooth low-speed performance.
Low-inertia rotor design ensures rapid acceleration and deceleration, ideal for dynamic applications.
Includes key-way shaft and standard connectors (CN1, CN2, power terminals) for easy integration; cables sold separately.

Specification

The DELTA ECMA-C20602RS is a 200W servo motor from the ECMA series, designed to deliver precise, high-speed motion control for industrial automation systems. This low-inertia motor features a 20-bit encoder for superior feedback resolution, ensuring accurate positioning and smooth operation even at low speeds. With a rated torque of 0.64 N.m and a maximum speed of 3000 rpm, it is ideal for applications requiring quick response and reliable performance. The motor comes without a brake and without an oil seal, but includes a key-way shaft for secure coupling. It is supplied with all standard connectors (CN1, CN2, and power terminals), though cables are not included.

Motor Model	Rated Power	Rated Torque	Rated Speed	Encoder Resolution	Inertia Type	Brake	Oil Seal	Shaft Key	Connectors Included
ECMA-C20602RS	200 W	0.64 N.m	3000 rpm	20-bit	Low	Without	Without	With key-way	CN1, CN2, Power Terminals
ECMA-C20401FS	200 W	0.64 N.m	3000 rpm	20-bit	Low	With	Without	With key-way	CN1, CN2, Power Terminals
ECMA-C10602ES	200 W	0.64 N.m	3000 rpm	20-bit	Low	Without	Without	With key-way	CN1, CN2, Power Terminals
ECMA-C10602FS	200 W	0.64 N.m	3000 rpm	20-bit	Low	With	Without	With key-way	CN1, CN2, Power Terminals
ECMA-C10604ES	400 W	1.27 N.m	3000 rpm	20-bit	Low	Without	Without	With key-way	CN1, CN2, Power Terminals
ECMA-C10604FS	400 W	1.27 N.m	3000 rpm	20-bit	Low	With	Without	With key-way	CN1, CN2, Power Terminals
ECMA-C10807ES	750 W	2.39 N.m	3000 rpm	20-bit	Low	Without	Without	With key-way	CN1, CN2, Power Terminals
ECMA-C10807FS	750 W	2.39 N.m	3000 rpm	20-bit	Low	With	Without	With key-way	CN1, CN2, Power Terminals
ECMA-C11010ES	1 kW	3.18 N.m	3000 rpm	20-bit	Low	Without	Without	With key-way	CN1, CN2, Power Terminals
ECMA-C11010FS	1 kW	3.18 N.m	3000 rpm	20-bit	Low	With	Without	With key-way	CN1, CN2, Power Terminals
ECMA-E21310PS	1 kW	4.77 N.m	2000 rpm	20-bit	Low	Without	Without	With key-way (screw holes)	CN1, CN2, Power Terminals
ECMA-E21315ES	1.5 kW	7.16 N.m	2000 rpm	20-bit	Middle	Without	Without	With key-way	CN1, CN2, Power Terminals
ECMA-E11315FS	1.5 kW	7.16 N.m	2000 rpm	20-bit	Middle	With	Without	With key-way	CN1, CN2, Power Terminals
ECMA-C11020ES	2 kW	6.37 N.m	3000 rpm	20-bit	Low	Without	Without	With key-way	CN1, CN2, Power Terminals
ECMA-E11320FS	2 kW	6.37 N.m	2000 rpm	20-bit	Middle	With	Without	With key-way	CN1, CN2, Power Terminals
ECMA-E11830PS	3 kW	14.32 N.m	2000 rpm	20-bit	Middle	Without	Without	With key-way (screw holes)	CN1, CN2, Power Terminals
ECMA-F11830QS	3 kW	14.32 N.m	2000 rpm	20-bit	Middle	With	Without	With key-way (screw holes)	CN1, CN2, Power Terminals
