Delta ECMA-C20604SS Servo Motor

Series#: Delta

Product Details

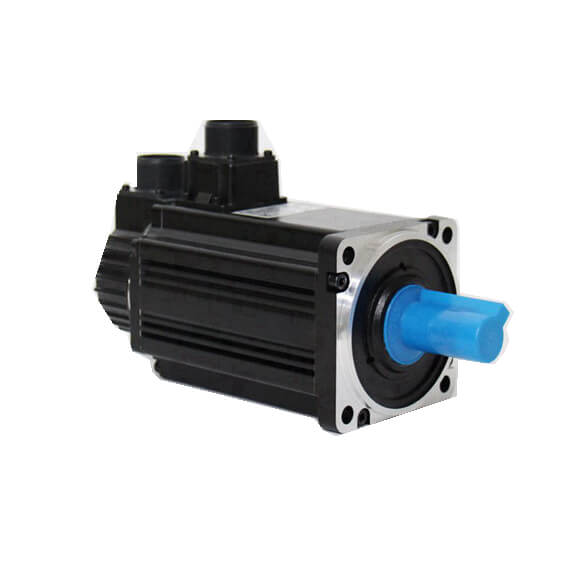

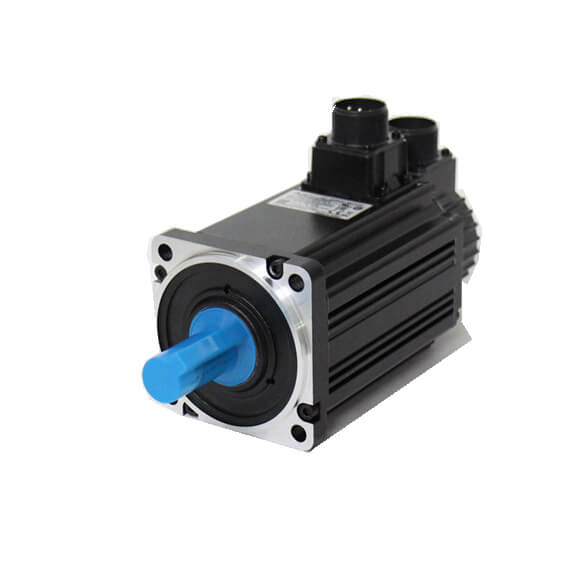

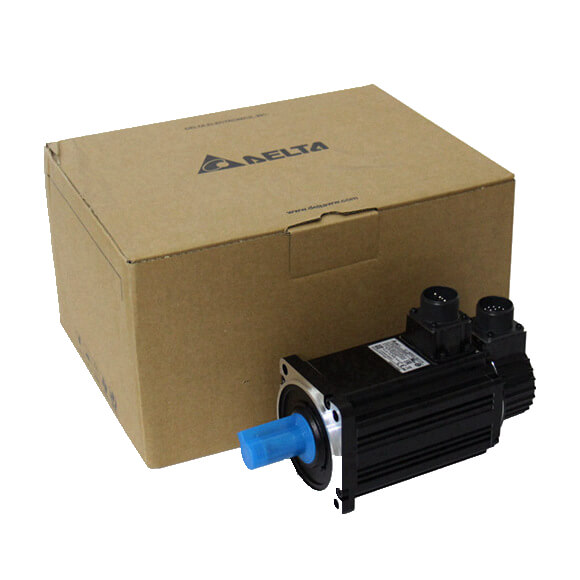

Delta ECMA-C20604SS 400W Servo Motor – High-Performance Motion Control Solution
Rated Power: 400W, Rated Torque: 1.27 Nm, Rated Speed: 3000 rpm
20-Bit Incremental Encoder for Ultra-Precise Positioning and Smooth Operation
Low Inertia Design – Ideal for High-Acceleration, Dynamic Applications
Includes Key-Way Shaft, No Brake, No Oil Seal – Standard Configuration for Easy Integration
Compatible with Delta ASD-B2-0421-B Servo Drive (220V AC) for Seamless System Setup
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Delta ECMA-C20604SS is a 400W low-inertia servo motor engineered for demanding industrial automation tasks requiring rapid acceleration, high precision, and reliable torque delivery. As part of the renowned ECMA series, this motor features a 20-bit incremental encoder that ensures exceptional feedback resolution, enabling tight position control and minimal settling time. The ECMA-C20604SS operates at a rated speed of 3000 rpm and delivers a continuous torque of 1.27 Nm, making it an excellent choice for applications such as pick-and-place machines, packaging equipment, and CNC routers. Its low-inertia rotor design minimizes mechanical time constants, allowing for quick response to command changes. This model comes without a holding brake and without an oil seal, but includes a key-way on the shaft for secure coupling. For a complete servo system, it pairs perfectly with the Delta ASD-B2-0421-B drive (220V AC single-phase input). All necessary connectors for CN1, CN2, and power terminals are included, though cables are sold separately.

Model Number	Power Rating	Rated Torque	Rated Speed	Encoder Resolution	Inertia Type	Brake	Oil Seal	Shaft Feature	Compatible Drive
ECMA-C20604SS	400 W	1.27 Nm	3000 rpm	20-bit (Incremental)	Low Inertia	Without Brake	No Oil Seal	Key-Way	ASD-B2-0421-B (220V AC)
ECMA-C10401ES	100 W	0.64 Nm	3000 rpm	20-bit	Low Inertia	Without Brake	No Oil Seal	Key-Way	ASD-B2-0121-B (220V AC)
ECMA-C20401FS	100 W	0.64 Nm	3000 rpm	20-bit	Low Inertia	With Brake	No Oil Seal	Key-Way	ASD-B2-0121-B (220V AC)
ECMA-C10602ES	200 W	0.64 Nm	3000 rpm	20-bit	Low Inertia	Without Brake	No Oil Seal	Key-Way	ASD-B2-0221-B (220V AC)
ECMA-C10602FS	200 W	0.64 Nm	3000 rpm	20-bit	Low Inertia	With Brake	No Oil Seal	Key-Way	ASD-B2-0221-B (220V AC)
ECMA-C10604ES	400 W	1.27 Nm	3000 rpm	20-bit	Low Inertia	Without Brake	No Oil Seal	Key-Way	ASD-B2-0421-B (220V AC)
ECMA-C10604FS	400 W	1.27 Nm	3000 rpm	20-bit	Low Inertia	With Brake	No Oil Seal	Key-Way	ASD-B2-0421-B (220V AC)
ECMA-C10807ES	750 W	2.39 Nm	3000 rpm	20-bit	Low Inertia	Without Brake	No Oil Seal	Key-Way	ASD-B2-0721-B (220V AC)
ECMA-C10807FS	750 W	2.39 Nm	3000 rpm	20-bit	Low Inertia	With Brake	No Oil Seal	Key-Way	ASD-B2-0721-B (220V AC)
ECMA-C11010ES	1.0 kW	3.18 Nm	3000 rpm	20-bit	Low Inertia	Without Brake	No Oil Seal	Key-Way	ASD-B2-1021-B (220V AC)
ECMA-C11010FS	1.0 kW	3.18 Nm	3000 rpm	20-bit	Low Inertia	With Brake	No Oil Seal	Key-Way	ASD-B2-1021-B (220V AC)
ECMA-E21310PS	1.0 kW	4.77 Nm	2000 rpm	20-bit	Low Inertia	Without Brake	No Oil Seal	Key-Way (Screw Holes)	ASD-B2-1021-B (220V AC)
ECMA-E21315ES	1.5 kW	7.16 Nm	2000 rpm	20-bit	Middle Inertia	Without Brake	No Oil Seal	Key-Way	ASD-B2-1521-B (220V AC)
ECMA-E11315FS	1.5 kW	7.16 Nm	2000 rpm	20-bit	Middle Inertia	With Brake	No Oil Seal	Key-Way	ASD-B2-1521-B (220V AC)
ECMA-C11020ES	2.0 kW	6.37 Nm	3000 rpm	20-bit	Low Inertia	Without Brake	No Oil Seal	Key-Way	ASD-B2-2023-B (3-Phase 220V AC)
ECMA-E11320FS	2.0 kW	6.37 Nm	2000 rpm	20-bit	Middle Inertia	With Brake	No Oil Seal	Key-Way	ASD-B2-2023-B (3-Phase 220V AC)
ECMA-E11830PS	3.0 kW	14.32 Nm	2000 rpm	20-bit	Middle Inertia	Without Brake	No Oil Seal	Key-Way (Screw Holes)	ASD-B2-3023-B (3-Phase 220V AC)
ECMA-F11830QS	3.0 kW	14.32 Nm	2000 rpm	20-bit	Middle Inertia	With Brake	No Oil Seal	Key-Way (Screw Holes)	ASD-B2-3023-B (3-Phase 220V AC)

Note: All motors listed above include connectors for CN1, CN2, and power terminals (cables not included). For models with "SS" or "ES" suffix, standard configuration is without brake and without oil seal. "FS" suffix indicates integrated holding brake. "PS" and "QS" suffixes indicate screw hole mounting pattern on the shaft.
