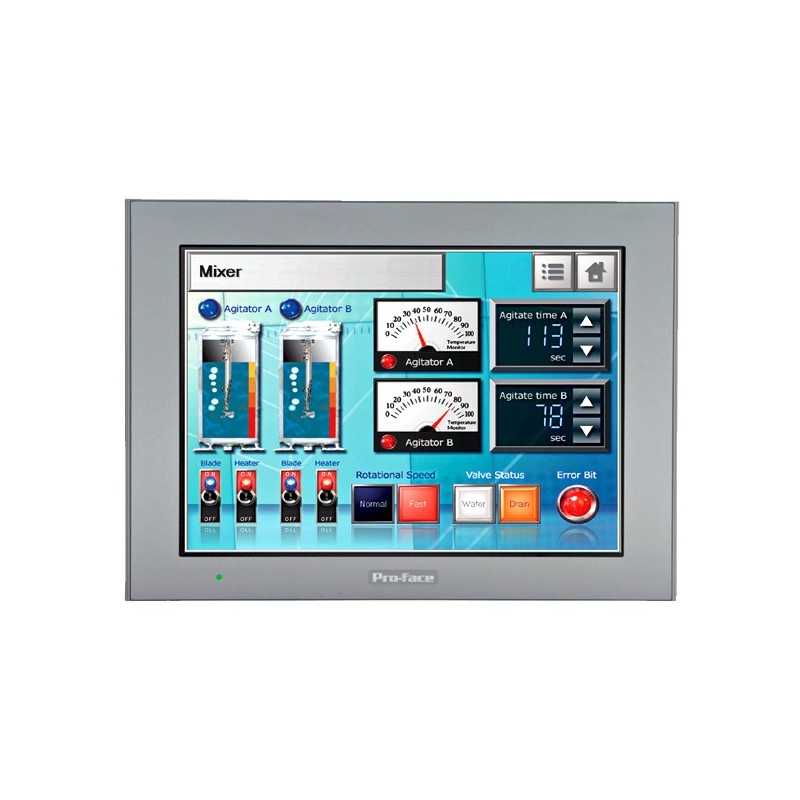

The PRO-FACE PFXGP4501TAA is a robust 10.4-inch operator interface from the GP4000 series, engineered for demanding industrial automation applications. This HMI combines a vivid TFT color display with powerful processing capabilities, enabling seamless machine control, data visualization, and operator interaction. The PFXGP4501TAA supports multiple communication protocols and is ideal for use in manufacturing, packaging, and process control systems where reliability and performance are critical. With its IP65-rated front panel, it withstands dust, moisture, and vibration, ensuring long-term operation in rugged environments. The unit is fully compatible with GP-Pro EX software for easy screen design and troubleshooting.
| Parameter |
Specification |
| Model Number |
PFXGP4501TAA |
| Series |
GP4000 Series |
| Display Type |
10.4-inch TFT Color LCD |
| Resolution |
800 x 600 pixels (SVGA) |
| Display Colors |
65,536 colors |
| Backlight |
LED, 50,000 hours typical |
| Touch Screen |
Resistive analog, 2-point touch |
| Processor |
32-bit RISC (ARM-based) |
| Memory |
256 MB Flash, 128 MB RAM |
| Ethernet |
1 x 10/100 Base-T |
| USB Ports |
1 x USB Host (Type-A), 1 x USB Device (Mini-B) |
| Serial Ports |
1 x RS-232C, 1 x RS-422/485 |
| SD Card Slot |
1 x SD/SDHC |
| Power Supply |
24 VDC (21.6 – 26.4 VDC) |
| Power Consumption |
20 W max |
| Protection Rating |
IP65 (front panel), IP20 (rear) |
| Operating Temperature |
0 to 50°C (32 to 122°F) |
| Storage Temperature |
-20 to 60°C (-4 to 140°F) |
| Humidity |
10% to 90% RH (non-condensing) |
| Vibration Resistance |
10 to 55 Hz, 0.5mm amplitude |
| Weight |
Approx. 2.5 kg (5.5 lbs) |
| Dimensions (W x H x D) |
305 x 239 x 55 mm (12.0 x 9.4 x 2.2 in) |
| Cutout Dimensions |
290 x 224 mm (11.4 x 8.8 in) |
| Software Compatibility |
GP-Pro EX (v4.0 or later) |
| Certifications |
CE, UL, cUL, RoHS |
