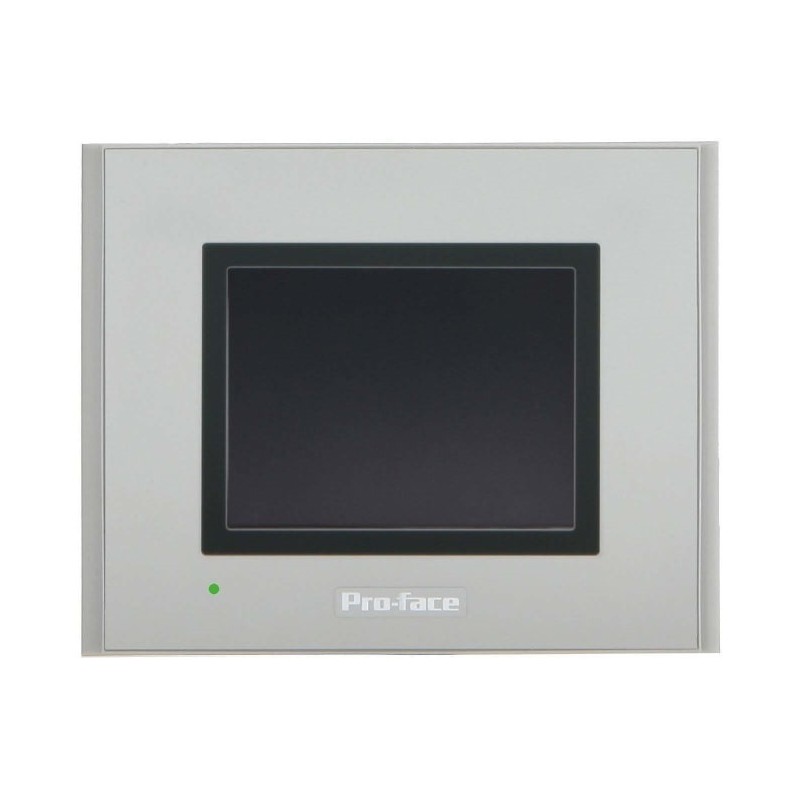

The PRO-FACE PFXGP4301TADW, also known as the GP-4301TW series, is a 5.7-inch TFT color touchscreen HMI designed for demanding industrial control applications. This model delivers exceptional reliability with a bright 256-color display and a resistive touch interface that withstands repeated use in factory floor environments. It integrates seamlessly with leading PLCs and controllers via built-in serial and Ethernet ports, making it ideal for machine monitoring, data logging, and operator control tasks. The unit is engineered for long-term performance, backed by PRO-FACE’s reputation for robust industrial hardware.
| Parameter |
Specification |
| Model Number |
PFXGP4301TADW |
| Display Type |
5.7-inch TFT Color LCD |
| Resolution |
320 × 240 pixels (QVGA) |
| Display Colors |
256 colors (16-bit color support) |
| Backlight |
CCFL (replaceable, typical life 50,000 hours) |
| Touch Panel |
Analog resistive, 4-wire type |
| Touch Resolution |
1024 × 1024 (analog) |
| Processor |
32-bit RISC CPU |
| Memory |
8 MB Flash ROM (user area), 4 MB SRAM |
| Communication Ports |
1 × RS-232C, 1 × RS-422/485, 1 × Ethernet (10/100 Base-T) |
| USB Ports |
1 × USB Type A (host), 1 × USB Mini-B (device) |
| Power Supply |
24 VDC (20.4 to 28.8 VDC), typical consumption 15W |
| Front Panel Protection |
IP65 (NEMA 4 equivalent) |
| Operating Temperature |
0°C to +50°C (32°F to 122°F) |
| Storage Temperature |
-20°C to +60°C (-4°F to 140°F) |
| Humidity |
10% to 90% RH (non-condensing) |
| Vibration Resistance |
10 to 57 Hz, 0.075mm amplitude; 57 to 150 Hz, 9.8 m/s² |
| Dimensions (W × H × D) |
190 × 130 × 52 mm (7.48 × 5.12 × 2.05 inches) |
| Weight |
Approximately 0.7 kg (1.54 lbs) |
| Software Compatibility |
GP-Pro EX (version 3.0 or later) |
| Certifications |
CE, UL, cUL, RoHS compliant |
