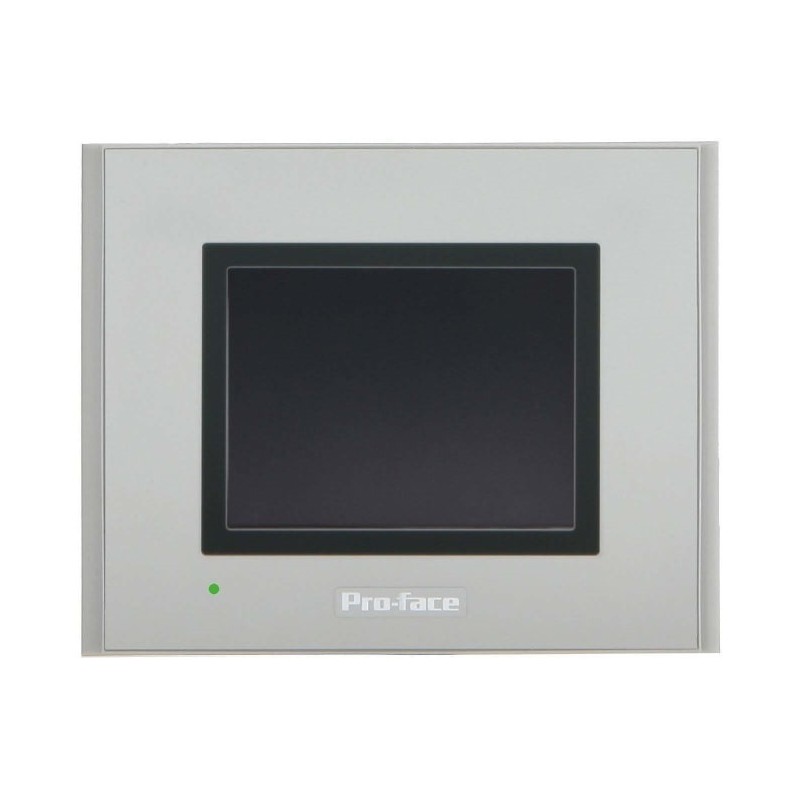

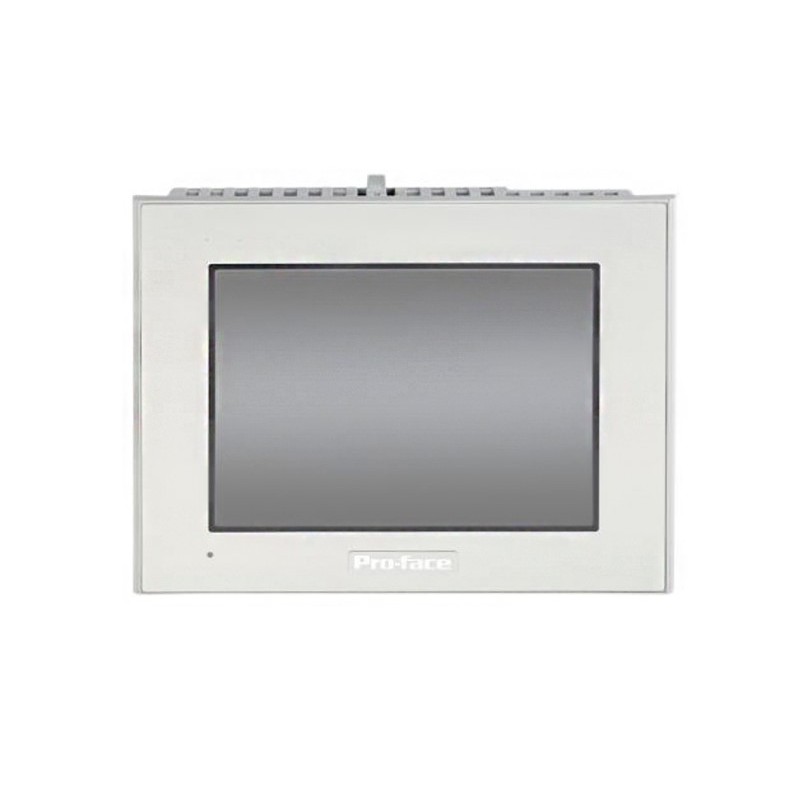

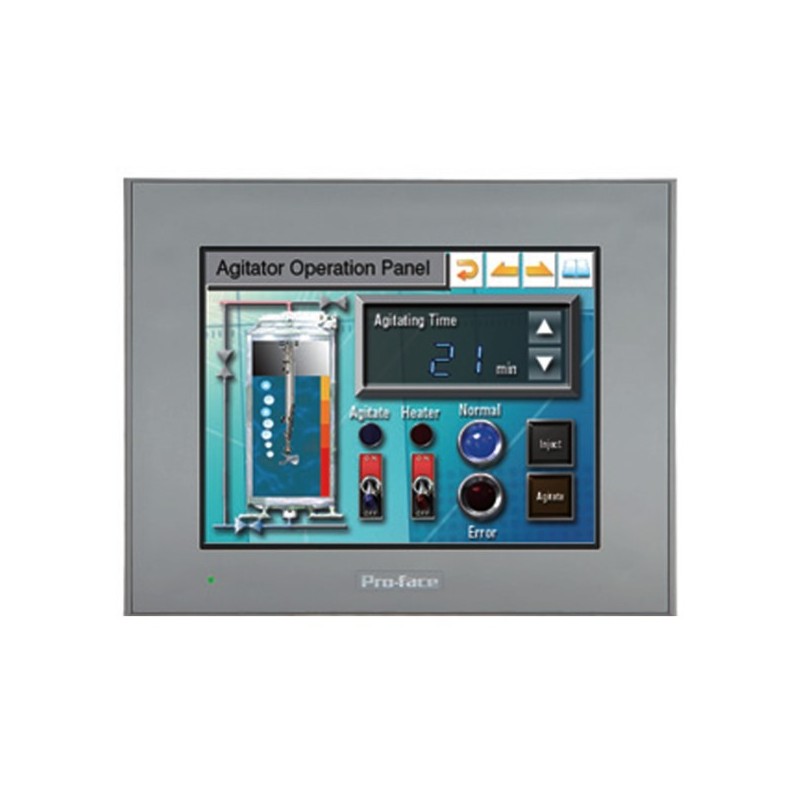

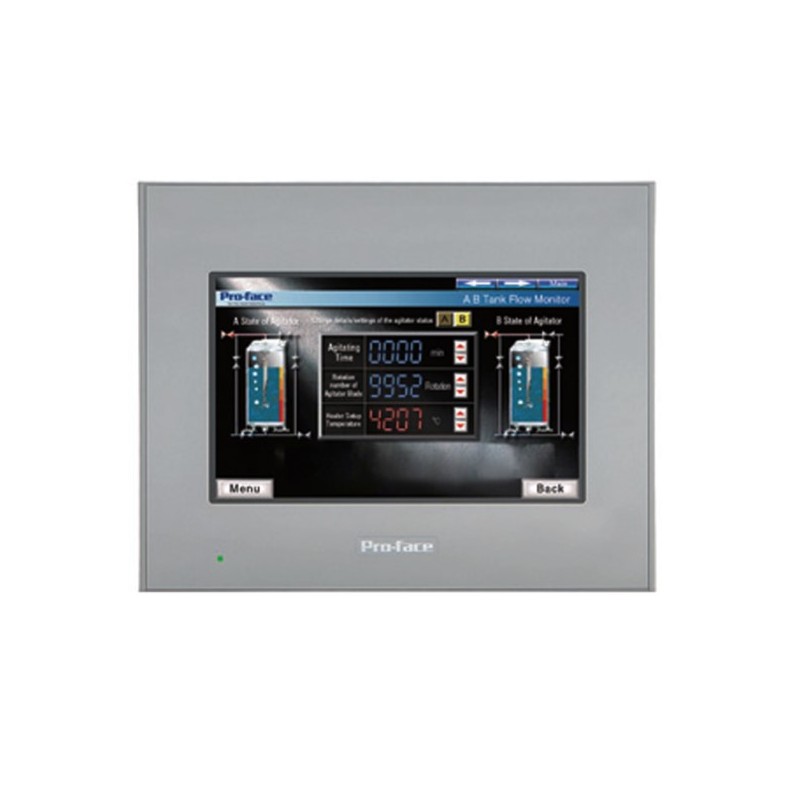

The PRO-FACE GP4000 Series PFXGP4201TADW is a compact yet powerful 3.5-inch TFT touch screen HMI, designed to deliver intuitive operator interface and robust performance in space-constrained industrial applications. This model features a high-resolution 320x240 pixel display with excellent visibility, even in bright ambient light. Its resistive touch screen ensures accurate input even when used with gloves or in dusty environments. The PFXGP4201TADW supports a wide range of communication interfaces, including Ethernet for high-speed data exchange and serial ports for legacy PLC connectivity. With an IP65f-rated front panel, it withstands dust, water jets, and vibration, making it ideal for factory floors, packaging machines, or small process control systems. The unit operates on a 24 VDC power supply and includes a real-time clock for time-stamped data logging.
| Parameter |
Specification |
| Model |
PFXGP4201TADW |
| Series |
PRO-FACE GP4000 Series |
| Display Type |
3.5-inch TFT Color LCD |
| Resolution |
320 x 240 pixels (QVGA) |
| Backlight |
White LED, user-replaceable |
| Touch Panel |
Resistive analog (pressure-sensitive) |
| Brightness |
500 cd/m² (typical) |
| Contrast Ratio |
500:1 (typical) |
| Power Supply |
24 VDC (20.4 to 28.8 VDC) |
| Power Consumption |
7.2 W (max) |
| Ethernet Interface |
1 x 10/100 Base-T (RJ-45) |
| Serial Ports |
RS-232C (1 x D-sub 9-pin), RS-422/485 (1 x D-sub 9-pin) |
| USB Ports |
1 x USB Host (Type-A), 1 x USB Device (Mini-B) |
| Memory |
8 MB Flash (user area), 128 KB SRAM |
| Real-Time Clock |
Yes, battery-backed |
| Front Panel Protection |
IP65f (NEMA 4 equivalent) |
| Operating Temperature |
0°C to 50°C (32°F to 122°F) |
| Storage Temperature |
-20°C to 60°C (-4°F to 140°F) |
| Humidity |
10% to 90% RH (non-condensing) |
| Vibration Resistance |
5 to 9 Hz: 3.5 mm amplitude; 9 to 200 Hz: 9.8 m/s² |
| Shock Resistance |
147 m/s² (15 G) for 11 ms, half-sine |
| Dimensions (W x H x D) |
130 x 104 x 40 mm (5.12 x 4.09 x 1.57 inches) |
| Panel Cutout |
119 x 93 mm (4.69 x 3.66 inches) |
| Weight |
Approx. 0.35 kg (0.77 lbs) |
| Certifications |
CE, UL, cUL, RoHS |
