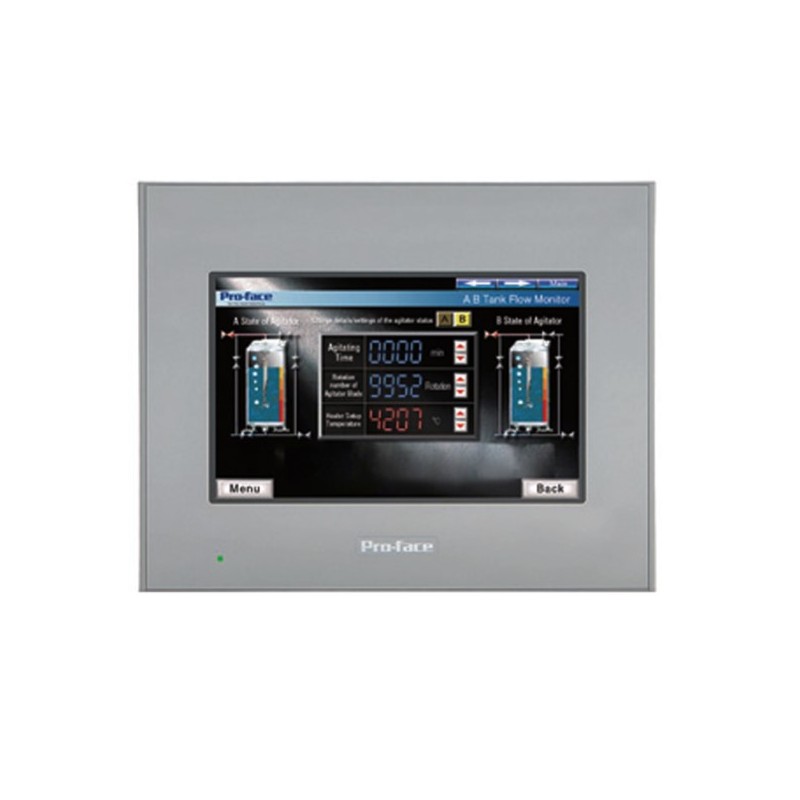

The PRO-FACE PFXGP4201TAD is a high-performance 3.5-inch TFT touch screen HMI from the renowned GP4000 Series, engineered for compact yet demanding industrial control systems. This model integrates a vivid 320x240 pixel TFT LCD with a robust resistive touch interface, delivering reliable operator interaction in environments where space is limited but functionality is critical. The PFXGP4201TAD supports versatile connectivity including 10/100 Mbps Ethernet, RS-232C, and RS-422/485 ports, enabling seamless communication with PLCs, drives, and other automation devices. Its IP65f-rated front panel ensures dust and water resistance, making it suitable for machine tools, packaging lines, and process control applications. With a wide operating temperature range and low power consumption, this HMI is built for long-term, maintenance-free operation.
| Parameter |
Specification |
| Model Number |
PFXGP4201TAD |
| Series |
GP4000 Series |
| Display Type |
3.5-inch TFT LCD, 65,536 colors |
| Resolution |
320 x 240 pixels (QVGA) |
| Backlight |
White LED, service life approx. 60,000 hours (at 25°C) |
| Touch Panel |
Analog resistive, 2-point touch (single-touch supported) |
| Processor |
32-bit RISC (ARM-based) |
| Memory |
Application: 4 MB Flash; Data log: 512 KB; Backup: 128 KB SRAM |
| Ethernet Interface |
1x 10/100 Base-T (RJ-45) |
| Serial Interface |
1x RS-232C (9-pin D-sub male), 1x RS-422/485 (9-pin D-sub male) |
| USB Ports |
1x USB Host (Type-A), 1x USB Device (Type-B) |
| SD Card Slot |
1x SD card slot (supports up to 32 GB SDHC) |
| Power Supply |
24 VDC (10% tolerance), typical consumption 4.5W |
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
-20°C to +60°C |
| Protection Rating |
IP65f (front panel, when mounted) |
| Dimensions (W x H x D) |
129.6 x 100.8 x 40.0 mm (including mounting clips) |
| Weight |
Approx. 0.35 kg |
| Software Compatibility |
GP-Pro EX (version 4.0 or later) |
| Certifications |
CE, UL, cUL, RoHS |
