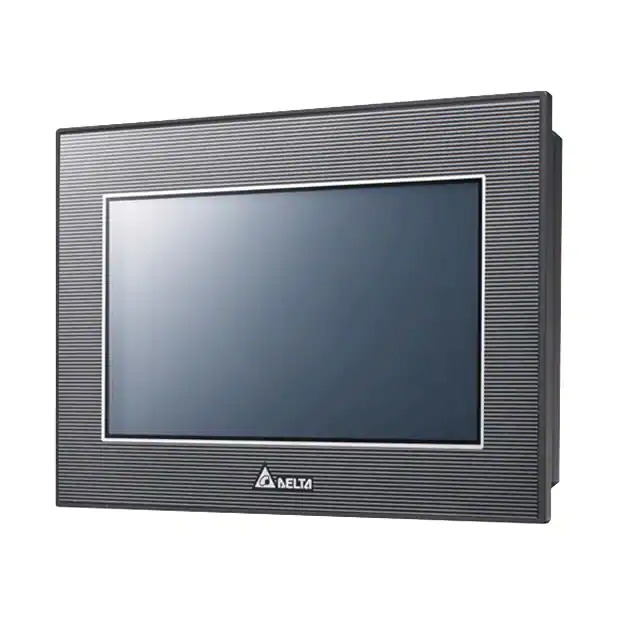

The TP70P-32TP1R DELTA is a versatile 7-inch human-machine interface (HMI) engineered for demanding industrial control applications. This model integrates a high-resolution resistive touch screen with a robust 32-bit processor, ensuring responsive operation and reliable data handling. Designed for seamless integration into Delta’s automation ecosystem, it supports Ethernet, RS-232, and RS-485 communication, making it suitable for PLC, inverter, and temperature controller monitoring. With its IP65-rated front bezel and wide operating temperature range, the TP70P-32TP1R DELTA excels in environments requiring durability and precise touch input. Below is the comprehensive technical specification table for this model.
| Specification |
Details |
| Model |
TP70P-32TP1R DELTA |
| Display Size |
7.0-inch TFT LCD |
| Resolution |
800 x 480 pixels |
| Display Colors |
16.7 million colors |
| Backlight Type |
LED, with 50,000 hours typical life |
| Touch Panel |
Resistive, single-touch |
| Processor |
32-bit RISC CPU (e.g., ARM-based) |
| Memory |
128 MB Flash + 128 MB DDR3 RAM |
| Communication Ports |
1 x Ethernet (10/100 Mbps), 2 x RS-232, 1 x RS-485 |
| USB Ports |
1 x USB Host (Type A), 1 x USB Client (Mini-B) |
| Power Supply |
24 VDC (typical range 20.4 – 28.8 VDC) |
| Power Consumption |
≤ 10 W (typical) |
| Protection Rating |
Front panel: IP65 (NEMA 4X equivalent); Rear: IP20 |
| Operating Temperature |
0°C to +50°C |
| Storage Temperature |
-20°C to +60°C |
| Humidity |
10% to 90% RH (non-condensing) |
| Vibration Resistance |
0.5G, 10–55 Hz (per IEC 60068-2-6) |
| Shock Resistance |
10G, 11 ms (per IEC 60068-2-27) |
| Dimensions (W x H x D) |
200.0 x 146.0 x 42.5 mm (approx.) |
| Panel Cutout |
192.0 x 138.0 mm |
| Weight |
Approximately 0.6 kg |
| Software Compatibility |
DOPSoft (version 2.00.08 or later) |
| Supported Protocols |
Modbus RTU/TCP, Delta PLC, Allen-Bradley, Siemens S7, and more |
| Certifications |
CE, UL, RoHS |
