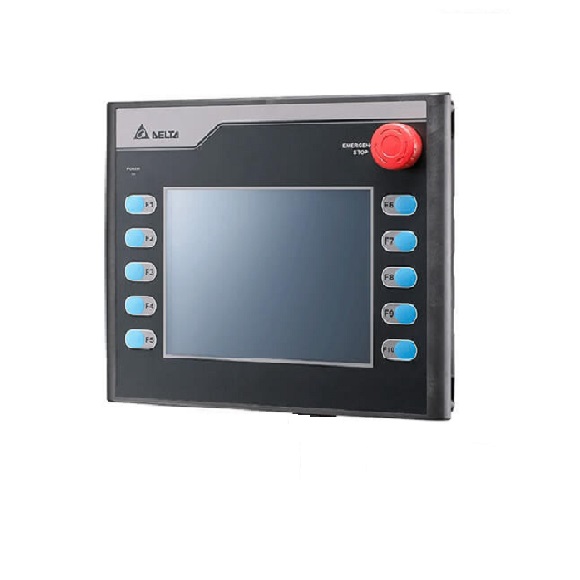

The TP70P-16TP1R DELTA is a versatile 7-inch human-machine interface (HMI) engineered for precise operator control in industrial environments. Designed with a 16-key tactile function keypad, this model delivers intuitive interaction for machine monitoring, parameter setting, and process visualization. The display features a high-brightness TFT LCD with 800 x 480 pixel resolution, ensuring readability even under direct sunlight. Communication is handled via dual serial ports (RS-232 and RS-485), supporting multiple protocols for integration with Delta and other major PLC brands. The unit operates on 24 VDC power with built-in surge protection, and its IP65-rated front panel withstands washdown and dusty conditions. With a wide operating temperature range of 0°C to 50°C, the TP70P-16TP1R is built for reliability in continuous-duty applications such as packaging, material handling, and assembly lines.
| Parameter |
Specification |
| Display Type |
7-inch TFT LCD, 16.7M colors |
| Resolution |
800 x 480 pixels |
| Backlight |
LED, lifetime > 30,000 hours |
| Touch Panel |
4-wire resistive, analog |
| Keypad |
16 function keys (membrane type) |
| Processor |
32-bit RISC CPU, 400 MHz |
| Memory |
128 MB Flash + 64 MB SDRAM |
| Communication Ports |
1 x RS-232, 1 x RS-485 (isolated) |
| USB Ports |
1 x USB Host (Type A), 1 x USB Device (Mini-B) |
| Ethernet |
1 x 10/100 Base-T (RJ45) |
| Power Supply |
24 VDC ±10% |
| Power Consumption |
≤ 8 W (typical) |
| Protection Rating |
Front: IP65, Rear: IP20 |
| Operating Temperature |
0°C to 50°C |
| Storage Temperature |
-20°C to 60°C |
| Humidity |
10% to 90% RH (non-condensing) |
| Vibration Resistance |
10 to 25 Hz (2G), 30 minutes per axis |
| Dimensions (W x H x D) |
200 x 148 x 42 mm |
| Panel Cutout |
186 x 134 mm |
| Weight |
Approx. 0.65 kg |
| Certifications |
CE, UL, RoHS |
| Software Compatibility |
Delta DOPSoft (version 2.0 or later) |
| Applicable Standards |
IEC 61131-2, EN 61000-6-2, EN 61000-6-4 |
