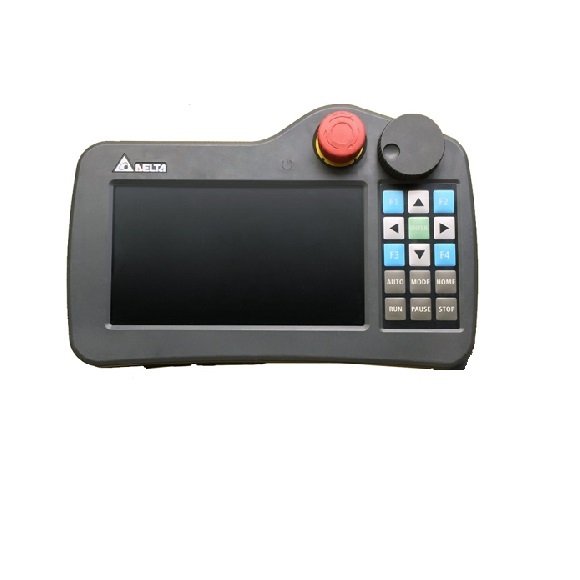

Delta DOP-H07 Touch Screen HMI

Series#: Delta

Product Details

DELTA TOUCH SCREEN HMI DOP-H07 – High-performance 7-inch widescreen HMI for industrial automation.
800 x 480 pixel TFT LCD display with 65,536 colors for clear, vibrant visualization.
Integrated Ethernet, USB Host/Device, and RS-232/485/422 communication ports for flexible connectivity.
Supports Delta’s DOPSoft programming software with intuitive drag-and-drop interface design.
Rugged industrial design with IP65 front panel protection for harsh environments.
Compatible with major PLCs and drives via built-in drivers for seamless system integration.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The DELTA TOUCH SCREEN HMI DOP-H07 is a robust and versatile human-machine interface engineered for demanding industrial control systems. Featuring a 7-inch widescreen TFT LCD with 65,536 colors and an 800 x 480 resolution, this HMI delivers crisp, responsive touch control for monitoring and managing processes. Its comprehensive connectivity suite includes Ethernet, USB Host/Device, and multiple serial ports (RS-232, RS-485, RS-422), enabling effortless integration with Delta PLCs, drives, and third-party devices. Designed for reliability, the DELTA TOUCH SCREEN HMI DOP-H07 boasts an IP65-rated front panel, making it suitable for dusty or wet environments. With support for DOPSoft software, users can create intuitive interfaces with alarms, data logging, and recipe management. This model is ideal for applications in packaging, textile, printing, and general factory automation.

Parameter	Specification
Model	DELTA TOUCH SCREEN HMI DOP-H07
Display Type	7-inch TFT LCD (Widescreen)
Resolution	800 x 480 pixels
Color Depth	65,536 colors
Backlight	LED, service life > 50,000 hours
Touch Panel	4-wire resistive analog
Processor	32-bit RISC CPU
Memory	128 MB Flash + 64 MB RAM
Communication Ports	1 x Ethernet (10/100 Base-T), 1 x USB Host (Type A), 1 x USB Device (Mini-B), 1 x RS-232, 1 x RS-485, 1 x RS-422
Power Supply	24 VDC ± 10% (Standard Models)
Power Consumption	7.2 W (Max)
Front Panel Rating	IP65 (NEMA 4 equivalent)
Operating Temperature	0°C to 50°C (32°F to 122°F)
Storage Temperature	-20°C to 60°C (-4°F to 140°F)
Humidity	10% to 90% RH (non-condensing)
Dimensions (W x H x D)	200 x 146 x 42 mm (7.87 x 5.75 x 1.65 inches)
Panel Cutout	192 x 138 mm (7.56 x 5.43 inches)
Weight	Approx. 0.6 kg (1.32 lbs)
Software	DOPSoft (compatible with Windows 7/10/11)
Supported Protocols	Modbus RTU/TCP, Delta DVP, Allen-Bradley DF1, Siemens S7, Mitsubishi FX, and more
Certifications	CE, UL, RoHS
Warranty	1 year (standard)
