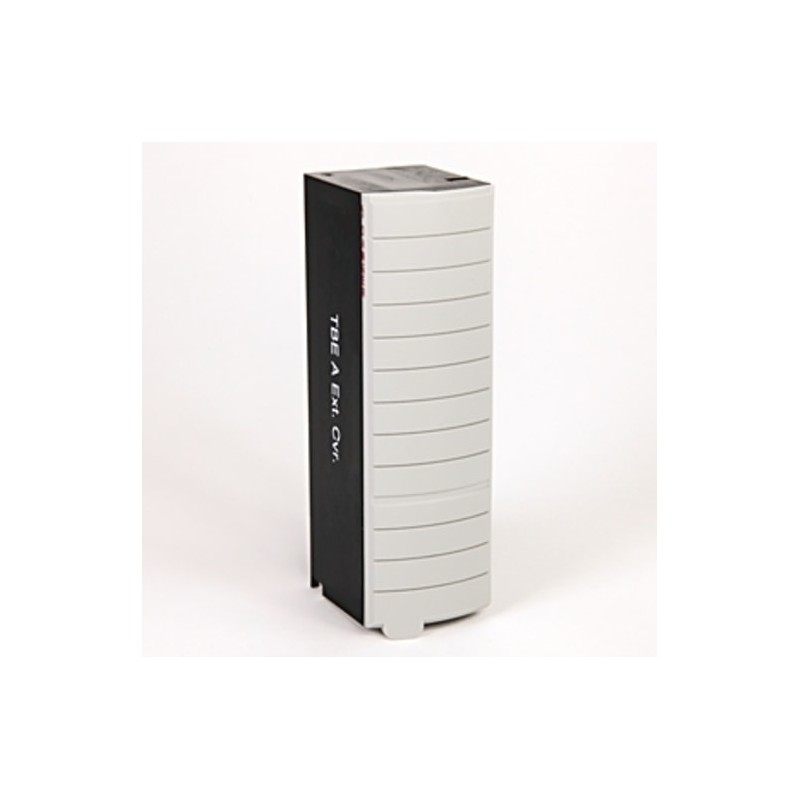

The 1756-TBE Extended Depth Terminal Block Housing is a critical component for Allen-Bradley ControlLogix systems, designed to expand wiring capacity and simplify field connections. This housing offers additional depth compared to standard terminal blocks, allowing for easier routing of larger cables, ferrule terminations, and custom wiring harnesses. Its rugged thermoplastic construction ensures durability in harsh industrial settings, while the integrated locking tabs provide vibration-resistant mounting. The 1756-TBE is ideal for applications requiring high-density I/O or complex signal routing, such as process control, manufacturing lines, and power generation systems. Each unit is factory-tested and 100% original, ensuring seamless integration with existing ControlLogix infrastructure.
| Parameter |
Specification |
| Product Type |
Extended Depth Terminal Block Housing |
| Compatible Platform |
Allen-Bradley ControlLogix (1756 series) |
| Housing Depth |
Extended (approx. 2.5 inches / 63.5 mm) |
| Mounting Method |
Snap-on to backplane or chassis |
| Wire Size Range |
14 AWG to 22 AWG (solid or stranded) |
| Terminal Type |
Screw clamp – cage clamp style |
| Number of Positions |
20 (single-row, per module slot) |
| Rated Voltage |
600 V AC/DC (maximum) |
| Rated Current |
10 A per terminal (continuous) |
| Material |
Polyamide (PA) with glass fiber reinforcement |
| Flammability Rating |
UL 94 V-0 |
| Operating Temperature |
-20°C to +60°C (-4°F to +140°F) |
| Storage Temperature |
-40°C to +85°C (-40°F to +185°F) |
| Environmental Protection |
IP20 (finger-safe) |
| Weight |
Approx. 0.15 kg (0.33 lb) |
| Certifications |
CE, UL, CSA, TÜV |
| Included Accessories |
Mounting clip, labeling strip (blank) |
| Compliance |
RoHS, REACH |
