Allen-Bradley 1786-TPYS ControlNet Y-Tap

Series#: AllenBradley

Product Details

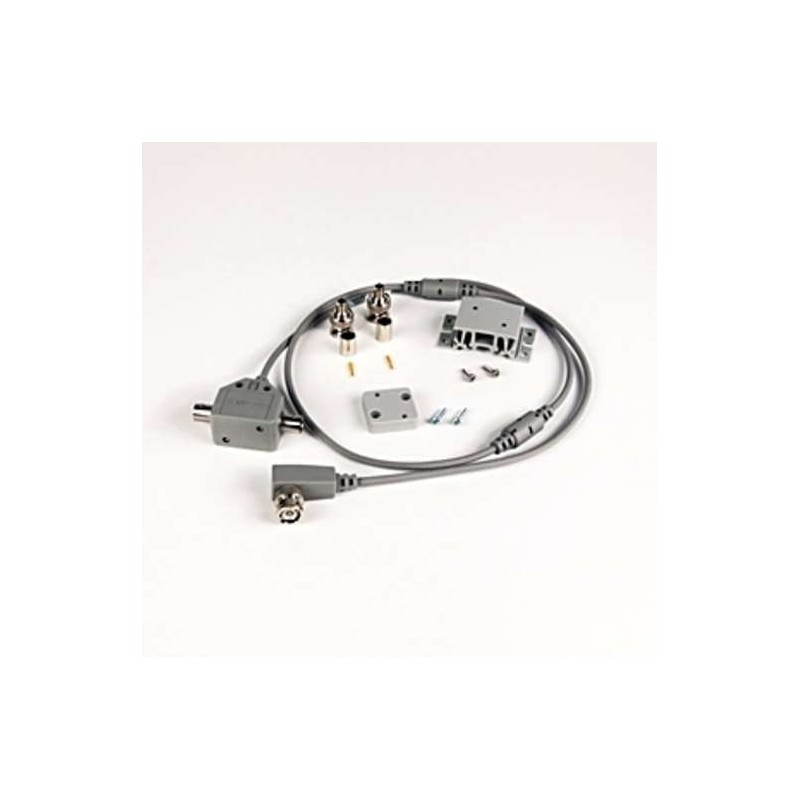

1786-TPYS ALLEN-BRADLEY ControlNet Y-Tap – Essential for reliable ControlNet network segmentation and node connection.
Enables seamless branching of ControlNet trunk line to up to two additional devices without signal degradation.
Rugged industrial design with BNC connectors for secure coaxial cable termination in harsh environments.
Supports full ControlNet data rates up to 5 Mbps, ensuring deterministic and real-time communication.
Compact form factor simplifies installation in tight panels or cable trays, reducing downtime.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The 1786-TPYS ALLEN-BRADLEY ControlNet Y-Tap is a critical passive network component designed for Rockwell Automation ControlNet systems. Its primary function is to provide a physical Y-shaped branching point on the coaxial trunk line, allowing connection of two additional nodes or segments while maintaining the characteristic impedance and signal integrity required for deterministic communication. Built for industrial environments, this Y-Tap ensures minimal insertion loss and supports the full 5 Mbps data rate. It is ideal for expanding ControlNet networks in manufacturing cells, process lines, and discrete control applications where reliable, real-time data exchange is paramount. The 1786-TPYS features standard BNC connectors for easy integration with RG-6/U coaxial cable and is fully compliant with ControlNet specifications.

Parameter	Specification
Product Type	ControlNet Coaxial Y-Tap (Passive)
Model Number	1786-TPYS
Network Compatibility	ControlNet (Coaxial Media)
Data Rate	5 Mbps (Full ControlNet Speed)
Connector Type	BNC Female (3 ports – 1 trunk in, 2 trunk out or device connections)
Cable Type	RG-6/U or equivalent 75 ohm coaxial cable
Impedance	75 ohms (matched to ControlNet coaxial specification)
Insertion Loss	< 0.5 dB typical
Operating Temperature	0°C to +60°C (32°F to 140°F)
Storage Temperature	-40°C to +85°C (-40°F to 185°F)
Enclosure Material	Zinc die-cast with nickel plating (corrosion resistant)
Dimensions (L x W x H)	Approx. 4.1 x 2.5 x 1.2 inches (104 x 64 x 30 mm)
Weight	Approx. 0.15 lbs (68 g)
Mounting	Panel mount or DIN rail compatible (via optional bracket)
Environmental Rating	IP20 (indoor use only)
Standards Compliance	ControlNet Specification, CE, UL listed
Maximum Nodes per Segment	48 (with appropriate taps and terminators)
Maximum Segment Length	1000 meters (3280 feet) at 5 Mbps
Warranty	Standard 1-year manufacturer warranty
