1756-IF4FXOF2F Allen-Bradley

Series#: AllenBradley

Product Details

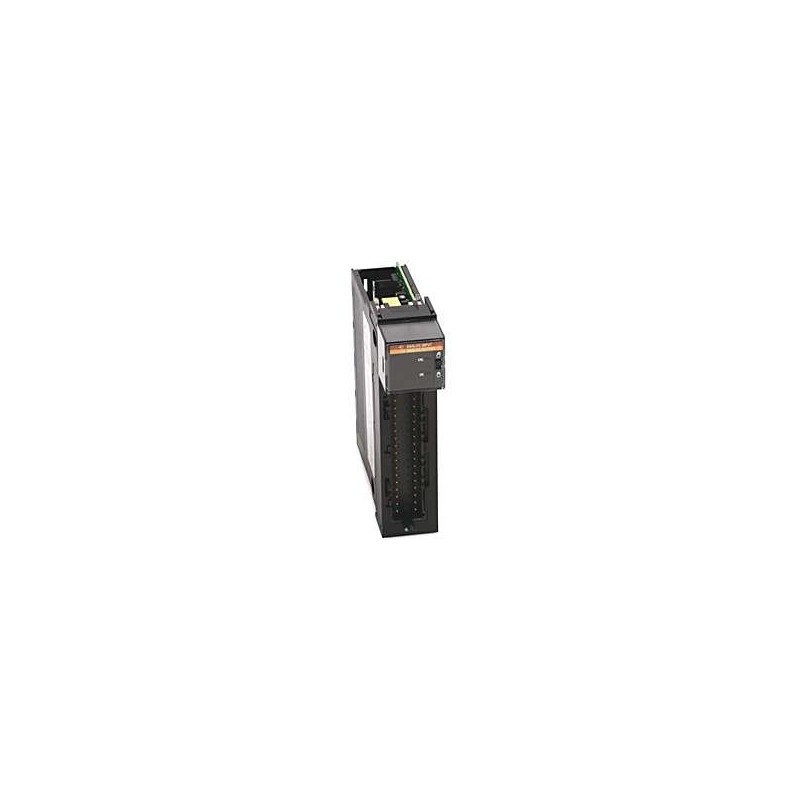

Model: 1756-IF4FXOF2F, a high-speed analog combo module for Allen-Bradley ControlLogix systems.
Combines 4 fast analog inputs with 2 isolated analog outputs in a single module.
Supports current and voltage signals with 16-bit resolution for precision control.
Designed for high-performance applications requiring rapid response and minimal latency.
Hot-swappable under ControlLogix chassis, reducing downtime during maintenance.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The Allen-Bradley 1756-IF4FXOF2F is a high-speed analog combination module engineered for demanding industrial automation environments. This module integrates four fast analog input channels and two isolated analog output channels, providing a compact solution for applications that require simultaneous high-speed data acquisition and precise control signal generation. The 1756-IF4FXOF2F is ideal for use in process control, motion control, and real-time monitoring systems where rapid response times and high accuracy are critical. With its robust design and seamless integration into the ControlLogix platform, this module ensures reliable performance even in harsh conditions. It supports a wide range of input and output signal types, offering flexibility for various field devices such as sensors, transmitters, and actuators. The module's fast update rate and advanced filtering capabilities make it suitable for closed-loop control and high-speed data logging applications.

Parameter	Specification
Module Type	Analog Combination Module (Input/Output)
Input Channels	4 Differential
Output Channels	2 Single-Ended, Isolated
Input Signal Range (Current)	0 to 20 mA, 4 to 20 mA
Input Signal Range (Voltage)	±10 V, 0 to 10 V, 0 to 5 V, 1 to 5 V
Output Signal Range (Current)	0 to 20 mA, 4 to 20 mA
Output Signal Range (Voltage)	±10 V, 0 to 10 V
Input Resolution	16-bit
Output Resolution	16-bit
Input Update Rate	250 µs per channel (typical)
Output Update Rate	500 µs per channel (typical)
Input Impedance	> 10 MΩ (voltage), 250 Ω (current)
Output Load Impedance	0 to 500 Ω (current), > 2 kΩ (voltage)
Isolation	500V DC between channels and backplane
Accuracy	±0.1% of full scale (typical)
Operating Temperature	0 to 60 °C (32 to 140 °F)
Storage Temperature	-40 to 85 °C (-40 to 185 °F)
Relative Humidity	5% to 95% non-condensing
Power Consumption	5.5 W from backplane
Module Keying	Electronic keying supported
Mounting	1756 chassis (ControlLogix)
Weight	0.3 kg (0.66 lb)
Certifications	cULus, CE, C-Tick, ATEX (Zone 2)
