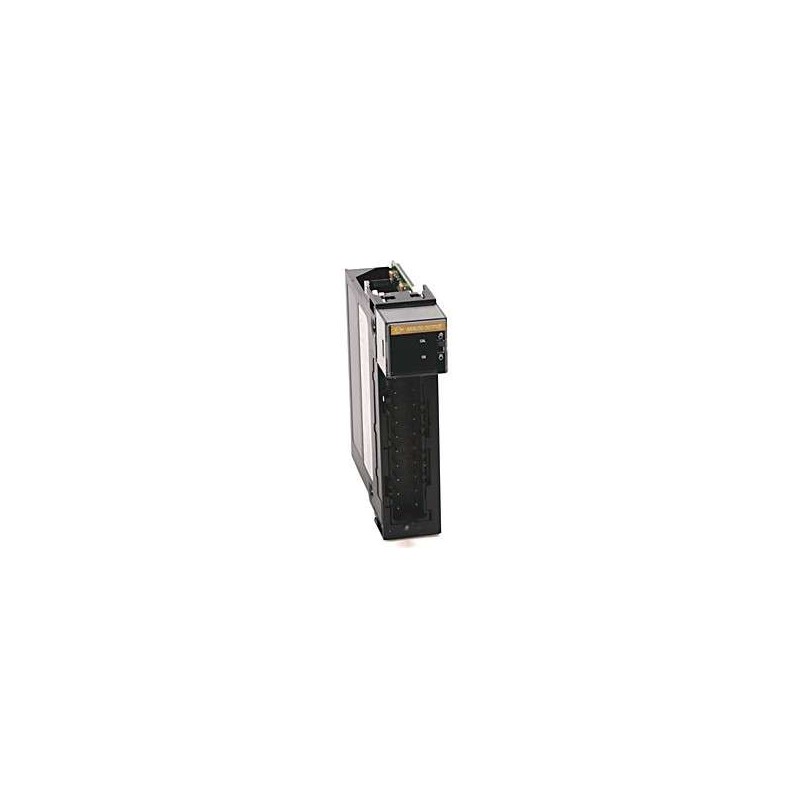

1756-OF8 Allen-Bradley 1756-OF8 ControlLogix Analog Output Module

1756-OF8 Allen-Bradley 1756-OF8 ControlLogix Analog Output Module

Series#: AllenBradley

Product Details

1756-OF8 Allen-Bradley ControlLogix Analog Output Module – 8-channel, high-density, isolated output solution.
Voltage and current output capability: ±10V, 0-10V, 0-20mA, 4-20mA per channel, software-configurable.
16-bit resolution ensures precise analog signal generation for demanding industrial control loops.
Individual channel-to-channel isolation (up to 1000V) for enhanced noise immunity and system reliability.
Hot-swappable under ControlLogix chassis – no system downtime during module replacement.
Compatible with ControlLogix 1756 backplane and RSLogix 5000/Studio 5000 environment.
100% Brand New & Original, securely packed and ready for reliable global shipping.

WhatsApp Inquiry

Specification

Datasheet (PDF)

The 1756-OF8 is a high-performance analog output module from the Allen-Bradley ControlLogix family, engineered for precision control in complex automation systems. This 8-channel module delivers both voltage and current outputs with 16-bit resolution, enabling fine-tuned regulation of actuators, valves, and variable frequency drives. Each channel is individually isolated to protect against ground loops and electrical transients, making it ideal for harsh industrial environments. With software-configurable ranges via RSLogix 5000 or Studio 5000, the 1756-OF8 simplifies setup and reduces inventory complexity. Its hot-swappable design allows maintenance without system interruption, while compliance with global standards (CE, cULus, ATEX for safe area) ensures broad application readiness. Whether used in batch processing, continuous manufacturing, or critical infrastructure, this module provides reliable, repeatable analog output performance.

Specification	Value
Product Series	ControlLogix (1756)
Model Number	1756-OF8
Output Type	Analog Voltage and Current
Number of Outputs	8 (isolated per channel)
Voltage Output Ranges	±10V, 0-10V, 0-5V, ±5V (software-configurable)
Current Output Ranges	0-20mA, 4-20mA (software-configurable)
Resolution	16 bits (0.003% of full scale typical)
Accuracy	±0.05% of full scale at 25°C (typical)
Channel-to-Channel Isolation	1000V DC (continuous), 1500V AC (tested for 1 minute)
Backplane Current Draw (5V)	500 mA maximum
Backplane Current Draw (24V)	None (module powered by backplane 5V only)
Update Rate	100 Hz per channel (typical)
Load Impedance (Voltage Output)	≥ 2 kΩ
Load Impedance (Current Output)	0-500 Ω (per channel)
External Power Supply Required	No (derives power from ControlLogix backplane)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
Shock Rating	30g operating (IEC 60068-2-27)
Vibration Rating	5g Standard Models 10-500 Hz (IEC 60068-2-6)
Certifications	CE, cULus, ATEX (Zone 2 safe area), IECEx
Dimensions (H x W x D)	144 mm x 35 mm x 144 mm (5.67 in x 1.38 in x 5.67 in)
Weight	Approximately 0.45 kg (1.0 lb)
Wiring Style	Removable terminal block (RTB) with screw clamps
Compatible Software	RSLogix 5000, Studio 5000, Logix Designer
Module Location	Any slot in 1756-A4, A7, A10, A13, A17 chassis
Keying	Electronic keying (compatible with standard ControlLogix)
Status Indicators	Module OK, Channel OK, Fault (per channel)
Hazardous Location Rating	Class I, Division 2, Groups A, B, C, D (safe area)
