1756-OF6CI Allen-Bradley

Series#: AllenBradley

Product Details

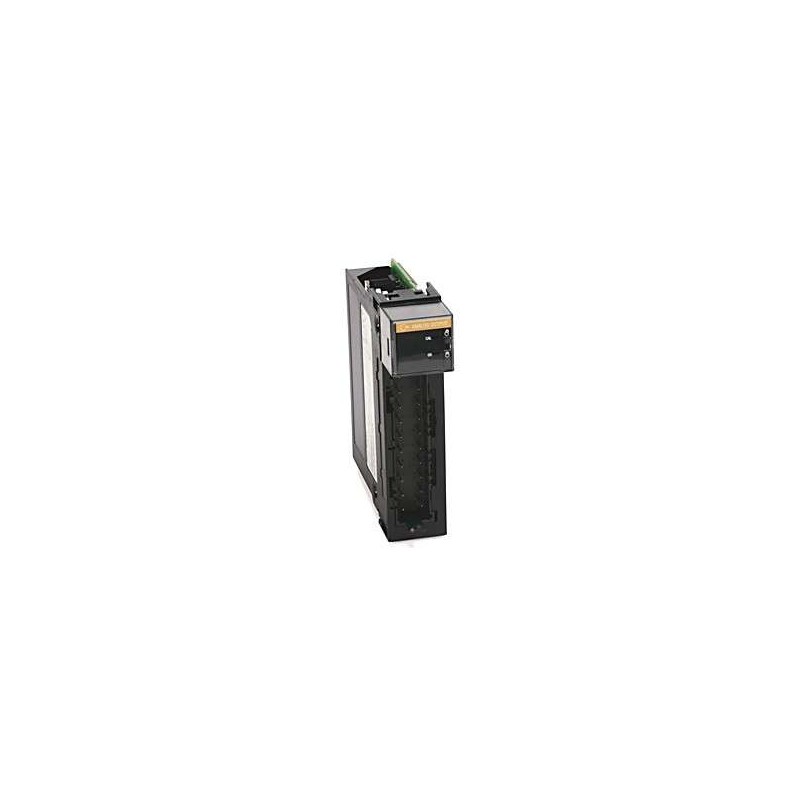

1756-OF6CI ALLEN-BRADLEY is a high-performance analog output module for ControlLogix systems, delivering precise current signal control.
Features 6 isolated analog output channels, each individually configurable for 0-20 mA or 4-20 mA current loops.
Supports HART protocol pass-through for intelligent field device integration and diagnostics.
Offers 16-bit resolution for accurate and repeatable output signals in critical process applications.
Hot-swappable design under powered backplane, reducing system maintenance complexity.
Compatible with all ControlLogix chassis and redundant power configurations for high-availability systems.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The 1756-OF6CI ALLEN-BRADLEY module is an essential component for industrial automation architectures requiring reliable analog current outputs. Designed for the ControlLogix platform, this module excels in applications such as valve positioning, actuator control, and variable frequency drive regulation. With six fully isolated channels, it maintains signal integrity even in electrically noisy environments, and its HART pass-through capability enables seamless integration with smart transmitters for predictive maintenance. The 1756-OF6CI delivers 16-bit resolution across configurable current ranges, ensuring precise control in batch processing, oil and gas, and water treatment systems. Its hot-swappable nature allows for online replacement without disrupting other modules, making it ideal for continuous process operations.

Parameter	Specification
Product Type	Analog Output Module
Series	ControlLogix
Model	1756-OF6CI
Number of Output Channels	6, individually isolated
Output Signal Ranges	0-20 mA, 4-20 mA
Resolution	16 bits
Accuracy	±0.05% of full scale at 25°C
Isolation	Channel-to-channel and channel-to-backplane: 1000V DC
HART Protocol	Pass-through supported
Update Rate	Selectable: 1 ms, 2 ms, 5 ms, 10 ms, 20 ms, 50 ms, 100 ms, 200 ms
Backplane Current (5V DC)	350 mA typical
Backplane Current (24V DC)	0 mA (isolated output power required from field)
Field Power Supply	24V DC nominal (18-30V DC range), 50 mA per channel max
Maximum Output Load	800 ohms at 24V DC field supply
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
Vibration Resistance	2 g at 10-500 Hz
Shock Resistance	30 g peak, 11 ms duration
Dimensions (H x W x D)	5.04 in x 5.04 in x 2.25 in (128 mm x 128 mm x 57 mm)
Weight	Approximately 0.55 lbs (0.25 kg)
Certifications	UL 508, CSA C22.2 No. 142, CE, ATEX (Zone 2), IECEx (Zone 2)
Wiring Style	Removable terminal block (RTB), 20-pin
Compatibility	All ControlLogix chassis (1756-A4, A7, A10, A13, A17)
Redundancy Support	Yes, with 1756-RM2 or RMXT modules
