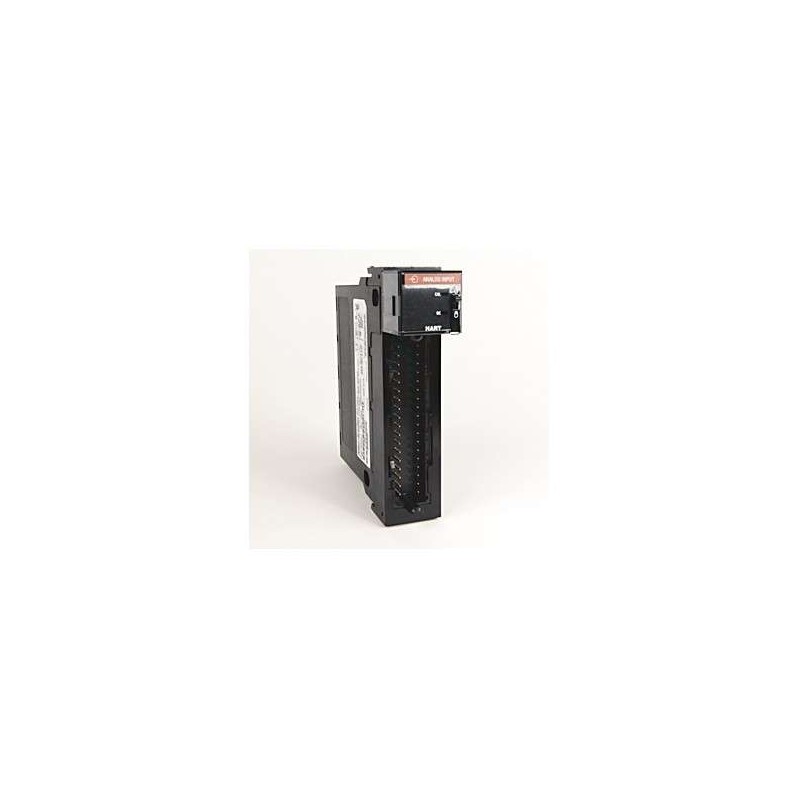

1756-IF16H Allen-Bradley

Series#: AllenBradley

Product Details

1756-IF16H – High-density analog input module for Allen-Bradley ControlLogix systems.
16 isolated differential analog inputs with 16-bit resolution for precise signal acquisition.
Supports multiple signal types: 0-10V, ±10V, 0-20mA, 4-20mA, and thermocouple (J, K, T, E, N, R, S, B).
Built-in channel-to-channel isolation (500V DC) for noise immunity in harsh industrial environments.
Compatible with ControlLogix 1756 backplane and RSLogix 5000/Studio 5000 software.
High-speed scanning at 10 ms per module for real-time process control.
100% Brand New & Original, securely packed and ready for reliable global shipping.

Specification

The Allen-Bradley 1756-IF16H is a high-performance analog input module designed for demanding industrial automation applications within the ControlLogix platform. This module features 16 isolated differential inputs, each with 16-bit resolution, ensuring accurate and reliable data acquisition from sensors, transmitters, and thermocouples. Its robust channel-to-channel isolation (500V DC) minimizes electrical noise and ground loop interference, making it ideal for process control, power generation, and oil and gas environments. The module supports multiple signal ranges including voltage and current inputs, and is fully compatible with standard ControlLogix chassis and Studio 5000 engineering software. With a fast scan rate of 10 ms per module, the 1756-IF16H delivers real-time performance for critical loops.

Parameter	Specification
Model	1756-IF16H
Module Type	Analog Input Module
Number of Inputs	16 (differential, isolated)
Input Resolution	16 bits
Input Signal Ranges	0-10V, ±10V, 0-20mA, 4-20mA (voltage/current modes)
Thermocouple Support	J, K, T, E, N, R, S, B (cold junction compensation included)
Isolation	500V DC (channel-to-channel)
Scan Rate	10 ms (all channels enabled)
Update Rate	Configurable per channel (0.1 ms to 500 ms)
Accuracy	±0.1% of full scale (typical at 25°C)
Input Impedance	Voltage: 1 MΩ; Current: 250 Ω
Common Mode Rejection	100 dB at 50/60 Hz
Power Consumption	1.0 W (from backplane)
Backplane Current	150 mA at 5.1V DC; 10 mA at 24V DC
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Humidity	5% to 95% non-condensing
Certifications	CE, UL, CSA, ATEX (Zone 2)
Compatible Chassis	1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17
Software	RSLogix 5000, Studio 5000 (v20 or later)
Dimensions (H x W x D)	144 mm x 35 mm x 105 mm (5.67 in x 1.38 in x 4.13 in)
Weight	0.23 kg (0.51 lb)
