1756-IF6I Allen-Bradley

Series#: AllenBradley

Product Details

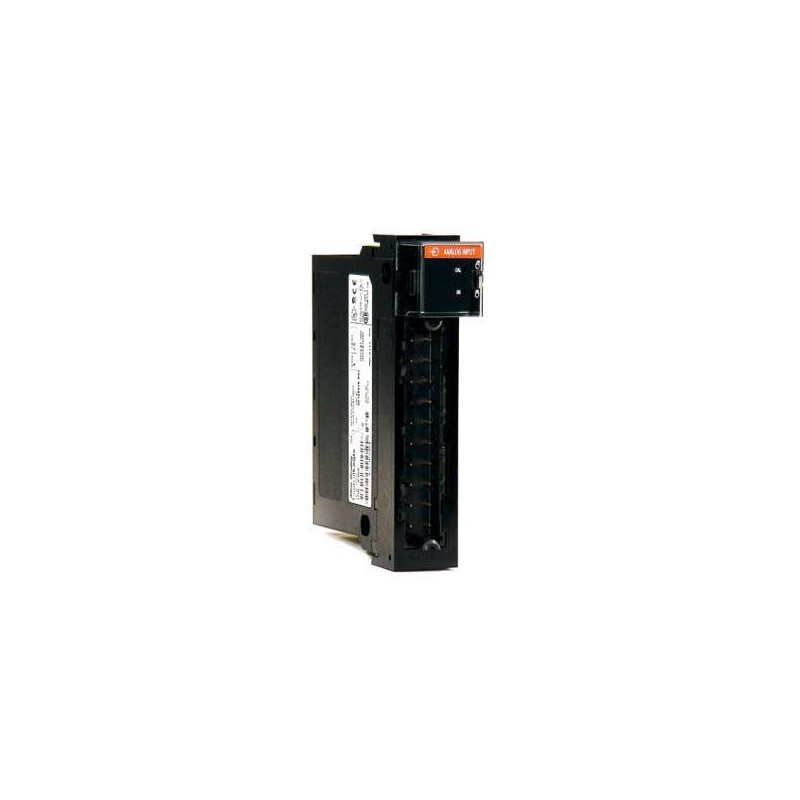

Model: 1756-IF6I ALLEN-BRADLEY — High-density analog input module for ControlLogix systems.
Six isolated differential analog input channels with 16-bit resolution for precise signal acquisition.
Supports multiple input types: ±10V, ±5V, ±2.5V, 0-10V, 0-5V, and 4-20mA (with external resistor).
Built-in channel-to-channel isolation (250V continuous) for noise immunity and safety in harsh environments.
Hot-swappable under ControlLogix backplane with redundant power support for maximum uptime.
Diagnostic LEDs for channel status, fault detection, and module health monitoring.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The ALLEN-BRADLEY 1756-IF6I is a high-performance analog input module engineered for demanding industrial automation applications within the Rockwell Automation ControlLogix platform. This module features six isolated differential input channels, each providing 16-bit resolution and selectable voltage or current ranges, making it ideal for precise measurement of sensors, transmitters, and process signals. With galvanic isolation between channels and the backplane, the 1756-IF6I ensures reliable data acquisition even in electrically noisy environments such as power generation, oil and gas, or heavy manufacturing. Its hot-swappable design and compatibility with redundant power supplies allow for continuous operation without system downtime. The module includes comprehensive diagnostic capabilities, including over-range, under-range, and open-circuit detection, all accessible via the ControlLogix backplane for seamless integration into your control strategy.

Parameter	Specification
Part Number	1756-IF6I
Module Type	Analog Input Module
Number of Channels	6 (isolated differential)
Input Resolution	16 bits
Voltage Input Ranges	±10V, ±5V, ±2.5V, 0-10V, 0-5V
Current Input Ranges	4-20mA (requires external 250Ω resistor)
Isolation	250V continuous, channel-to-channel and channel-to-backplane
Input Impedance	Voltage: >1 MΩ; Current: 250Ω (external)
Common Mode Rejection Ratio (CMRR)	>90 dB Standard Models 60 Hz
Normal Mode Rejection (NMR)	>60 dB Standard Models 60 Hz
Update Rate	Selectable: 10 ms to 500 ms per channel
Accuracy	±0.1% of full scale at 25°C
Temperature Drift	±50 ppm/°C
Backplane Current Draw	5.1V: 150 mA; 24V: 3 mA
Power Dissipation	4.5 W maximum
Operating Temperature	0°C to +60°C (32°F to +140°F)
Storage Temperature	-40°C to +85°C (-40°F to +185°F)
Relative Humidity	5% to 95% non-condensing
Indicators	Channel status (green/red), module status (green/red), fault LED
Module Location	ControlLogix chassis (1756-A4/A7/A10/A13/A17)
Compatible Software	RSLogix 5000, Studio 5000 Logix Designer (v20 or later)
Certifications	UL, CE, C-Tick, ATEX (Zone 2), Class I Division 2
Weight	Approximately 0.35 kg (0.77 lb)
Shipping Dimensions	10 cm x 8 cm x 6 cm (3.94 in x 3.15 in x 2.36 in)
