1756-OX8I Allen-Bradley

Series#: AllenBradley

Product Details

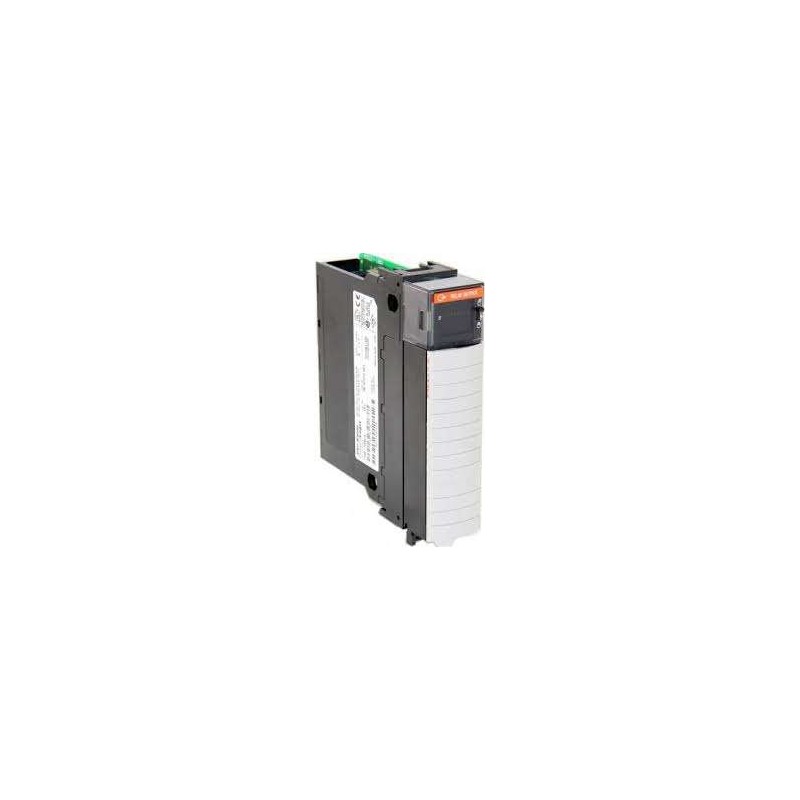

1756-OX8I – High-Density Isolated AC Output Module for Allen-Bradley ControlLogix Systems.
Provides 8 individually isolated outputs, rated at 24-140V AC/DC, 2A per point, for reliable switching in harsh industrial environments.
Built-in optical isolation for each channel, protecting backplane and CPU from electrical transients and ground loops.
Supports both AC and DC control signals, making it versatile for valve, relay, and motor starter applications.
Hot-swappable design under ControlLogix chassis, minimizing downtime during maintenance or expansion.
Complies with UL, CE, and CSA standards for global industrial automation projects.
Guaranteed 100% Original factory condition, offering fast and secure worldwide delivery.

Specification

The 1756-OX8I is a premium isolated AC output module within the Allen-Bradley ControlLogix family, engineered for demanding applications requiring robust signal isolation and high channel density. Each of the 8 output points is optically isolated from the backplane and from each other, ensuring superior noise immunity and protecting the controller from voltage spikes. This module is ideal for switching solenoids, contactors, indicators, and small motors in environments where electrical isolation is critical. The 1756-OX8I supports a wide voltage range of 24-140V AC/DC per channel, with a continuous current rating of 2A (up to 10A per module total). It features a screw-type terminal block for secure wiring and is fully compatible with all ControlLogix chassis and controllers. For reliability, it includes diagnostic indicators for each channel and is designed for hot-swappable operation without powering down the system.

Specification	Details
Product Type	Isolated AC/DC Output Module
Series	ControlLogix
Part Number	1756-OX8I
Number of Outputs	8 (individually isolated)
Output Voltage Range	24-140V AC/DC
Output Current per Point	2A continuous (resistive load)
Output Current per Module	10A maximum
Isolation Voltage	1500V AC between channels and backplane
Load Type	AC or DC resistive/inductive loads
Switching Frequency	Up to 10 Hz (resistive load)
On-State Voltage Drop	< 2.5V at rated current
Off-State Leakage Current	< 1 mA at 140V AC
Protection	Optical isolation, overcurrent shutdown, thermal protection
Indicators	Green LED per channel (output on), red LED for fault
Terminal Type	Removable screw terminal block (18-14 AWG)
Backplane Current Consumption	5V DC Standard Models 120 mA; 24V DC Standard Models 10 mA
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
Dimensions (H x W x D)	144 mm x 35 mm x 119 mm (5.67 in x 1.38 in x 4.69 in)
Weight	Approximately 0.45 kg (1.0 lb)
Certifications	UL 508, CE, CSA, ATEX (Zone 2) compliant
Warranty	1 year from date of shipment
