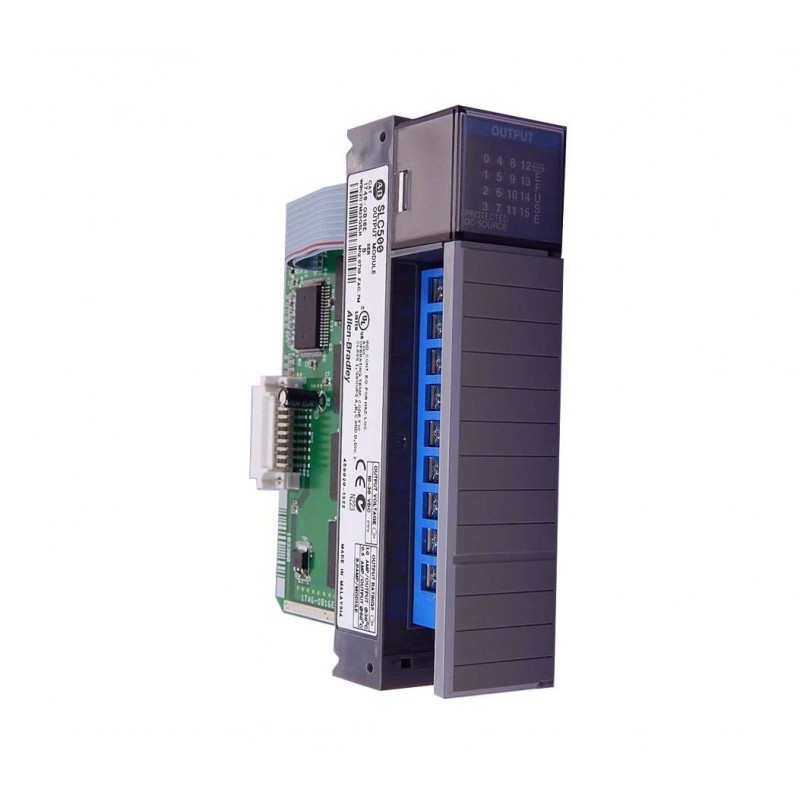

Allen-Bradley 1746-OB16E Digital Output Module

Series#: AllenBradley

Product Details

1746-OB16E – High-performance Sink/Source DC Output Module for Allen-Bradley SLC 500 Systems.
16 discrete output channels with 24V DC operation, ideal for industrial automation control.
Built-in electronic short-circuit protection and fuse-less design for enhanced reliability.
Compact form factor with easy installation in any SLC 500 chassis slot.
Supported by RSLogix 500 and all common industrial networks (DH+, RIO, Ethernet).
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Allen-Bradley 1746-OB16E is a robust 16-point DC output module designed for the SLC 500 programmable controller family. Engineered for demanding industrial environments, this module provides 24V DC sink/source outputs with built-in protection against overcurrent and short circuits. The 1746-OB16E is a direct replacement for older modules and offers seamless integration into existing SLC 500 systems, supporting both 24V DC and 5V DC logic levels. Its compact design and high-density output channels make it ideal for controlling solenoids, relays, and indicator lights in discrete manufacturing, process control, and material handling applications. Each output is optically isolated from the backplane, ensuring noise immunity and reliable operation in electrically noisy environments.

Parameter	Value
Product Type	Discrete DC Output Module
Number of Outputs	16 (sink/source, 24V DC)
Output Voltage Range	20.4 to 26.4V DC
Output Current per Channel	0.5 A (continuous), 3 A (peak, 10 ms)
Total Output Current (Module)	8 A (max, continuous)
Logic Supply Voltage	5V DC (from backplane)
Power Dissipation	4.5 W (max, all outputs on)
Isolation	Optical isolation between outputs and backplane (1500V AC for 1 minute)
Protection	Electronic short-circuit protection, overcurrent shutdown (self-resetting)
Indication	Green LED per output for ON status, red LED for fault
Operating Temperature	0 to 60°C (32 to 140°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Humidity	5% to 95% non-condensing
Vibration Resistance	5 to 500 Hz, 2 g peak
Shock Resistance	15 g peak (11 ms half-sine)
Backplane Current Draw	75 mA (5V DC), 0 mA (24V DC)
Wire Size	14 AWG to 22 AWG (2.5 mm² to 0.34 mm²)
Mounting	Any slot in SLC 500 chassis (1746-A series)
Compatible Processors	SLC 5/01, 5/02, 5/03, 5/04, 5/05
Approvals	UL, cUL, CE, ATEX (Zone 2), RoHS
Weight	0.2 kg (0.44 lb)
Dimensions (H x W x D)	94 x 50 x 87 mm (3.7 x 2.0 x 3.4 in)
