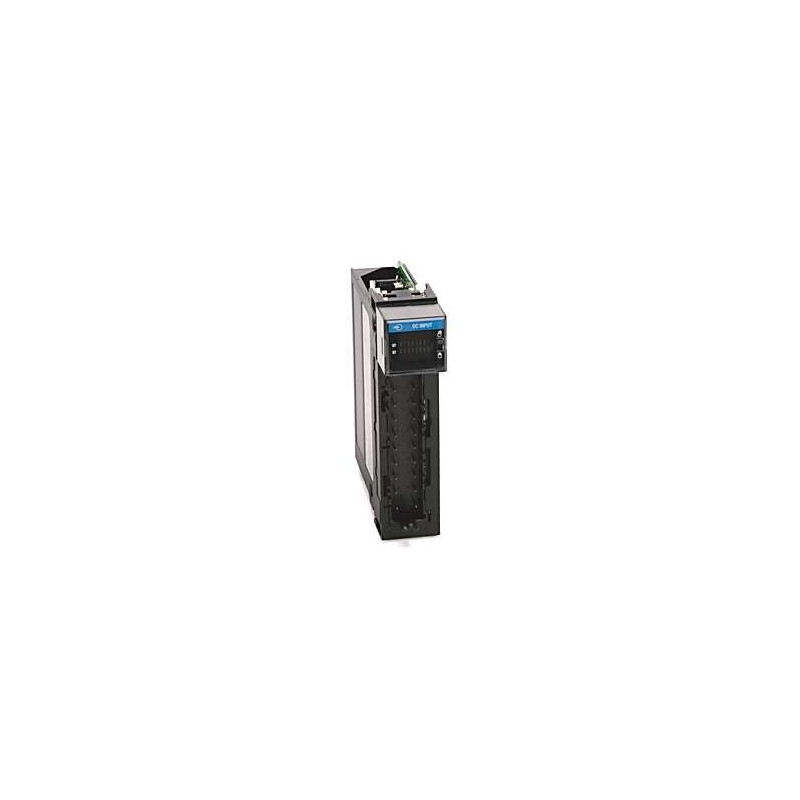

Allen-Bradley 1756-IV16 Digital Input Module

Series#: AllenBradley

Product Details

1756-IV16 – High-density 16-point 24V DC Sinking Input Module for Allen-Bradley ControlLogix systems.
Compact 16-channel design reduces panel space while maximizing I/O density in critical applications.
Supports 10-31.2V DC input range with 4ms off-to-on and 8ms on-to-off filtering for reliable signal capture.
Backplane communication via ControlLogix chassis ensures seamless integration with 1756 series controllers.
Industrial-grade isolation (50V continuous) protects against ground loops and transient surges.
LED status indicators per point for rapid diagnostics and reduced downtime.
100% Original product. We provide efficient, traceable, and secure global shipping solutions.

Specification

The Allen-Bradley 1756-IV16 is a 16-point 24V DC sinking input module engineered for the high-performance ControlLogix platform. Designed for demanding discrete automation tasks, this module captures sensor, limit switch, and pushbutton signals with robust filtering and electrical isolation. Its compact form factor allows dense I/O configurations without compromising reliability, making it ideal for manufacturing lines, process control, and material handling systems. Each input is optically isolated from the backplane, ensuring stable operation in noisy industrial environments. The 1756-IV16 is factory-tested and shipped as a genuine, new component, backed by Rockwell Automation’s quality standards.

Specification	Details
Product Series	1756 ControlLogix I/O
Module Type	16-Point DC Sinking Input Module
Input Voltage Range	10-31.2V DC (24V DC nominal)
Input Current per Point	8 mA at 24V DC (typical)
Input Characteristics	Sinking (NPN) – Current sourcing from field device
Off-State Voltage	0-5V DC
On-State Voltage	10-31.2V DC
Input Filter Time (Off to On)	4 ms (typical)
Input Filter Time (On to Off)	8 ms (typical)
Isolation Voltage	50V DC continuous (input to backplane)
Backplane Current	5 mA at 5.1V DC (typical)
Power Dissipation	1.5W (maximum)
Thermal Dissipation	5.1 BTU/hr (maximum)
Indicators	16 green LED status per point + module status LED
Connector Type	Removable terminal block (1756-TBCH or 1756-TBS6H)
Wiring Category	Class 1, Division 2 (hazardous location approved)
Operating Temperature	0°C to 60°C (32°F to 140°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Relative Humidity	5% to 95% non-condensing
Shock Rating	30g operating, 50g non-operating
Vibration Rating	5g at 10-500 Hz
Dimensions (H x W x D)	144 mm x 35 mm x 105 mm (5.67 in x 1.38 in x 4.13 in)
Weight	0.25 kg (0.55 lb)
Compatible Chassis	1756-A4, A7, A10, A13, A17, A20 (ControlLogix standard chassis)
Certifications	UL, C-UL, CE, ATEX, IECEx (Class I, Div 2)
Warranty	1 year (manufacturer standard)
